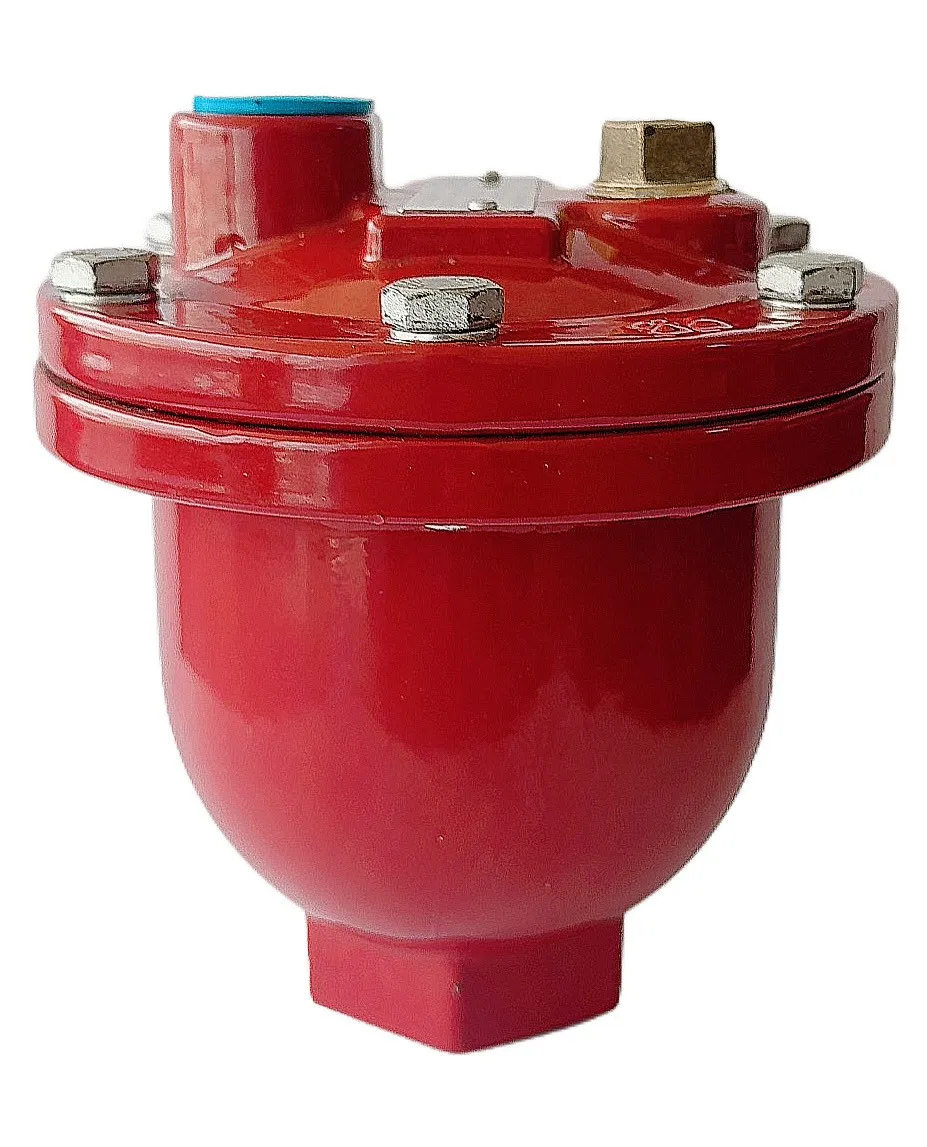

UL Listed Chief Technologies Air Release Valve – size 1 Inch

Features

The small orifice allows air to escape safely during regular pipeline use.
A float linked to the vent controls air release, even when the pipeline is under full pressure.
Designed to handle a working pressure of up to 300 psi.
Certified with UL Listing and FM 1344 Approval for quality and safety.

Specifications

PART	MATERIAL	ASTM SPECIFICATION
BODY	DUCTILE IRON	A536 GRADE 65-45-12
COVER	DUCTILE IRON	A536 GRADE 65-45-12
LEVER FRAME	STAINLESS STEEL	A276 TYPE 304
EXHAUST NOZZLE	STAINLESS STEEL	A276 TYPE 304
NOZZLE SEAT	RUBBER	D2000 EPDM
FLOAT BALL	STAINLESS STEEL	A276 TYPE 304
BALL LOCATOR	STAINLESS STEEL	A276 TYPE 304
FLOAT ARM	STAINLESS STEEL	A276 TYPE 304
BODY/COVER GASKET	RUBBER	D2000 EPDM

More Information

SKU	DB-CF-ARV-22-1″
Usually ships in	2-3 Days
Manufacturer	Chief Technologies
Brand	Chief Fire
Price Unit	Each
Weight	1.300 KG
Is Featured	No
