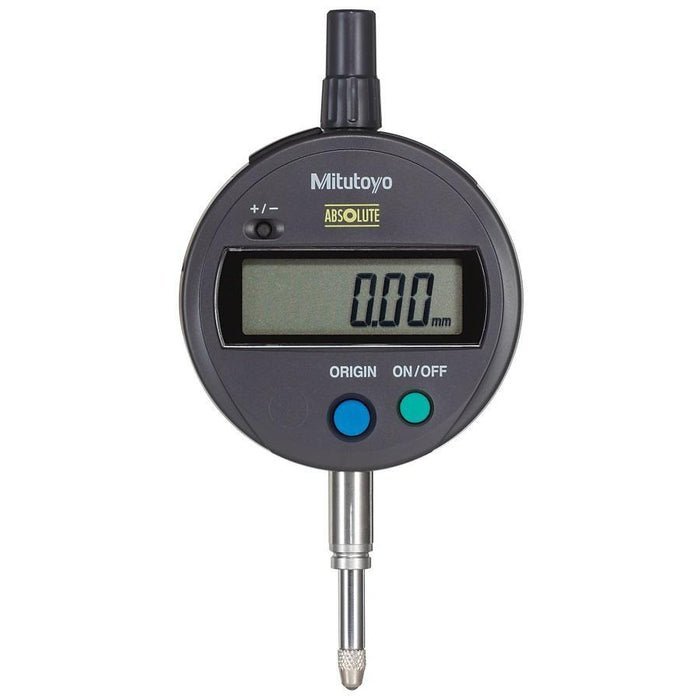

.Mitutoyo 543-781 Digimatic Indicator ID-S1012X, IP42, SPC, 0.01mm X 12.7mm IDS 8mm stem, Lug Back. Employing the ABSOLUTE linear encoder, the Signal ID-S always displays the spindle “Absolute Position” from the origin at power-on. After the initial zero-setting with the ORIGIN button, the repeated absolute positioning is no longer necessary over entire battery life. Unlimited response speed eliminates over-speed errors.

The Mitutoyo 543-781 ID-S ABSOLUTE Digimatic Indicator with Simple Design has the following specifications:

? Model: ID-S1012X
? Range: 0-12.7mm
? Resolution: 0.01mm
? Accuracy: .02mm
? Stem/Shank: 8mm
? Contact Point: M2.5x 0.45 Thread
? Measuring force: 1.5N or less
? Type: ISO/JIS
? Type: Lug Back

Features:

? After the initial zero-setting with the ORIGIN button, the repeated absolute positioning is no longer necessary over the entire battery life.
? Unlimited response speed eliminates over-speed errors.
? SPC data output.
? Similar in size to standard Series 2 dial indicators
? Any part number followed with a “B” means that model has a flat back (no lug)

Technical Data:

? Display: LCD
? Length standard: ABSOLUTE electrostatic capacitance type linear encoder
? Max. response speed: Unlimited
? Measuring force: Refer to the list of specifications
? Battery: SR44 (1 pc.), 938882
? Battery life: Approx. 20,000 hours under normal use

Functions:

? Origin-set
? Zeroset
? Counting direction switching
? Power ON/OFF
? Data output,inch/mm conversion (on inch/metric models only)
? Alarm: Low voltage
? Counting value composition error
? Over-flow error
