? Range: 0-25mm
? Graduations: .001mm
? Base Length: 63.5 x 16mm
? Ratchet stop ensures greater repeatability among users
? 4mm diameter measuring rod
? With measuring rod clamp.
Technical Data
? Accuracy: ?3?m for micrometer head feed
? Graduation: 0.01mm
? Flatness of reference face: 1.3 microns for 63.5mm width base, 2 microns for 101.6mm width base
? Flatness of measuring rod face: 0.3 microns
? Parallelism between reference face and measuring rod face: (4+L/50) microns, L=Max. measuring length (mm)
? Measuring rod diameter: 4mm
Order by 2PM to get delivered next working day! We use 24 hours service with carriers in most cases so that you can get your order delivered on time.
There is £4.99 charge for delivery under £50 Orders. Additional charges will be imposed by our couriers for delivery to remote area, a surcharge may be levied to cover carriage to these areas.
There is £4.99 charge for delivery under £50 Orders. Additional charges will be imposed by our couriers for delivery to remote area, a surcharge may be levied to cover carriage to these areas.

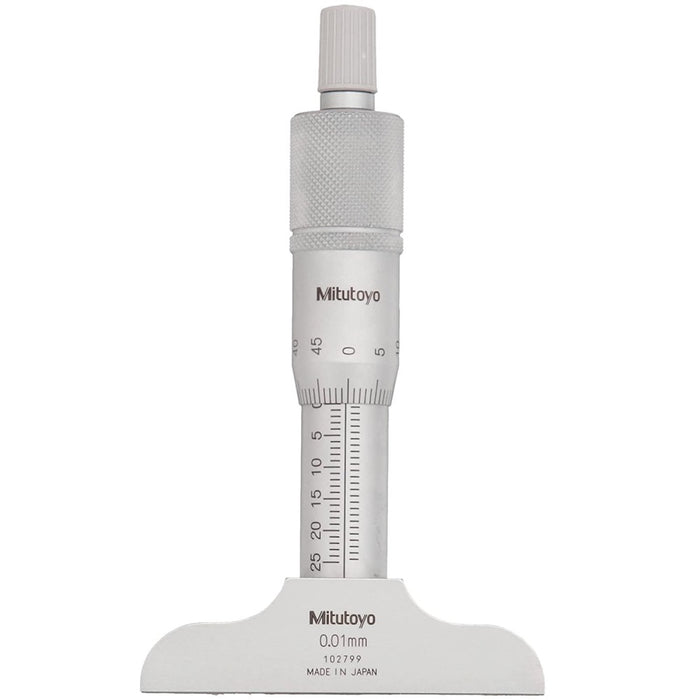

Mitutoyo 128-101 Depth Micrometer, 0-25mm
