Description

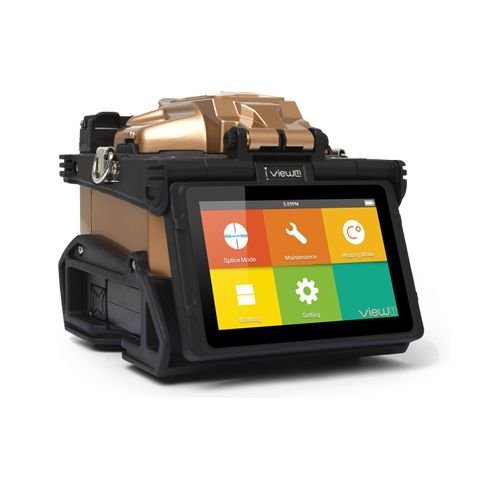

View 1, an active clad-alignment splicer with amazingly compact design, is the most dependable fusion splicer in the market. View 1?s 4.3 inch high-resolution color LCD touch screen with user-friendly intuitive GUI (Graphic User Interface) offers large and clear fiber images to users. By double-tapping the screen, users can Zoom In & Out the image to the world?s highest magnification of 520x. Moreover, the 3 LED lights provide bright splice condition to the users working under dark environments. View 1 is the new industry standard of compact active clad-alignment splicer in the telecommunications industry.

Features

• Active V-Groove Clad Alignment Splicing Method with amazingly compact design
• The World’s Highest Magnification and Resolution
• 4.3″ Color LCD Touch Screen
• User-friendly Smart GUI
• Double Tap to Zoom in & out
• Detachable SOC Holder and Heating Oven
• 3 Bright LEDs and Illuminated Keypads For Dark Environment
• High Capacity Battery
• Ceramic Clamp for Improved durability
• Easy to Replace Electrodes
• Protective Cover
• Harsh Weather Conditions Adaptability
• 3-Year Extended Warranty

?

Specifications

Weight:?1.45kg without battery / 1.70kg with battery

Applicable Fibers:?SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655)

Compatible Fiber/Cable:?0.25~3.0 mm / Indoor Cable

Fiber Count:?Single

Fiber Holder:?Replaceable (Universal: VFH-40, SOC holder: FH-SOC)

Fiber Diameter:?Cladding: 80-150?m

Fiber Cleave Length:?Diameter: 0.125~1 mm / Cleave Length: 8~16 mm

Splice mode:?Max 120 modes

Typical Splice Loss: SM:?0.03dB / MM: 0.02dB / DS: 0.05dB / NZDS: 0.05dB / G.657: 0.03dB (ITU-T Standard)

Return Loss:?>>60dB

Lighting:??3 White LEDs

Splicing Time:?Quick mode: 7 sec / Auto mode: 9 sec

Estimated Splice Loss:?Available

Heat Oven/Heating Time:?Heat Mode: Max 33 modes / typical heating time: 13 sec Applicable

Protection Sleeve Length:?20mm, 30mm, 40mm, 50mm, 60mm

Results Storage:?The last 10,000 splice records and last 2,000 splice result images Tension Test: 1.96~2.25N

Operating Condition:?Operating Altitude: 0~5000m above sea level, 0~95% relative humidity, -10~50?C, Max Wind 15m/s

Storage Condition:?0~95% relative humidity, -40~80?C, Battery: -20~ 30 ?C

Size/ Color:?137H x 132W x 126D mm (including rubber bumper) / champagne gold

Display:?90? bi-directional view, 4.3? color high resolution (800 x 480) display

Fiber View & Magnification:?X, Y, XY, X/Y : 520X Magnification

Power Supply:?AC Input 100-240V, DC Input 9-14V

No. of splice/Heating with Battery:?3800mAh Battery Capacity, Typical 140 times (Splice+Heat)

Electrode Life:?5,500 arcs, can be extended by using an electrode grinder

Terminal:?USB TYPE-C

Operation Methods:?Button / Touch screen

Automatic Calibration:?Automatic arc calibration by air pressure and temperature
