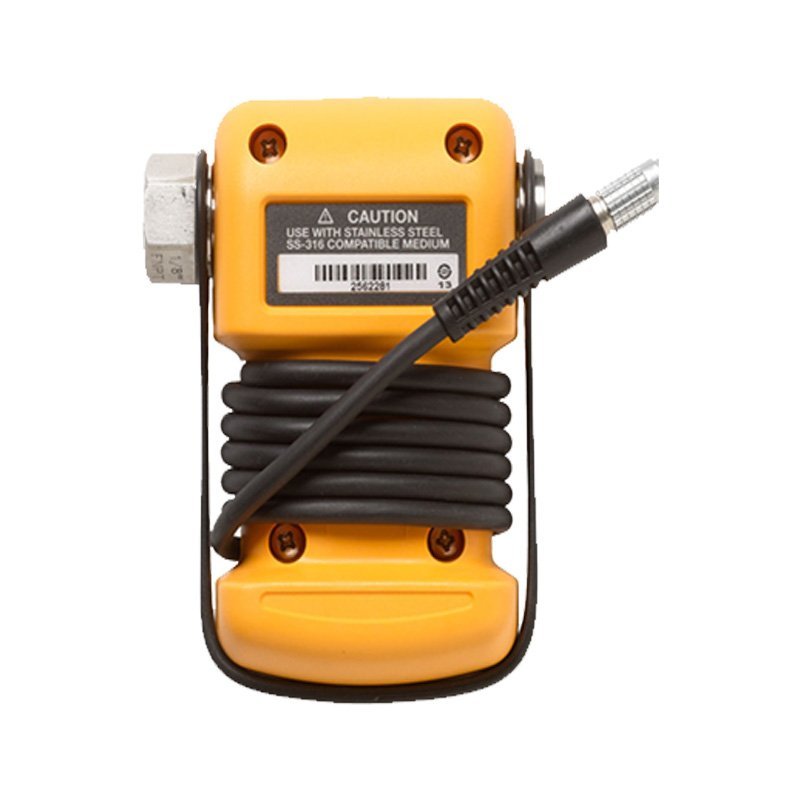

Fluke 750P31 Series Pressure Modules

Fluke 750P31 Offers

Fluke 750P Series Pressure Modules are easy to use. To measure pressure, connect the pressure module to a pressure source or hand pump and then connect the pressure module cable to the calibrator. Apply pressure from the pressure source and it is displayed digitally on the calibrator. At the touch of a button, the pressure may be displayed in up to 11 different engineering units. When used with the 750 Series Documenting Process Calibrators, pressure readings can be date/time stamped and stored electronically for later retrieval. This saves time, eliminates errors, and supports F85compliance with quality standards and regulations.

Features

• Parameter/Range:0 to 10000 psi (0 to 700 bar)
• Burst Rating6:2x
• Hi Side Media2:316 SS
• Lo Side Media2:N/A
• Reference Uncertainty4:? 0.0175%
• Total Uncertainty 1-year (15-35?C):? 0.035%
• Total Uncertainty 1-year1:? 0.045%
• Total Uncertainty 6-month (15-35?C):? 0.03%
• Total Uncertainty 6-month1:? 0.04%

Precision pressure measurement for
75X and 720 series calibrators
The 750P Series Pressure Modules are the ideal pressure
modules to enable gage, differential, and absolute pressure
measurement with Fluke 750 and 740 series DPCs and 725,
726 MPCs to measure pressure.
? 0.025 % reference uncertainty
? 6-month and 1-year specifications
? Temperature-compensated 0 ?C to 50 ?C
? Digital communication to calibrators, no analog
losses or errors
? The broad selection of ranges
? Gage, differential, dual range, absolute and vacuum
measurement models
A complete family of pressure modules
A family of 48 pressure modules covers pressure
calibrations from 0 to 1 in H20 to 10000 psi (2.5 mBar
to 690 bar).
Gage pressure modules have one pressure fitting
and measure the pressure with respect to atmospheric
pressure. Differential pressure modules have two pressure fittings and measure the difference between the
applied pressure on the high fitting versus the low
fitting. Each module is clearly labeled for range, overpressure, and media compatibility. All modules include
NPT, metric (BSP) and M20 adapters.
Quick and easy measurements
Fluke 750P Series Pressure Modules are easy to use.
To measure pressure, connect the pressure module to
a pressure source or hand pump and then connect the
pressure module cable to the calibrator. Apply pressure
from the pressure source and it is displayed digitally
on the calibrator. At the touch of a button, the pressure
may be displayed in up to 11 different engineering
units. When used with the 750 Series Documenting
Process Calibrators, pressure readings can be date/time
stamped and stored electronically for later retrieval.
This saves time, eliminates errors, and supports compliance with quality standards and regulations.
