main product photo

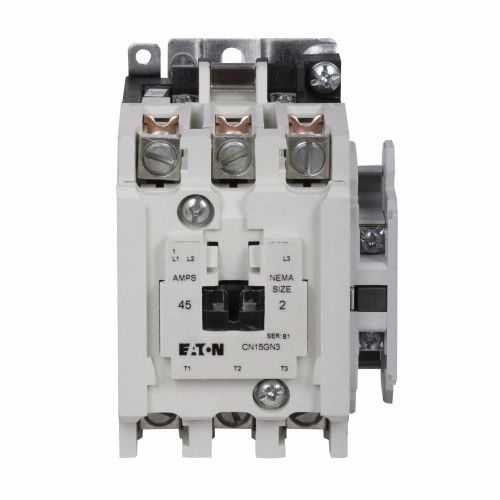

Contactor, non-reversing, S/2 3P, 120 V- CN15GN3AB

In stock
SKU
Contactor, non-reversing, S/2 3P, 120 V- CN15GN3AB
Be the first to review this product
AED 3,500.00
Notify me when the price drops
Ship to AECalculate Shipping Cost
Quick Overview

Eaton Freedom NEMA motor control contactor, NEMA Freedom Series Non-Reversing contactor, 3 hp at 115V, 7-1/2 hp at 230V, 10 hp at 208V, 15 hp at 240V, 25 hp at 480,600V maximum horsepower, 120V/60 Hz, 45A, Four-pole, Size 2

General specifications

Product Name
Eaton Freedom NEMA motor control contactor
Catalog Number
CN15GN3AB
UPC
782113973555
Product Length/Depth
4.44 in
Product Height
5.05 in
Product Width
2.56 in
Product Weight
3.9 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
CSA Certified
UL Listed
Catalog Notes
Common Control

Product specifications


HP rating - max
3 hp at 115V, 7-1/2 hp at 230V, 10 hp at 208V, 15 hp at 240V, 25 hp at 480,600V
Phase
Single-phase, three-phase
Amperage Rating
45A
Size
2



0
Rating:
0% of 100
Reviews
Write Your Own Review
You're reviewing:Contactor, non-reversing, S/2 3P, 120 V- CN15GN3AB
Add to Compare

More Information

More Information
Brand:Eaton
