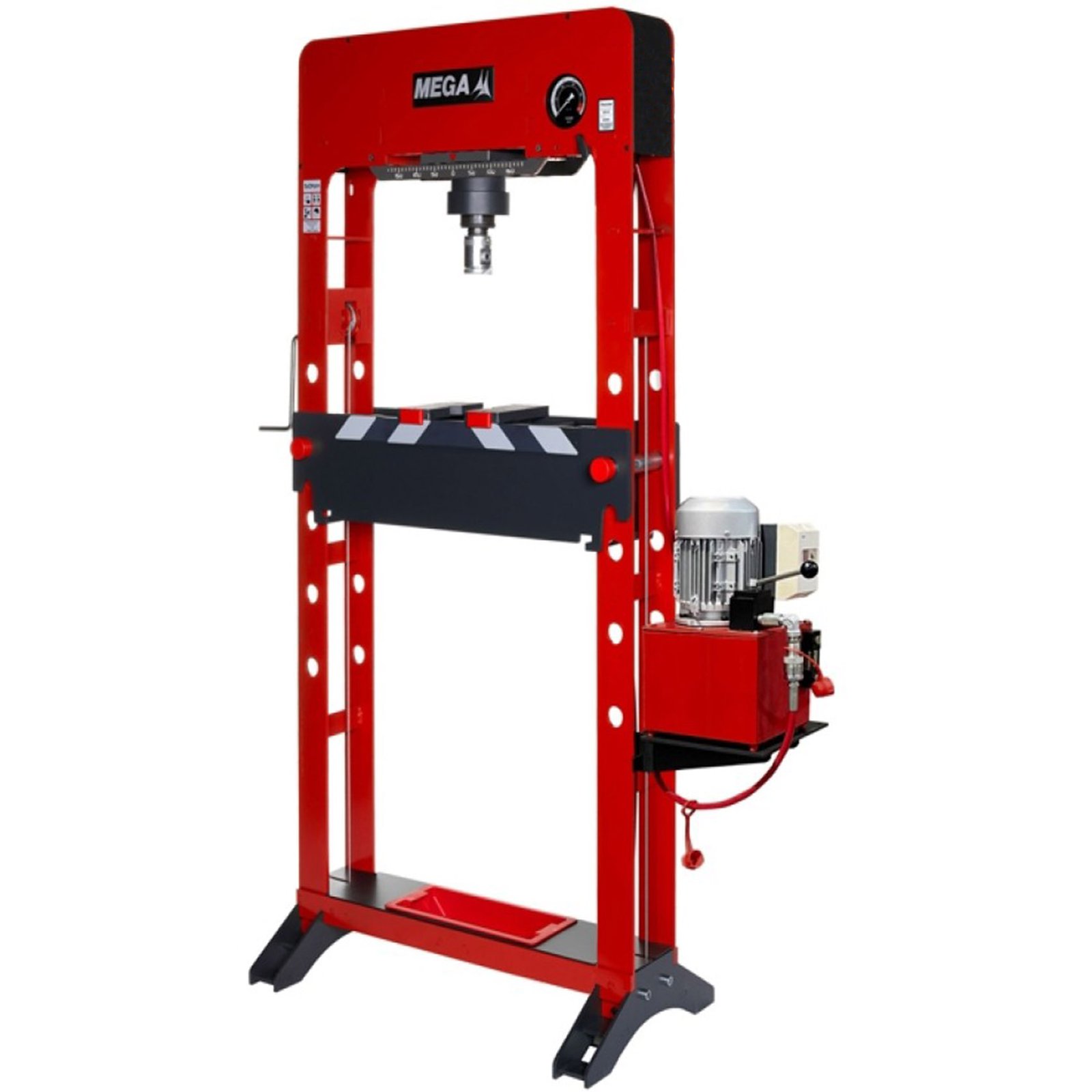

BRAND : MEGA

ITEM NO.: PRD50E

ORIGIN : SPAIN

CAPACITY : 50T

POWER : ELECTRIC

G1 MIN.: 84

G2 MAX.: 770

R1 HYDRAULIC STROKE : 120

R2 EXTENSION STROKE : 75

M LATERAL STROKE : 189

DIMENSIONS : H 1900 X D 890 X W 490

WEIGHT : 232 KG

CHARACTERISTICS :

. COMPACT AND FUNCTIONAL DESIGN THAT INTEGRATES ALL THE HYDRAULIC ELEMENTS WITHIN THE CHASSIS, PROVIDES A SAVING IN THE WORKSHOP SPACE AND ENSURES PROTECTION IN TRANSPORT.

. DIFFERENT PUMP OPTIONS: SINGLE OR TWO SPPED MANUAL, MANUAL-PNEUMATIC AND ELECTRIC PUMPS, DEPENDING ON THE WORKING SPEED REQUIRED.

. SLIDING CYLINDER ALL ALONG THE HEAD ON PRD_D MODELS.

. WINCH TO ASSIST EASY AND QUICK POSITIONING OF THE WORKBENCH.

. PRESSURE GAUGE PROTECTED INSIDE THE FRAME.

. IT IS POSITIONING AT EYE LEVEL TO ASSIST FOR EASY READING.

. SET OF TWO “V” BLOCKS INCLUDED AND LEGS WITH BOLTHOLES FOR FIXING TO THE FLOOR.

. WORKBENCH ADJUSTABLE FOR HEIGHT.

. ELECTRIC PUMP WITH ASYNCRONOUS 4-POLE, 1400 RPM MOTOR.

. MANUAL SCREW EXTENSION FOR QUICK APROACH AND FINE ADJUSTMENT.

. AUTOMATIC SPRING RETURN OF PISTON.

. SAFETY OVERLOAD VALVE

. HYDRAULIC STROKE LIMITATION
