Original price was: 345.00د.إ.320.00د.إCurrent price is: 320.00د.إ. (Tax included)
10 in stock
10 in stock
UNI-T UT89XD True RMS Digital Multimeter Tester AC DC Voltmeter Ammeter 1000V 20A Capacitance Frequency Resistance Measure LED
>>>>>Highlight

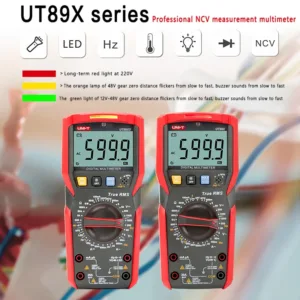

UT89X/UT89XD is a reliable hand-held 35/6 bit digital multimeter with true RMS sine wave measurement.
It can measure Max. 1000V DC/AC voltage, Max. 20A DC/AC current, resistance, capacitance, frequency, diode, hFE, continuity and NCV, quickly distinguishing between neutral and live wires accurately. UT89X can measure temperature and detect neutral and live wires with a test lead. UT89XD can perform LED test. Equipped with audible and visible alarm, flashlight and auto backlight functions, this series can be used in dark environment. It attracts users with its bi-color durable case, modern exterior and multiple functions.
>>>>>Main Features
1)Double injection, durable and ergonomic
2)Audio/visual alarm (applied in voltage/currenVcapacitance/diode/transistor/ continuity/NCV/LED measurement)
3)Up to 1000V voltage measurement
4)Up to 20A current measurement

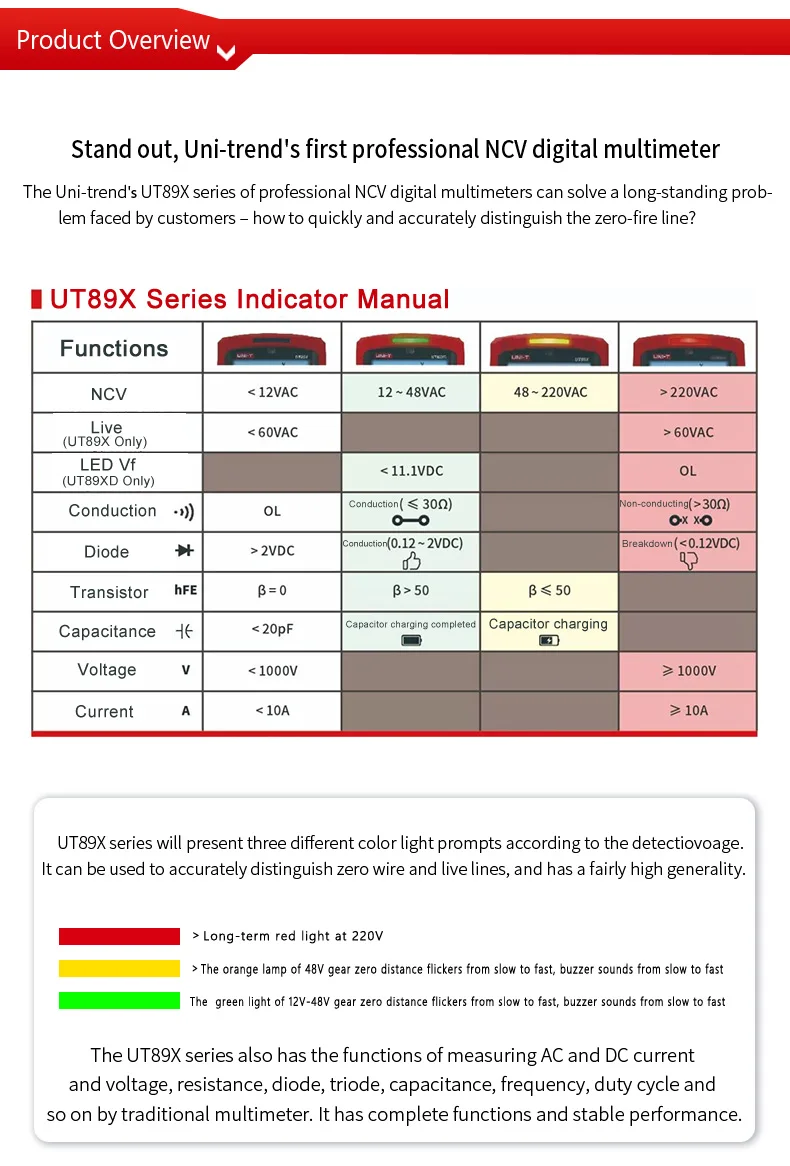

5)NCV measurement with voltage levels can measure voltage down to about AC 12V/50Hz and distinguish live/neutral wires by sensing
6)Up to 100mF capacitance measurement
7)LED measurement can output voltage about 12V/5mA
8)LCD auto backlight and flashlight

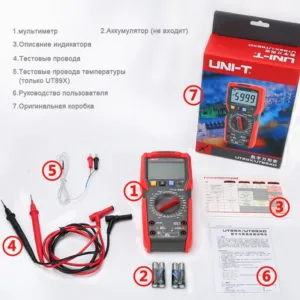

Gifts Include
1 Pair * Multimeter Probes, 1 Pair * Alligator Clips (UT89X/UT89XD)
1 Original Pouch Bag, 1 Pair * Alligator Clips(UT89X/UT89XD with Bag)
>>>>>Technical Data
|
Specifications |
Range |
UT89X |
UT89XD |
|
DC voltage (V) |
600mV/6V/60V/600V/1000V |
±(0.5%+2) |
±(0.5%+2) |
|
AC voltage (V) |
6V/60V/600V/1000V |
±(0.8%+5) |
±(0.8%+5) |
|
DC current (A) |
60μA/60mA/600mA/20A |
±(0.8%+8) |
|
|
60μA/6mA/60mA/600mA/20A |
|
±(0.8%+8) |
|
|
AC current (A) |
60mA/600mA/20A |
±(1%+12) |
±(1%+12) |
|
Resistance (Ω) |
600Ω/6kΩ/60kΩ/ |
±(0.8%+3) |
±(0.8%+3) |
|

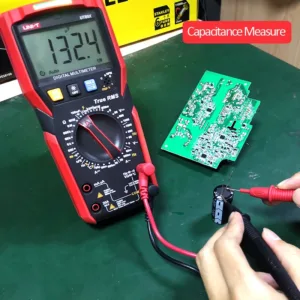

Capacitance (F) |
6nF/60nF/600nF/6μF/60μF/600μF/6mF/60mF/100mF |
±(2.5%+20) |
±(2.5%+20) |
|
Frequency (Hz) |
9.999Hz/9.999MHz |
±(0.1%+4) |
±(0.1%+4) |
|
Duty cycle |
0.1%~99.9% |
±(2%+5) |
±(2%+5) |
|

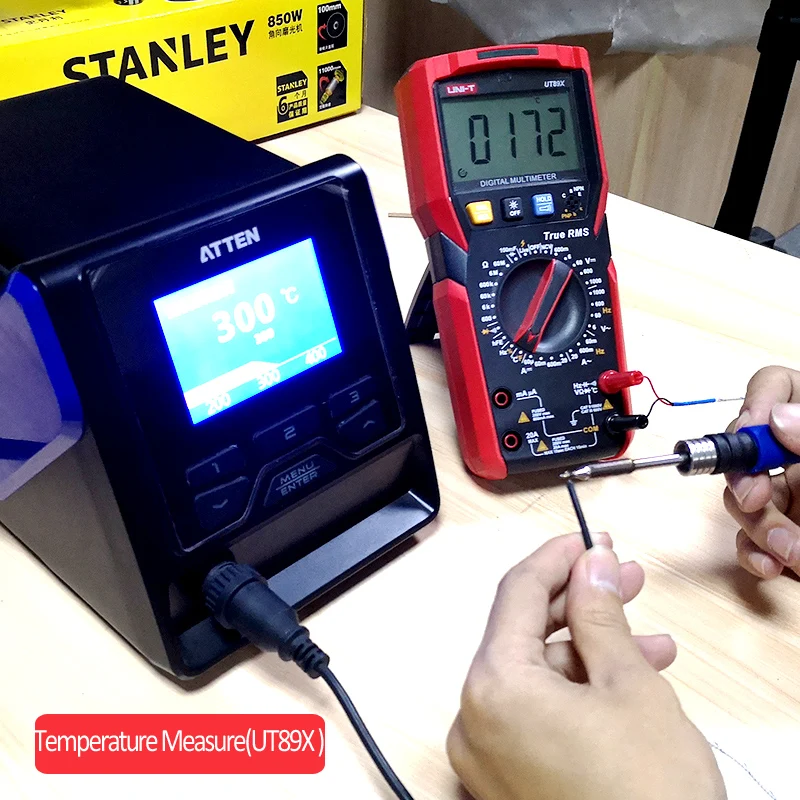

Temperature (℃) |
-40℃~1000℃ |
±(2%+4) |
|
|
Temperature (℉) |
-40℉~1832℉ |
±(2%+8) |
|
|
Features |
|||
|
Display count |
|
6000 |
6000 |
|
Sampling rate |
|
3 times/s |
3 times/s |
|
True RMS |
|
√ |
√ |
|
AC voltage frequency response |
|
45~1000Hz |
45~1000Hz |
|
AC current frequency response |
|
45~1000Hz |
45~1000Hz |
|
Live wire test |
|
√ |
|
|
LED test |
|
|
√ |
|
Audible/visual alarm |
V/A/Cap/Diode/hFE/NCV/Live (UT89X)/LED (UT89XD) |
||
|
Diode/Continuity test |
|
√ |
√ |
|
Transistor hFE |
|
√ |
√ |
|
Dual range NCV test |
|
√ |
√ |
|
Auto power off |
|
√ |
√ |
|
Low battery indication |
|
√ |
√ |
|
Data hold |
|
√ |
√ |
|
Function selection |
SELECT |
√ |
√ |
|
Flashlight |
|
√ |
√ |
|
Auto backlight |
|
√ |
√ |
|
General Characteristics |
|||
|
Power |
1.5V battery (R03) x 4（Battery Not Include (Air transport restrictions) ） |
||
|
Display |
61mm x 36mm |
||
|
Product color |
Red and grey |
||
|
Product net weight |
345g |
||
|
Product size |
189mm x 89mm x 53mm |
||
|
Standard accessories |
Test lead, k-type temperature probe (UT89X) |
||
>>>>>Picture Show
>>>>>Feedback Show
>>>>>About Us
We are one of the largest agents of UNI-T.
-We provide LIFETIME technical support
-All of our products are official authorised original UNI-T
-7*16h online after-sale support team to provide completely customer service
-We will choose the most suitable shipping method which will minimize shipping time
>>>>>Buyer Notice
Maintenance
We provide 3 months free maintenance with lifetime technical support.
The buyer should return the product in the original conditions to us. If any part is required to be replaced, the buyer should also pay for the costs of the parts to be replaced.
Before returning the items, please confirm the return address and the logistics method with us. After you give the items to the logistic company, please send us the tracking number. As soon as we receive the items, we will repair or exchange them ASAP.
Special Demand
If you have any special demands, please leave a message to us in your order.
Feedback
If you are not satisfied with our products or service, please feel free to contact us, we will try our best to solve your problem!
Please do not leave negative feedback without any communication. Thanks for your understanding in advance!
Any problems please feel free to contact us.

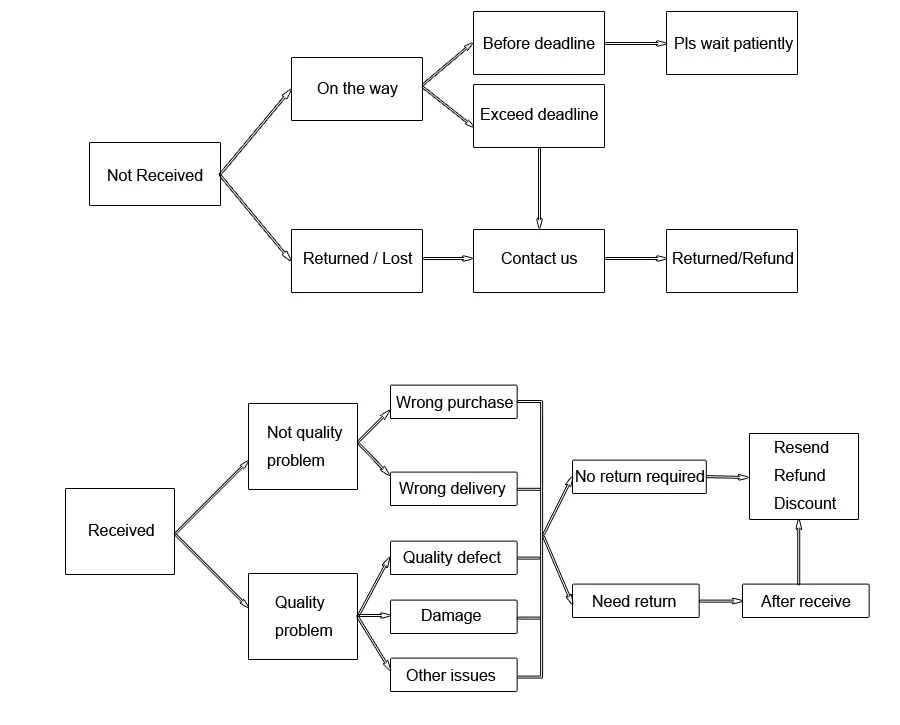

>>>>>Return&Refund
| Brand Name | UNI-T |
|---|---|
| DIY Supplies | Electrical |
| Measuring Resistance Range | 600ohm/6Kohm/60Kohm/600Kohm/6Mohm/60Mohm |
| DC Voltage | 600mV/6V/60V/600V/1000V |
| Operating Mode | Auto/Manual |
| AC Current | 60mA/600mA/20A |
| Operating Temperature | 0 – 40 ℃ |
| Model Number | UT89XD/UT89X |
| Display Type | Digital Display |
| AC Voltage | 6V/60V/600V/1000V |
| Measuring Capacitance Range | 6nF/60nF/600nF/6uF/60uF/600uF/6mF/60mF/100mF |
| Measuring Inductance Range | None |
| DC Current | 60uA/6mA/60mA/600mA/20A |
| Dimensions | 175mm x 81mm x 48.5mm |
| True RMS | Yes |
| Diode/Continuity Test | Yes |
| Frequency | 9.999Hz/9.999MHz |
| Display Digits | 6000 |
| Audible Alarm | Yes |
| Auto Backlight | Yes |
| Flashlight | Yes |
| Color | ture rms digital multimeter |
| Style | digital multimeter |
| Type | multimeter |
| digital multimeter | current voltage tester multimeter |
| multimeter | tester meter |
| uni-t multimeter | uni-t multimeter |
| Brands |
