Original price was: 450.00د.إ.420.00د.إCurrent price is: 420.00د.إ. (Tax included)
1 in stock
1 in stock

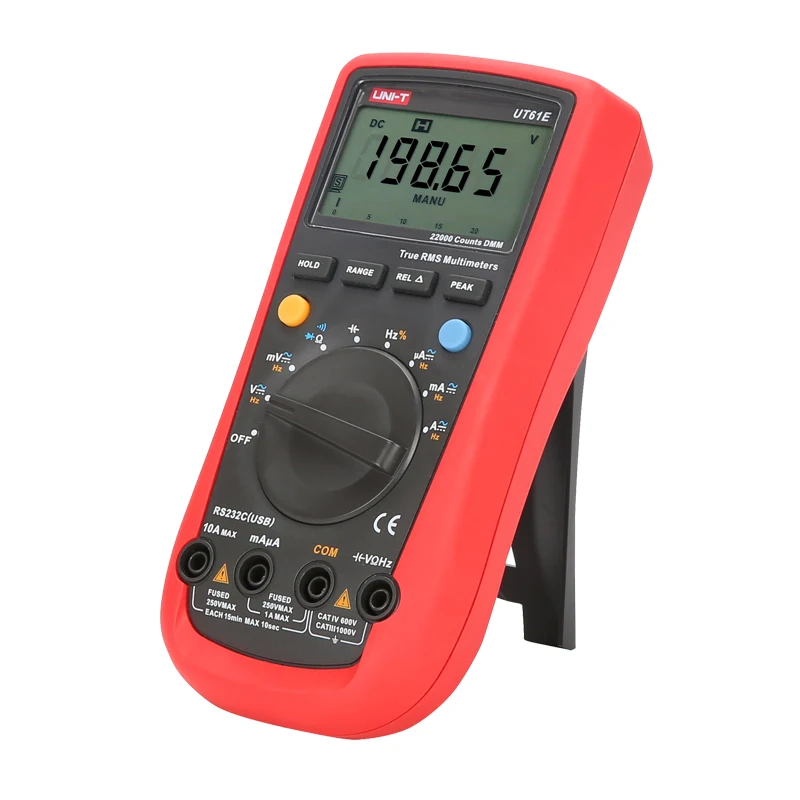

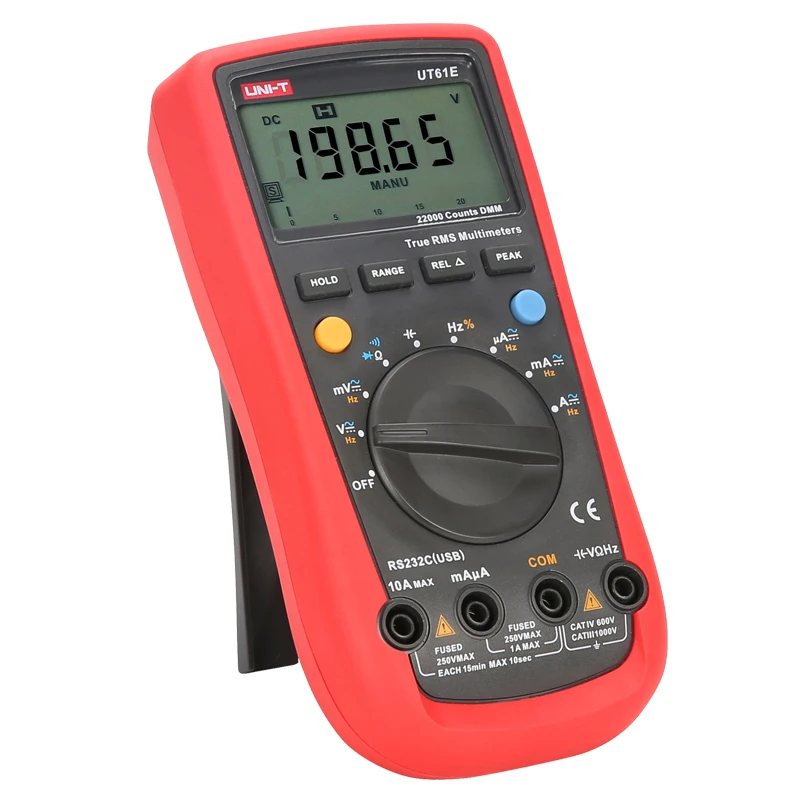

UNI-T UT61E is a True RMS auto range multimeter with 22000 display count, featuring 46 segment analog bar display and 10kHz bandwidth.
>>>>>Highlight
UT61 series complies with CE, ETL, and GS standards. This series is all auto range with selectable True RMS models (UT61D/E). This series has an abundant of features and is combined with high safety rating of CAT IV 600V. It is suitable for advanced electronics and electrical users.

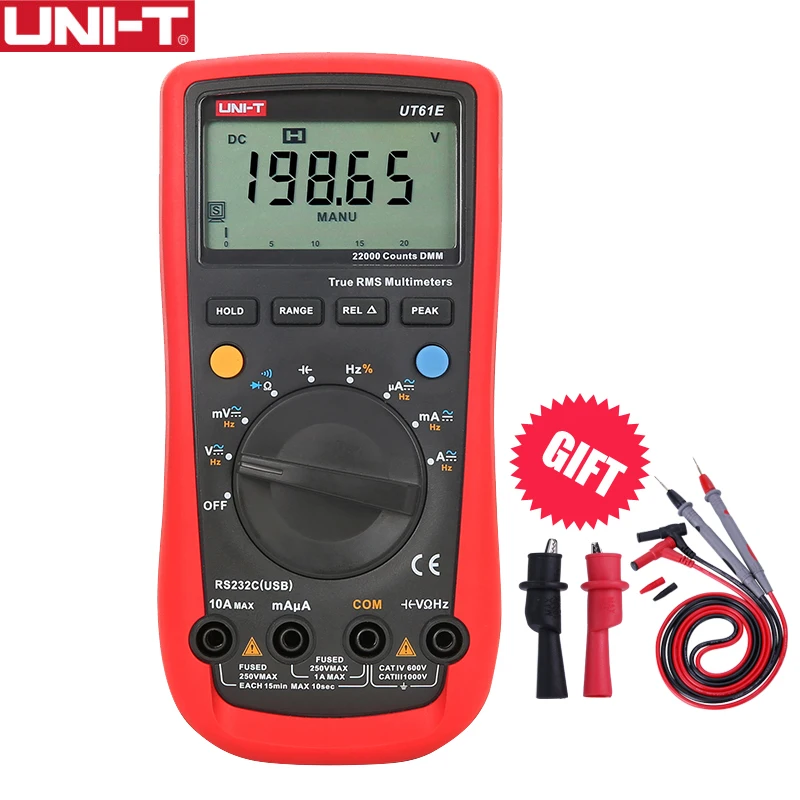

Gifts Include: 1 Pair * Multimeter Probes, 1 Pair * Alligator Clips
>>>>>Technical Data
|
Specifications |
Range |
UT61A |
UT61B |
UT61C |
UT61D |
UT61E |
|
DC voltage (V) |
1000V |
±(0.5%+1) |
±(0.5%+1) |
±(0.5%+1) |
±(0.5%+1) |
±(0.1%+2) |
|
AC voltage (V) |
750V |
±(1%+3) |
±(1%+3) |
±(1%+3) |
±(1%+3) |
±(0.8%+10) |
|
DC current (A) |
10A |
±(1%+2) |
±(1%+2) |
±(1%+3) |
± (1%+3) |
±(0.5%+10) |
|
AC current (A) |
10A |
±(1.2%+5) |
±(1.2%+5) |
±(1.2%+5) |
±(1.2%+5) |
±(0.8%+10) |
|
Resistance (Ω) |
40MΩ |
±(1%+2) |
±(1%+2) |
|
|
|
|
60MΩ |
|
|
±(1%+2) |
±(1%+2) |
|
|
|
220MΩ |
|
|
|
|
±(0.5%+10) |
|
|
Capacitance (F) |
4000μF |
±(3%+5) |
±(3%+5) |
±(3%+5) |
±(3%+5) |
|
|
220mF |
|
|
|
|
±(3%+5) |
|
|
Frequency (Hz) |
10Hz~10MHz |
±(0.1%+4) |
±(0.1%+4) |
±(0.1%+4) |
±(0.1%+4) |
|
|
10Hz~220MHz |
|
|
|
|
±(0.01%+5) |
|
|
Temperature |
-40°C~1000°C |
|
±(1.2%+3) |
±(1.2%+3) |
|
|
|
-40°F~1832°F |
|
±(1.2%+4) |
±(1.2%+4) |
|
|
|
|
Features |
||||||
|
Display count |
|
4000 |
4000 |
6000 |
6000 |
22000 |
|
Bandwidth (Hz) |
|
45Hz~400Hz |
45Hz~400Hz |
45Hz~1kHz |
45Hz~3kHz |
45Hz~10kHz |
|
Duty cycle |
0.1%~99.9% |
√ |
√ |
√ |
√ |
√ |
|
General Characteristics |
||||||
|
Power |
9V battery (6F22)(Battery Not Include) |
|||||
|
Display |
65mm x 43mm |
|||||
|
Product color |
Red and grey |
|||||
|
Product net weight |
370g |
|||||
|
Product size |
180mm x 87mm x 47mm |
|||||
|

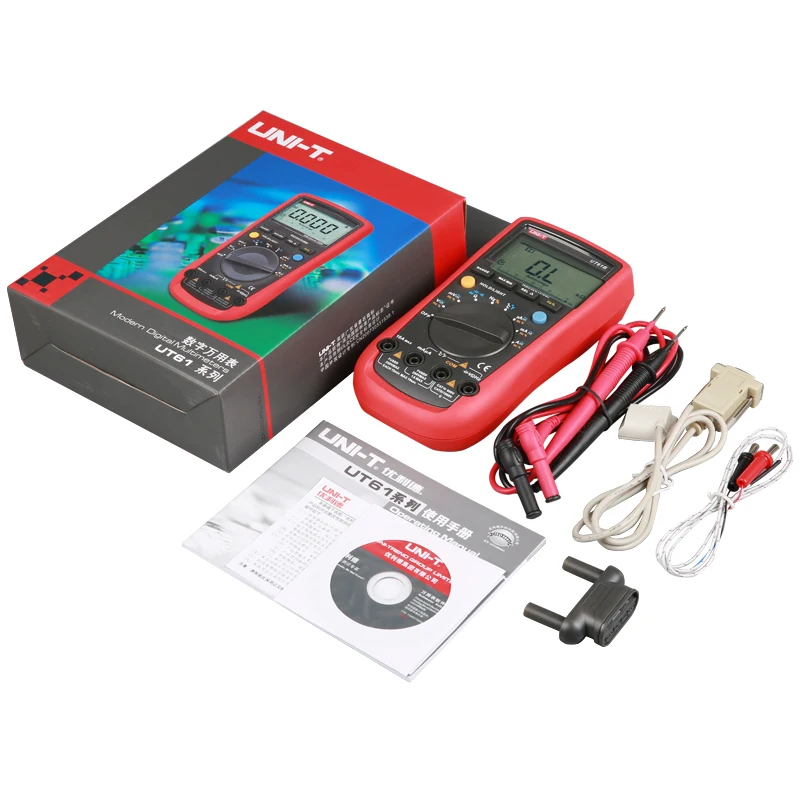

Standard accessories |
Test leads, multi-purpose socket, RS-232 interface cable (UT61B/UT61C/UT61D/UT61E), PC software CD (UT61B/UT61C/UT61D/UT61E), point contact temperature probe (UT61B/UT61C) |
|||||
>>>>>Picture Show
>>>>>About Us
We are one of the largest agents of UNI-T.
-We provide LIFETIME technical support
-All of our products are official authorised original UNI-T
-7*16h online after-sale service team to provide completely customer supporting
-We will choose the most suitable shipping method which will minimize shipping time
>>>>>Buyer Notice
Maintenance
We provide 3 months free maintenance with lifetime technical support.
The buyer should return the product in the original conditions to us. If any part is required to be replaced, the buyer should also pay for the costs of the parts to be replaced.
Before returning the items, please confirm the return address and the logistics method with us. After you give the items to the logistic company, please send us the tracking number. As soon as we receive the items, we will repair or exchange them ASAP.
Special Demand
If you have any special demands, please leave a message to us in your order.
Feedback
If you are not satisfied with our products or service, please feel free to contact us, we will try our best to solve your problem!
Please do not leave negative feedback without any communication. Thanks for your understanding in advance!
Any problems please feel free to contact us.
>>>>>Return&Refund
| Brand Name | UNI-T |
|---|---|
| DIY Supplies | Electrical, Electrical |
| Model Number | UT61A/UT61B/UT61C/UT61D/UT61E |
| AC Voltage | 220mV/2.2V/22V/220V/750V |
| Measuring Capacitance Range | 40nF/400nF/4uF/40uF/400uF/4000uF |
| Dimensions | 180mm X 87mm X 47mm |
| Measuring Resistance Range | 220/2.2k/22k/220k/2.2M/22M/220MOhm |
| Display Type | Digital Display |
| DC Current | 220uA/2200uA/22mA/220mA +/-(0.5%+10) |
| AC Current | 220uA/2200uA/22mA/220mA +/-(0.5%+10) |
| DC Voltage | 220mV/2.2V/22V/220V/1000V |
| Operating Mode | Auto |
| Operating Temperature | 0 – 40 ℃ |
| Measuring Inductance Range | digital multimeter tester |
| Power | 9V Battery (6F22) |
| Frequency | 10Hz-220MHz |
| color | digital multimeter |
| type | multimeter |
| size | ture rms digital multimeter |
| digital multimeter | uni-t multimeter |
