TAC Lineman’s Test Handset 102

Main Functions

Telephone functions

Dialing, Receiving, Redial, Incoming call number display, Mute function, P/T transfer function, High DC voltage indication.

Tester test

AC V & DC V test, Insulation test, Open test, Earth insulation.
Call user & talk
Phone test
Check wire pairs
Monitor function
High AC voltage alarm
Under voltage self-checking

Specifications:

DC V test
Range (V)	0-260
Error	+/-5%
Insulation impedance test
Range (M?): 0~10 Range (M?): 10~30	Error: ??5%?0.1 M? Error: ??10% ?0.5M?
General specifications
Ring distance (Km)	? 1
Open resolution (Km)	? 2
Monitoring resistance (M?)	?1
Temperature (C)	-10~55
Weight (kg)	0.5
Dimension (mm)	232x73x95
Battery	Rechargeable 9V NI-MH battery
Relative humidity	10%~95%
Environment noise (dB)	?60
Atmospheric pressure (Kpa)	86~106

Shipping Info

Order by 2PM to get delivered next working day! We use 24 hours service with carriers in most cases so that you can get your order delivered on time.

There is £4.99 charge for delivery under £50 Orders. Additional charges will be imposed by our couriers for delivery to remote area, a surcharge may be levied to cover carriage to these areas.

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “TAC Lineman’s Test Handset 102”

د.إ435.00

41 people are viewing this product right now

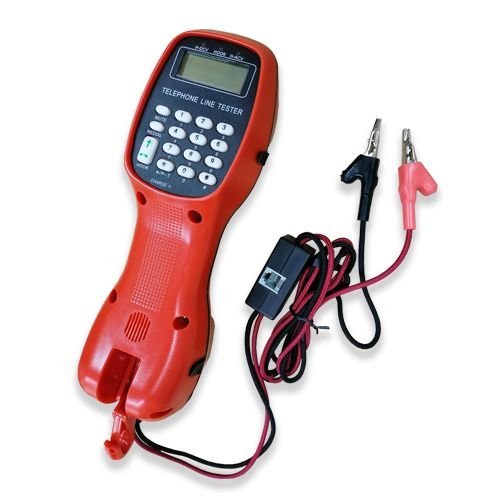

TAC 102 Telephone Line Tester is a portable and intelligent line fault tester which is designed following human engineering theory with the appearance style like barbell, adopting advanced technologies such as intelligent CPU, IC & SMT technology. It integrates various kinds of functions such as telephone and line performance test to be the one. Inner chargeable NI-MH battery can works about one week after full charging; the shell is made of the new type of material and it is solid.

Description

Main Functions

Telephone functions

Dialing, Receiving, Redial, Incoming call number display, Mute function, P/T transfer function, High DC voltage indication.

Tester test

AC V & DC V test, Insulation test, Open test, Earth insulation.
Call user & talk
Phone test
Check wire pairs
Monitor function
High AC voltage alarm
Under voltage self-checking

Specifications:

DC V test
Range (V)	0-260
Error	+/-5%
Insulation impedance test
Range (M?): 0~10 Range (M?): 10~30	Error: ??5%?0.1 M? Error: ??10% ?0.5M?
General specifications
Ring distance (Km)	? 1
Open resolution (Km)	? 2
Monitoring resistance (M?)	?1
Temperature (C)	-10~55
Weight (kg)	0.5
Dimension (mm)	232x73x95
Battery	Rechargeable 9V NI-MH battery
Relative humidity	10%~95%
Environment noise (dB)	?60
Atmospheric pressure (Kpa)	86~106
