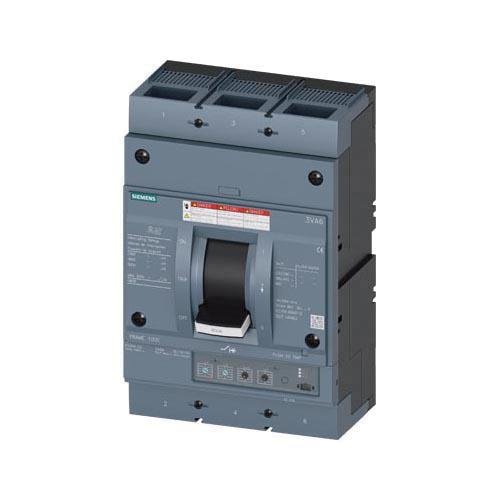

Siemens 800-Amp 3-Pole Molded Case Circuit Breaker With Electronic Trip Unit 3VA65 frame With Medium Low (Class M) Breaking Capacity 3VA6580-5HN32-0AA0

Description:
Sentron Molded Case Circuit Breaker, Low Voltage, 600 VAC, 800 A, 50/60 Hz Frequency, 25 kA at 600 V, 35 kA at 480 V, 100 kA at 240 V Interrupt, 3VA65 800 A Frame, ETU350 Electronic Trip, 1200 to 8000 A Trip, 3 Poles, Line/Load Side/Lug Terminal/Nut Keeper Connection, IP40 Enclosure, -25 to 70 deg C, 8.3 in W x 4.7 in D x 12.6 in H

Features / Benefits

Voltage Rating: 600 VAC
Amperage Rating: 800 A
Connection type: Line/Load Side/Lug Terminal/Nut Keeper
Enclosure Type: IP40
Frame: 3VA65
Frequency: 50/60 Hz
Interrupt: 25 kA at 600 V, 35 kA at 480 V, 100 kA at 240 V
Trip Range: 1200 to 8000 A

UPC: 804766979606

Part Number: 3VA6580-5HN32-0AA0

Status: Stock
