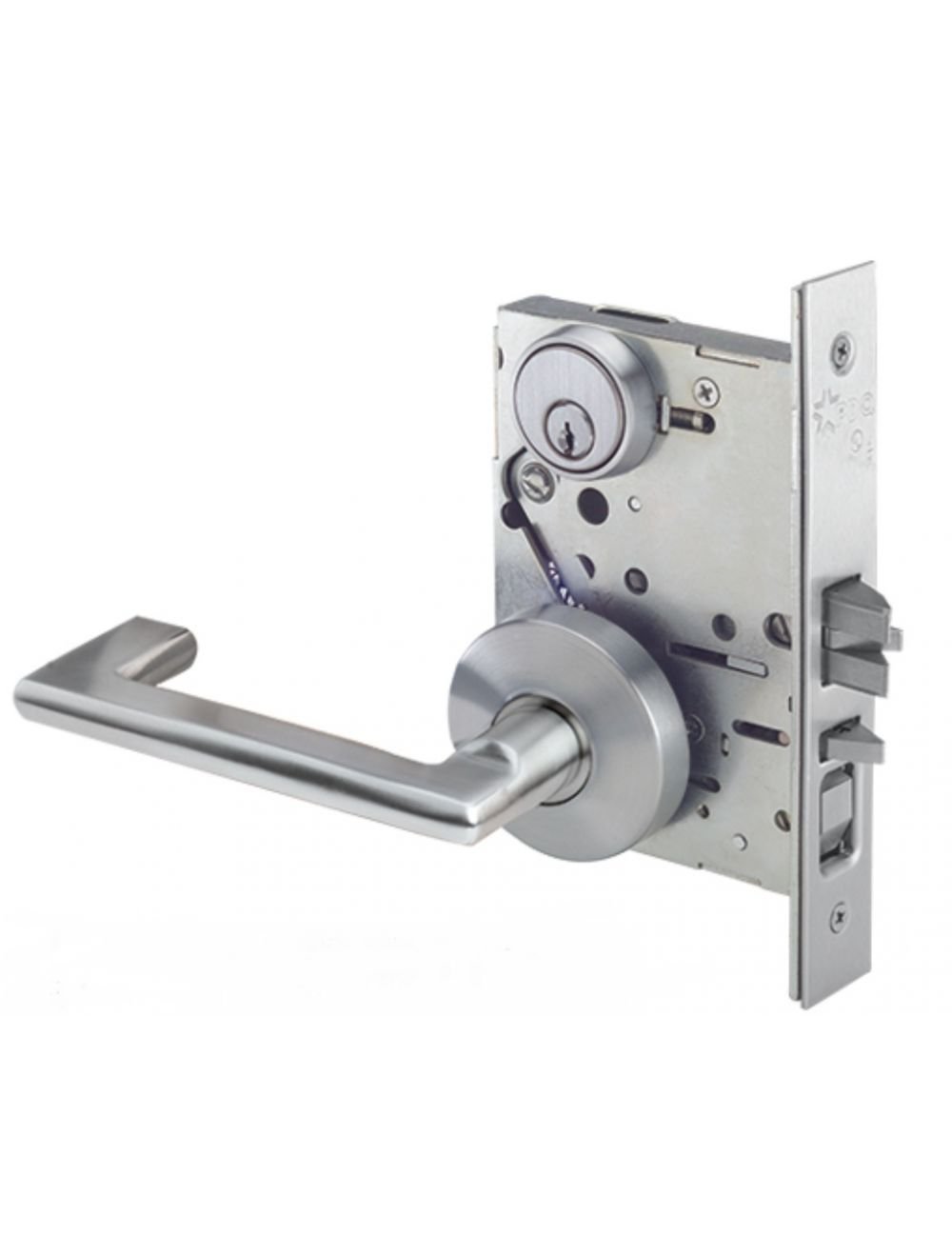

PDQ MR Series Storeroom Mortise Lockset

PDQ MR Series Privacy Mortise Lockset

Mortise Classroom ANSI F05; single cylinder non-deadbolt; 630 finish, PJSJ sectional trim Default cylinder

Features

Latchbolt operated by lever from either side
Emergency coin turn outside unlocks outside lever
Thumbturn inside locks/unlocks outside lever
Closing door unlocks outside lever
Rotating inside lever unlocks outside lever

Specifications

DOOR PREP	Fits standard ANSI/BHMA A156.115 for Mortise Locks.
FOR DOORS	1-3/4? standard, 2? and 2-1/4? special order from factory.
BACKSET	2-3/4?
CASE	12-gauge cold rolled steel mechanism Dichromated for corrosion resistance
ARMOR FRONT	Beveled 1/8? on 2? ?625(US26) & 630 (US32D) use stainless steel as base material, all other finishes use stainless steel or brass as base material
STRIKE	Handed Curved Lip Strike ?625(US26) & 630 (US32D) use stainless steel as base material, all other finishes use stainless steel or brass as base material
LATCHBOLT	3/4? Throw Investment Cast Stainless Steel Anti-friction
DEADBOLT	1? Throw Investment Cast Stainless Steel
HANDING	Most functions field reversible. Specify handing for strikes, consult factory for details
TRIM	F trim – forged brass levers, escutcheons and turns. J & JW trim – stainless steel escutcheon and levers, PHL, Mem, MIA and BSN are solid levers, ORL, DAL and CHI are tube levers. Ball Knobs are wrought.
KEYS	Two (2) per Lock
KEYWAYS	SCC standard (Schlage C Compatible) Also available in keyways of other manufacturers
INTERCHANGEABLE CORE	6 or 7-pin Compatible with Best, Falcon & Arrow Large Format IC Cores compatible with Schlage.
CYLINDER	6 or 7-pin Brass Mortise Cylinder
KEYING	Options: MK, CMK or GMK Zero Bitted (KO), Keyed Different (KD) or Keyed Alike (KA) Can be keyed into existing master key systems
FINISHES	F Series Trim: 626 (US26D) Satin Chrome J and JW Series Trim: 605 (US3) Bright Brass, 606 (US4) Satin Brass, 612 (US10) Satin Bronze, 613 (US10B) Oil Rubbed Bronze, 629(US32) Bright Stainless Steel, 630 (US32D) Satin Stainless Steel. Antimicrobial Coating available on 626 (US26D) & 630 (US32D) for F, J, and J Wide Series.
CERTIFICATIONS, LISTINGS, COMPLIANCES	UL/CUL 10C listed for 3 hrs, for single doors up to 4?0? x 8?0? Certified to ANSI/BHMA 156.13-2005 Operational Grade 1 and Security Grade 1 Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings Meets Federal Specification FF-H-106C
WARRANTY	Lifetime Limited Warranty
