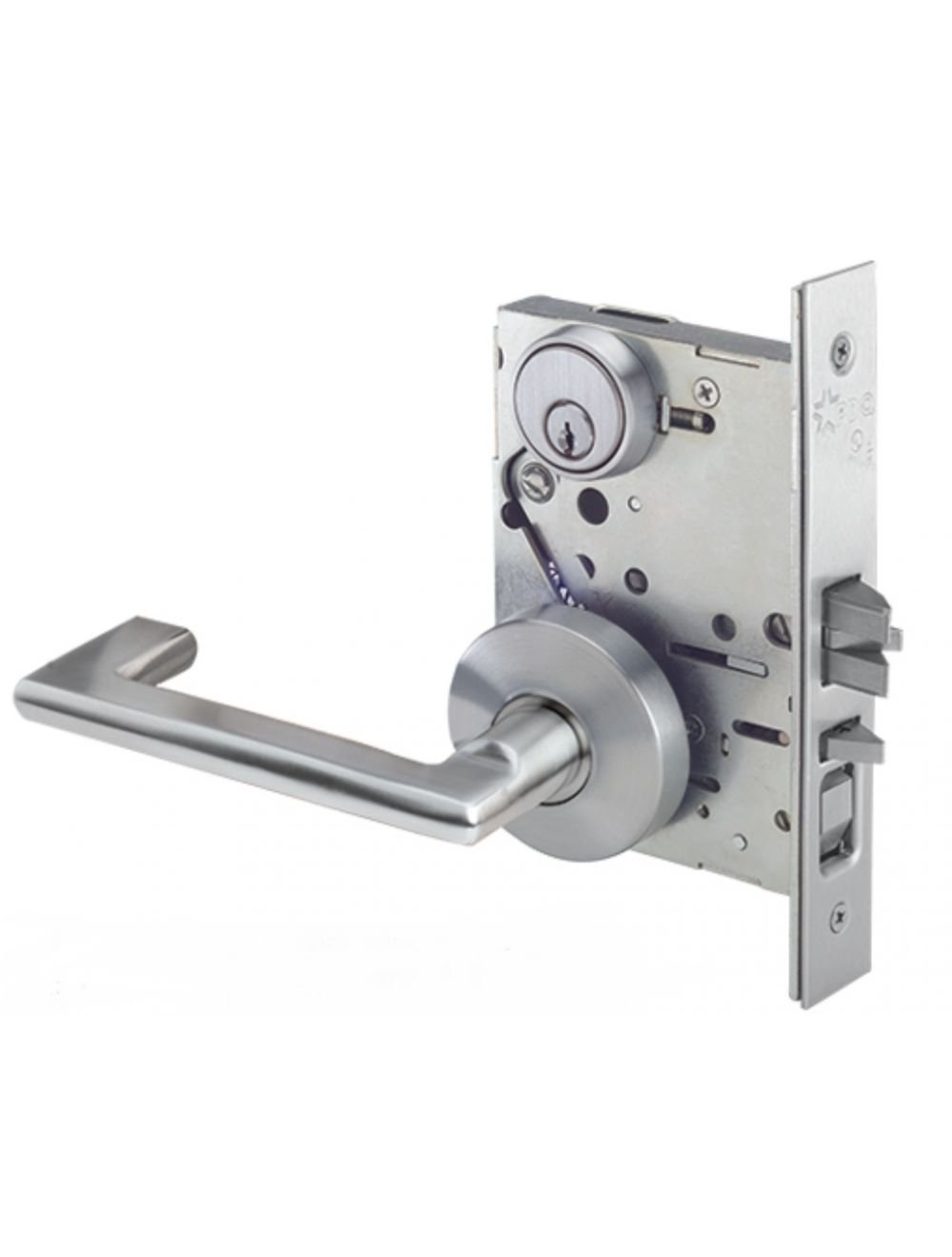

PDQ MR Series Entry Mortise Lockset

PDQ 4 Ball Bearing Hinge, Door Accessories, 4.5″ X 4.5″, Heavy Weight

Hinge, Ball Bearing style, 4-1/2″ X 4-1/2″ size, stainless steel base material, satin stainless steel finish non-removable pin. Non-Removable Pin (NRP) included with all 2 and 4 ball bearing, std and heavy weight hinges. Groove in pin accepts set screw in center barrel.Set screw secured using a 3/32? hex (allen) wrench and is not accessible when door is closed.

Specifications

Type	Full Mortise. Hinge leaves are mortised into the door and frame.
Materials	Stainless Steel with Stainless Steel Pin
Size	4-1/2″ X 4-1/2″
Swagged	Standard Provides 1/16? of clearance between both leaves when the hinge is in the closed position.
Hing Weight	Heavy
Frequency of Use	High
Thickness	.180″ 3 .005″
Packaging	Qty of Hinges Per Individual Carton: 3 ea for Plain, 2 Ball Bearing 4 Ball Bearing and Spring Hinges. 1 ea for Electrified Hinges.
Fasteners	All hinges packed with Machine Screws (12-24 x 1/2? FHMS) and Wood Screws (12 x 1-1/4? FHWS).
Certifications, Listings, Compliances	Conforms with the requirements of NFPA 80-2013, Section 6.4.3.1. Certified to ANSI/BHMA A156.1-2006: – Grade 1, 4 Ball Bearing Heavy Weight (HB): 2,500,000 cycles. – Grade 2, 2 Ball Bearing Standard Weight (BB): 1,500,000 cycles.
Warranty	Five (5) year limited warranty.
