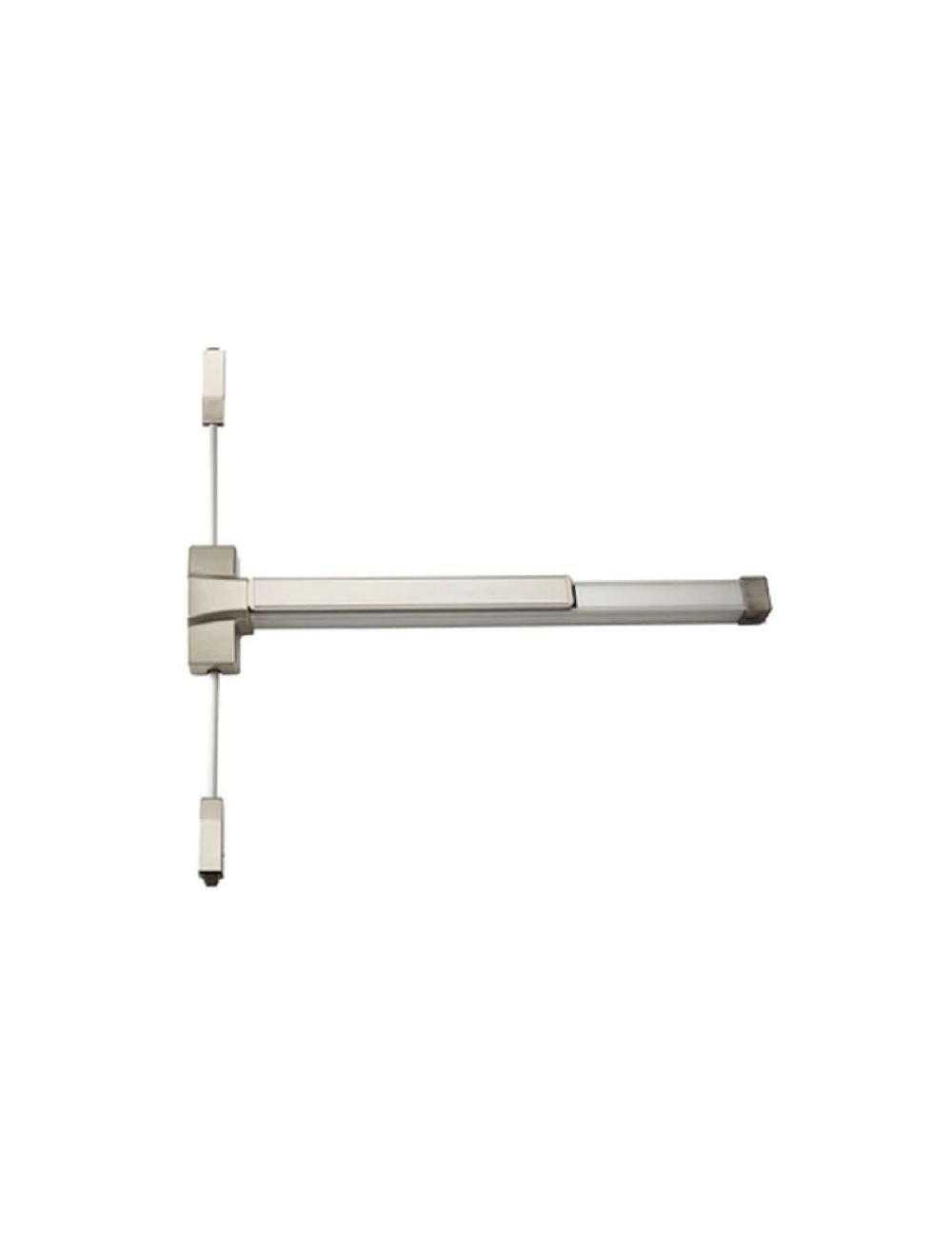

PDQ 6200 Series Wide Stile Surface Vertical Rod Exit Device, Non Fire Rated – 6200V 630F

Free Exchange of products within 30 days

Pickup in 16 Stores international

Premium Brand Items for an affordable price

Services

FAQs

Careers

Affiliate

Description

PDQ 6200 Series Wide Stile Rim Exit Device, Non Fire Rated – 6200R 630F

The PDQ 6200 Series offers superior durability and security in commercial applications while providing compliance with life safety and fire code requirements. The 6200 Series is ideal for stocking distributors as the exit device is universal. The function is easily determined by selecting from the extensive line of available trim options. Units are non-handed to facilitate easy field installation. The 6200 is available in a variety of architectural finishes that will compliment any decor.

Specifications

Chassis	Corrosion resistant plated steel
Rail	Extruded aluminum. Specify 630F for full stainless tactile surfaces (roll formed)
Latch	RIM (R) ? Pullman with dead latching, stainless steel, 3/4? throw
Backset	2-3/4?
Hand	Device is non-handed, most trim is non-handed, all handed trim is field reversible
Dogging	Hex key dogging standard Cylinder dogging optional No dogging on fire listed devices
Minimum Style Width	4-1/4?
Door Thickness	1-3/4? standard, others vary by trim selection
Door Width	Standard for 3 ft doors, option available for doors up to 4 ft width
Finishes	630 ? Satin Stainless Steel
Fasteners	Device supplied with sex nuts, machine screws and wood screws
Certifications, Listings, Compliances	UL 305 listed for ?Panic?, UL listed for ?Fire Exit Hardware? up to 3 hours Certified to ANSI/BHMA A156.3 Grade 1 Meets requirements of the Buy America Act
Warranty	Ten (10) year limited warranty
Electronic Access Control Options	Motorized Latch Retraction and Dogging Fail Secure/Fail Safe Trim Request to Exit/Signal Switches Stand Alone Key Pad Trim Alarms Latch Bolt Monitoring
