PDQ 6200 Series Wide Stile Rim Exit Device, Fire Rated – 6200R F 630F
The PDQ 6200 Series offers superior durability and security in commercial applications while providing compliance with life safety and fire code requirements. The 6200 Series is ideal for stocking distributors as the exit device is universal. The function is easily determined by selecting from the extensive line of available trim options. Units are non-handed to facilitate easy field installation. The 6200 is available in a variety of architectural finishes that will compliment any decor.
Exit, full SS, rim, UL fire listed, no dogging, 3?0? door, 630F finish.
Specifications
| CHASSIS | Corrosion resistant plated steel |
| RAIL | Extruded aluminum. Specify 630F for full stainless tactile surfaces (roll formed) |
| LATCH | RIM (R) ? Pullman with dead latching, stainless steel, 3/4? throw |
| BACKSET | 2-3/4? |
| HAND | Device is non-handed, most trim is non-handed, all handed trim is field reversible |
| DOGGING |
Hex key dogging standard Cylinder dogging optional No dogging on fire listed devices |
| MINIMUM STYLE WIDTH | 4-1/4? |
| DOOR THICKNESS | 1-3/4? standard, others vary by trim selection |
| DOOR WIDTH | Standard for 3 ft doors, option available for doors up to 4 ft width |
| FINISHES | 630 ? Satin Stainless Steel |
| FASTENERS | Device supplied with sex nuts, machine screws and wood screws |
| CERTIFICATIONS, LISTINGS, COMPLIANCES |
UL 305 listed for ?Panic?, UL listed for ?Fire Exit Hardware? up to 3 hours Certified to ANSI/BHMA A156.3 Grade 1 Meets requirements of the Buy America Act |
| WARRANTY | Ten (10) year limited warranty |
| ELECTRONIC ACCESS CONTROL OPTIONS |
Motorized Latch Retraction and Dogging Fail Secure/Fail Safe Trim Request to Exit/Signal Switches Stand Alone Key Pad Trim Alarms Latch Bolt Monitoring |
Order by 2PM to get delivered next working day! We use 24 hours service with carriers in most cases so that you can get your order delivered on time.
There is £4.99 charge for delivery under £50 Orders. Additional charges will be imposed by our couriers for delivery to remote area, a surcharge may be levied to cover carriage to these areas.
There is £4.99 charge for delivery under £50 Orders. Additional charges will be imposed by our couriers for delivery to remote area, a surcharge may be levied to cover carriage to these areas.

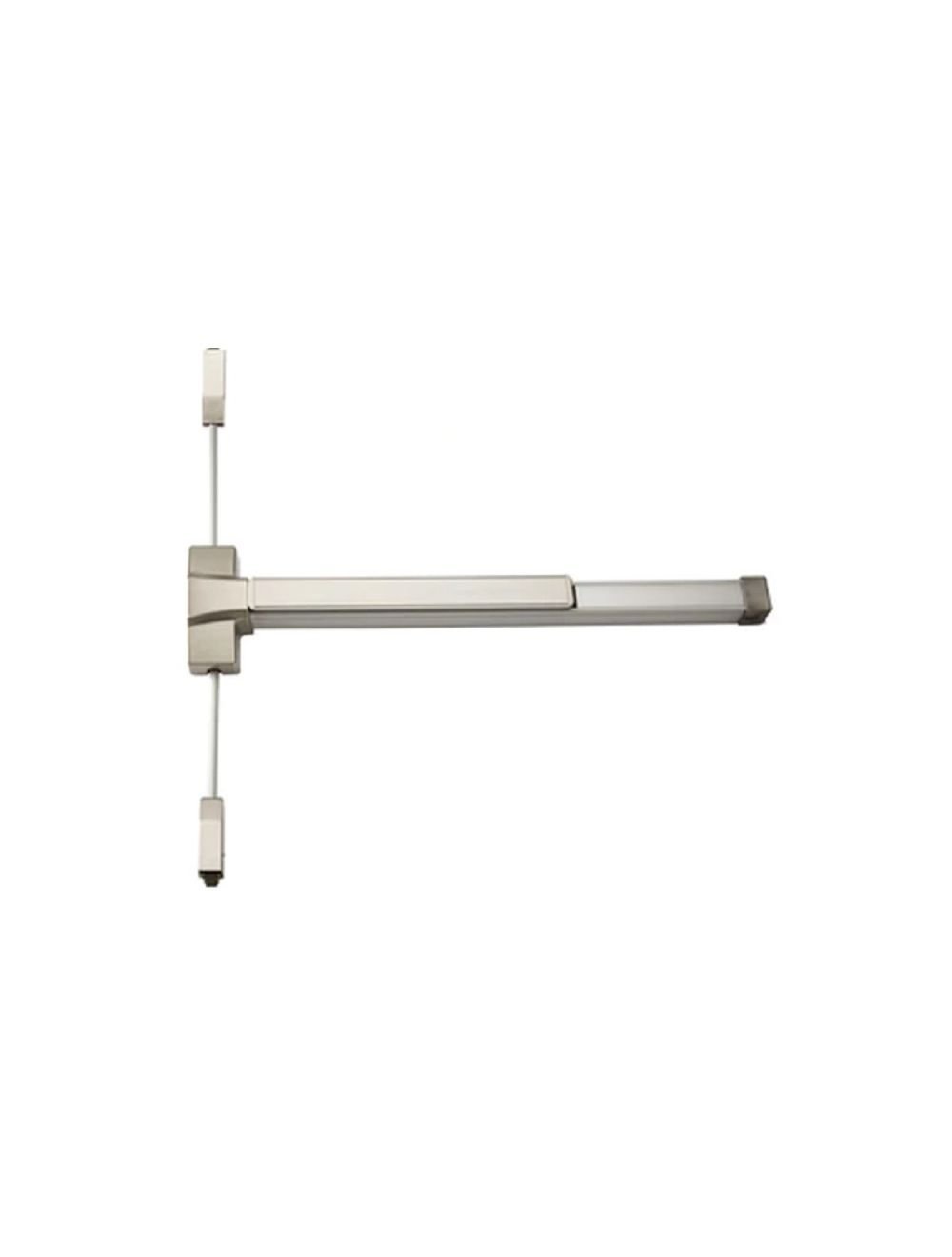

PDQ 6200 Series Wide Stile Surface Vertical Rod Exit Device, Fire Rated – 6200V F 630F
