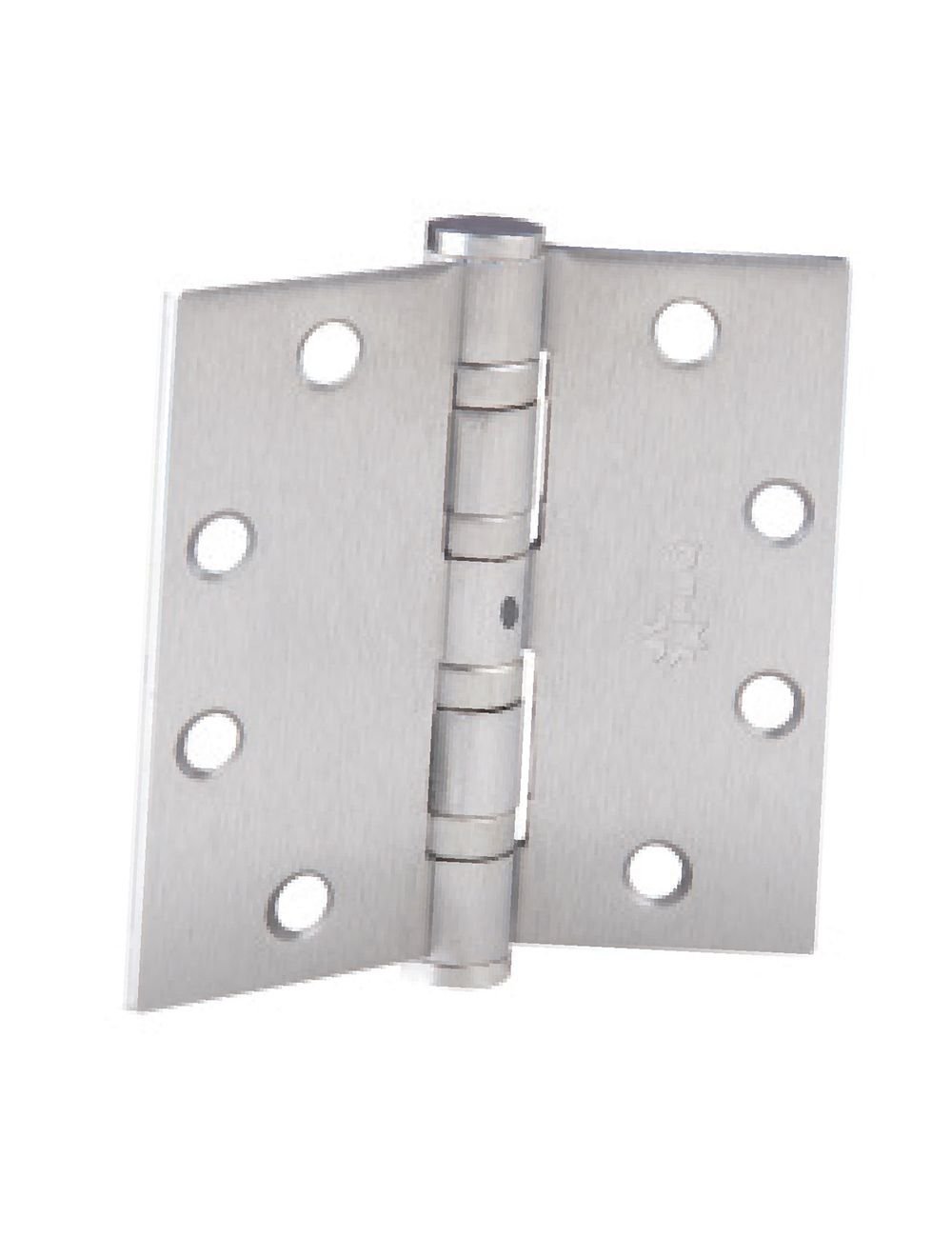

PDQ 4 Ball Bearing Hinge, Door Accessories, 4.5″ X 4.5″, Heavy Weight

Type

 Full Mortise. Hinge leaves are mortised into the door and frame.

Materials

 Stainless Steel with Stainless Steel Pin

Size

 4-1/2″ X 4-1/2″

Swagged

 Standard

 Provides 1/16” of clearance between both leaves when the hinge is in the closed position.

Hing Weight

 Standard

Frequency of Use

 Medium

Thickness

 .134″ 3.005″

Packaging

 Qty of Hinges Per Individual Carton: 3 ea for Plain, 2 Ball Bearing 4 Ball Bearing and Spring Hinges. 1 ea for Electrified Hinges.

Fasteners

 All hinges packed with Machine Screws (12-24 x 1/2” FHMS) and Wood Screws (12 x 1-1/4” FHWS).

Certifications, Listings, Compliances

•  Conforms with the requirements of NFPA 80-2013, Section 6.4.3.1.
•  Certified to ANSI/BHMA A156.1-2006:
     – Grade 1, 4 Ball Bearing Heavy Weight (HB): 2,500,000 cycles.
     – Grade 2, 2 Ball Bearing Standard Weight (BB): 1,500,000 cycles.

Warranty

 Five (5) year limited warranty.
