Mitutoyo 513-415-10E Dial Test Indicator

Description

● Performs easy and accurate measurement of narrow or recessed areas, plus inside and outside diameters that dial indicators cannot access.
● No-clutch structure for automatic reversal of measuring direction.
● One-piece bezel and crystal design with O-ring provide resistance to water and dust.
● The glare-free flat crystal face has a scratch-resistant coating.
● High sensitivity and quick response because of jeweled bearings.
● Standard carbide contact point provide.

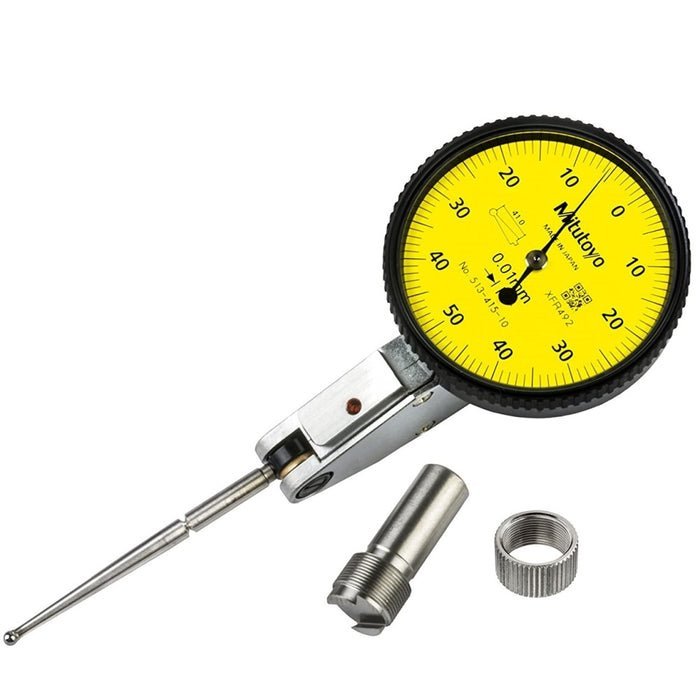

● Basic Set includes test indicator with 2mm Contact Point, knurled clamp ring, and dovetail with 8mm Stem

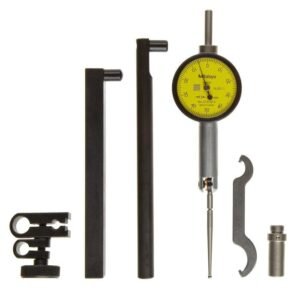

● Full Set includes test indicator with 2mm diameter contact point, 1mm dia. carbide contact point, 3mm dia. carbide contact point, Dovetail with 4mm Stem, Swivel Clamp, and 100mm Holding Bar

The Mitutoyo 513-415-10E Horizontal Basic Set Dial Test Indicator has the following specifications:
● Range: 1mm
● Graduation: 0.01mm
● Accuracy: 10µm
● Dial Reading: 0-50-0
● Measuring Force: 0.2N or less
● Length: 44.5mm
● Anti-magnetic
● Long Contact Point
● Jeweled Bearing
