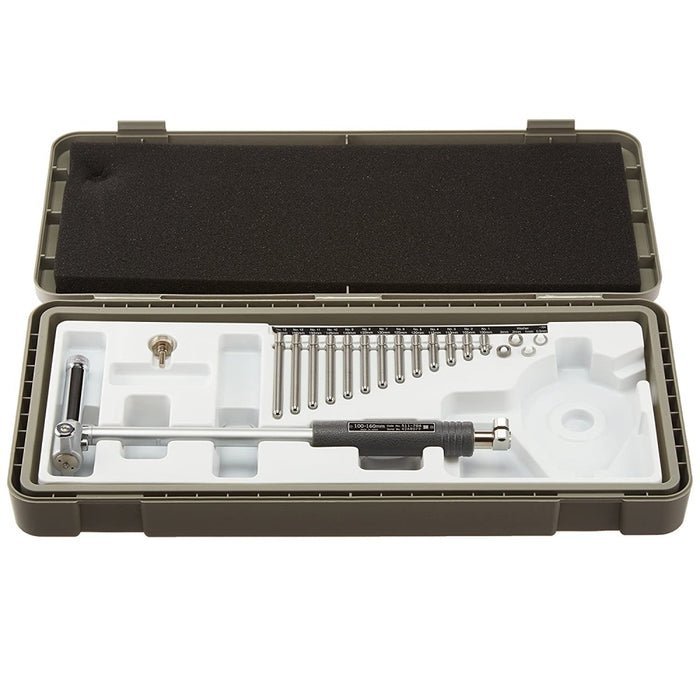

Mitutoyo 511-704 Standard Type Dial Bore Gauge, Range 100-160mm (Without Dial Gauge)

Description

The Mitutoyo 511-704 dial bore gauge has the following specifications:
● Range: 100-160mm
● Graduations: No Indicator Included
● 13 Anvils
● 4 Spacers

Mitutoyo offers a complete selection of Bore Gauges. The 511 series bore gauges come standard with interchangeable anvils and necessary accessories to perform close tolerance ID measurements.
Features:
● Most popular Bore Gauges.
● Carbide-tipped contact points for durability.
● The dial indicator is fully protected by a rugged cover.
● Optional extension rods can be attached for measuring deep holes.

Technical Data:
● Accuracy: 5µm
● Indication stability: 2µm
