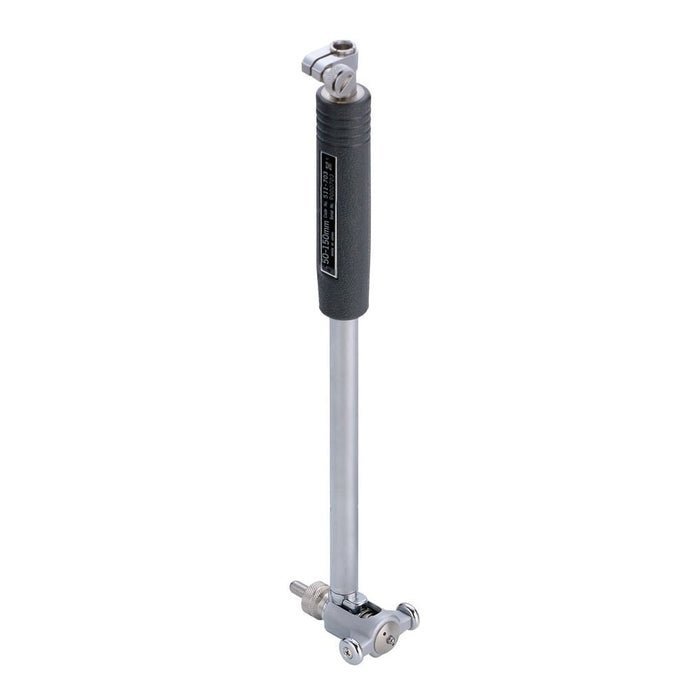

Mitutoyo 511-703 Standard Dial Bore Gauge, Range 50-150mm (Without Dial Guage)

Description

The Mitutoyo 511-703 standard type bore gauge set features interchangeable anvils and spacers to take highly accurate diameter measurements of a wide range of bore hole sizes. The Mitutoyo standard type bore gauge is available in several different inch ranges to measure inside bore diameters with accuracy to +/- 2µm. The bore gauge comes with interchangeable anvils to measure different bore diameters with the same gauge.

Specifications

● Range: 50-150 mm
● Graduations: No Dial Gauge Included
● Accuracy : +/- 2µm
● 11 Anvils (50 mm Sub Anvil)
● 4 Spacers
