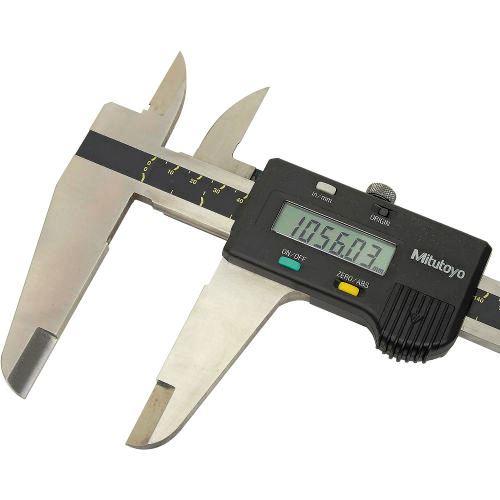

Mitutoyo 500-505-10 : ABSOLUTE Digimatic Caliper 0-18″/ 450mm

The Mitutoyo 500-505-10 Absolute Digimatic Caliper has a measuring range of 0-18″/ 450mm with .0005″/ 0.01mm resolution. Includes SPC Data Output but does not have Thumb Roller. Features a large, clear LCD readout, inch/metric conversion and a Zero/Absolute key that allows the display to be zero-set at any slider position along the scale for incremental comparison measurements. This switch will also allow return to the absolute (ABS) coordinate and display of the true position from the origin point, which is usually the jaws-closed position.

Technical Data
? Range: 0-450mm / 0-18 inch
? Accuracy: ?0.002?
? Resolution: 0.01mm or 0.0005″/0.01mm
? Repeatability: 0.01mm / 0.0005?
? Display: LCD
? Length standard: ABSOLUTE electrostatic capacitance type linear encoder
? Max. response speed: Unlimited
? Battery: SR44 (1 pc.)
? Battery life: Approx. 3.5 years under normal use
