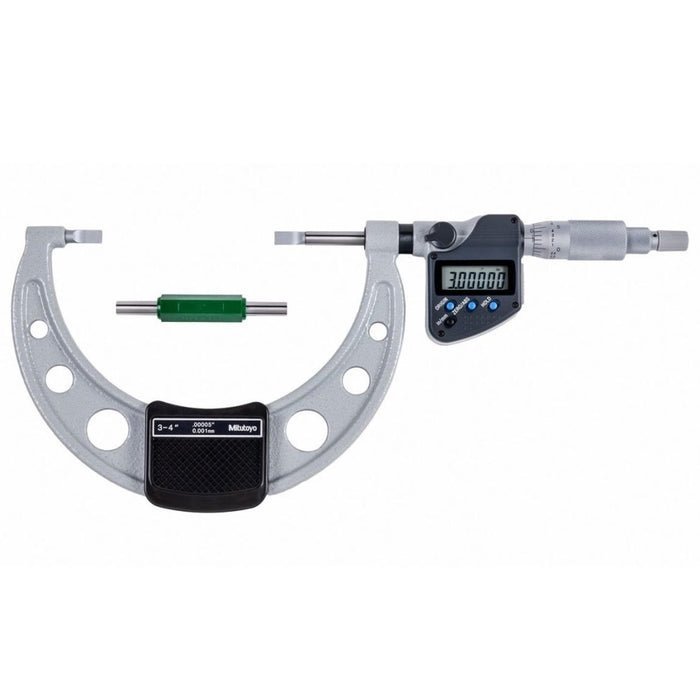

Mitutoyo 422-333-30 : Digimatic Blade Micrometer, Range 3-4″/ 76.2-101.6mm

Description

● The anvil and the spindle have a blade for measuring the groove diameter of shafts, key ways, and other hard-to-reach areas.
● With Ratchet Stop for constant force.
● With a standard bar 2 Inch.
● Origin-set, Zero-setting, Data hold, Data output, inch/mm
● Conversion (inch/mm models)
● Alarm: Low voltage, Counting value composition error
● Supplied in fitted plastic case.

Specifications:
● Range: 3-4″/ 76.2 – 101.6mm
● Accuracy: +/- 0.0002″
● Resolution: .00005″/0.001mm
● Parallelism: .003mm / .00012″ for models up to 75mm / 3″
● (3+R/100) microns for models over 75mm,
● R = max. range (mm) .00016″ for 4″ models
● Display: LCD
● Battery: SR44 (1 pc.), 938882
● Battery life: Approx. 1.2 years under normal use
