Mitutoyo 137-204: Tubular Inside Micrometer, Range 50-1000/0.01mm

1,467.00د.إ (Tax included)

The Mitutoyo 137-204 Extension Rod Tubular Inside Micrometer – Metric has the following specifications: ● Range: 50 – 1000mm● Travel of micrometer head: 13mm● Accuracy: +/-(3+n+L/50)μm L=Maximum measuring length (mm) n=Number of rods Fraction rounded up● Graduation: 0.01mm or .001″● Extension rods: 13mm, 25mm, 50mm (2 pcs.), 100mm, 200mm (2pcs.), and 300mm Features:● Wide range […]

Category:

Description

The Mitutoyo 137-204 Extension Rod Tubular Inside Micrometer – Metric has the following specifications:

● Range: 50 – 1000mm
● Travel of micrometer head: 13mm
● Accuracy: +/-(3+n+L/50)μm L=Maximum measuring length (mm) n=Number of rods Fraction rounded up
● Graduation: 0.01mm or .001″

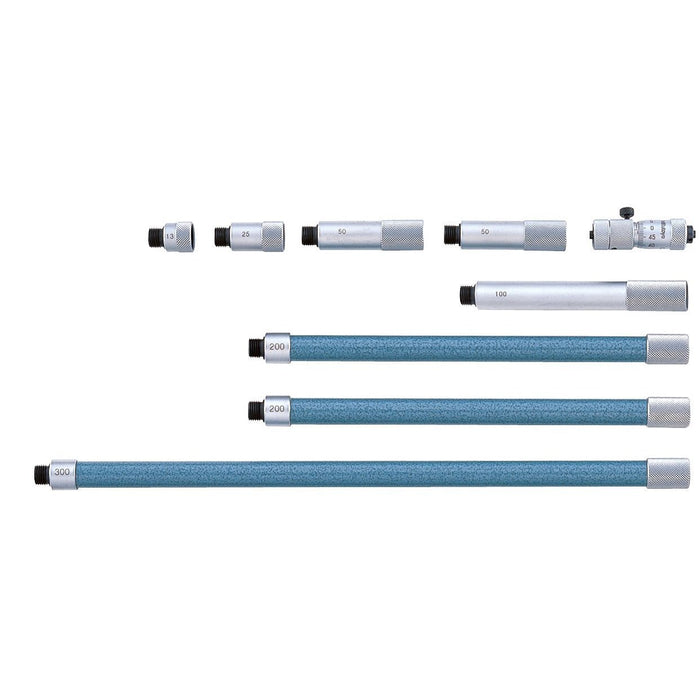

● Extension rods: 13mm, 25mm, 50mm (2 pcs.), 100mm, 200mm (2pcs.), and 300mm

Features:
● Wide range of ID measurements by combining extension rods (pipes) and anvils with the micrometer head.
● Carbide-tipped measuring faces are available.
● Supplied in fitted plastic case except 1500mm / 60″ come in wooden case.
