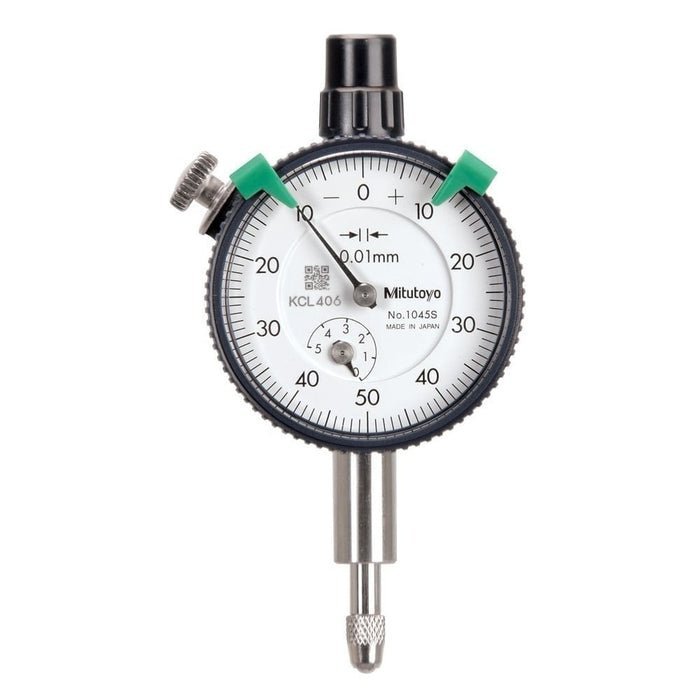

Mitutoyo 1045S Compact Type Dial Indicator, Range 0-5mm

Description

The Mitutoyo 1045S Series 1 Dial Indicator has a revolutionary stem-bush design for trouble free stem clamping and longer clamping range. No through screw-hole on the frame for high dust-resistance. Greater rigidity in the bearing plate for reducing the tracing error. This model has a Lug-Back with a range of 5mm with 1mm per revolution, 0.01mm graduation and 0-50 Dial Reading with an 8mm Stem.

Specification
● Range: 0-5mm
● Graduations: 0.01mm
● Range/Rev: 1mm
● Dial Reading: 0-50
● Type: with lug
● Accuracy (First 2.5 Rev): +/- 0.01mm
● Accuracy (Overall): +/- 0.013mm
● Measuring Force: 1.4N or less
● Stem/Shank: 8mm
● Contact Point: M2.5 x 0.45 Thread
● Type: ISO/JIS
● Shockproof Type: N
● Waterproof Type: N
● Jeweled Bearing Type: N
