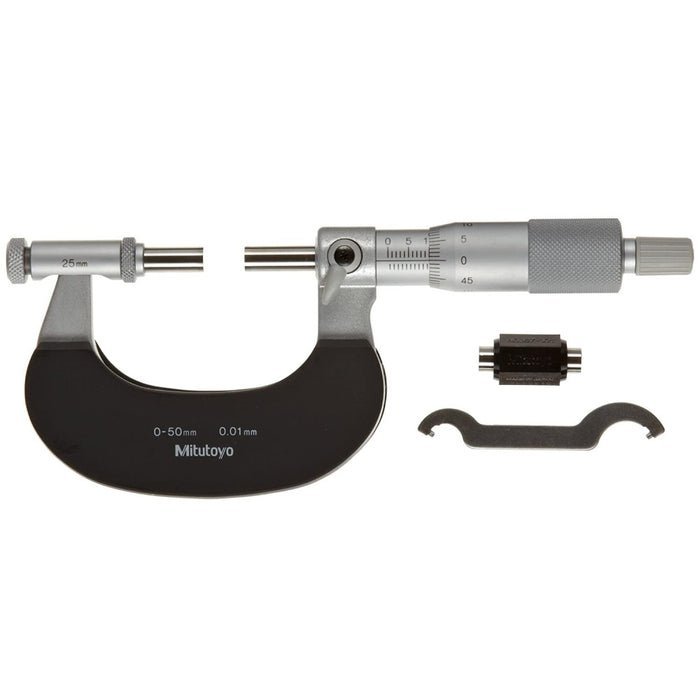

Mitutoyo 104-171 Outside Micrometer With Interchangeable Anvils, Range 0-50mm

Description

The Mitutoyo 104-171 Outside Micrometer with Interchangeable Anvils has the following specifications:
● Range: 0-50mm
● Graduations: 0.01mm
● Mass(kg): 0.32
● Remarks: With 2 Anvils & 1 Standard
● With Ratchet Stop

Features:
● Wide measuring range with interchangeable anvils.
● With a Ratchet Stop for constant force.
● Supplied with zero-setting standards bar for each range.
● Supplied in fitted wooden case.
● Measuring faces: Carbide tipped

Technical Data
● Accuracy: +/- (4 + R/75)um    R = Max Range(Metric)
● Graduation: 0.01mm
● Flatness:
    0.0006mm for models up to 300mm
    0.001mm for models over 300mm
● Parallelism:
    0.002mm for models up to 75mm
    0.003mm for models up to 150mm
    (2 + R/100)um     R= Max range(inch)
