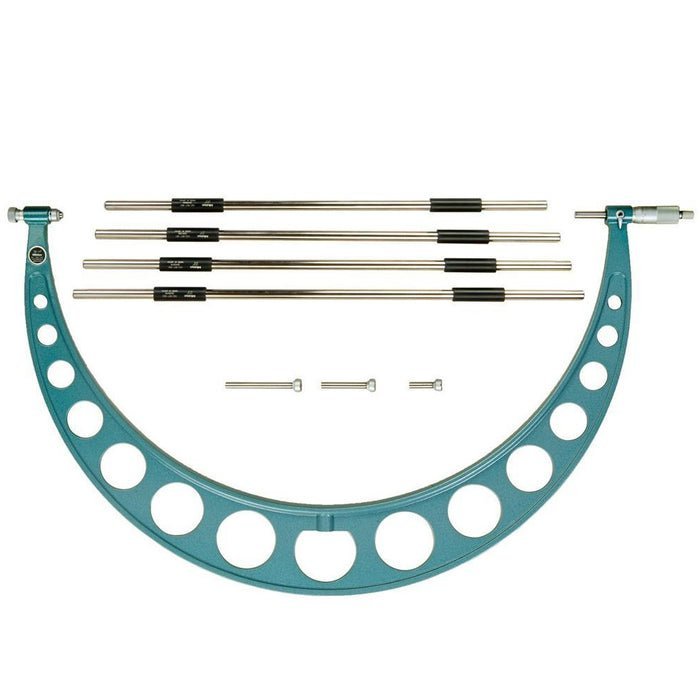

Mitutoyo 104-154 Outside Micrometer With Interchangeable Anvils, Range 20-24″

Description

Mitutoyo 104-154 Outside Micrometer with 4 Interchangeable Anvils
● Wide measuring range with interchangeable anvils.
● With a Ratchet Stop for constant force.
● Supplied with zero-setting standards bar for each range.
● Supplied in fitted wooden case.
● Measuring faces: Carbide tipped

Specification
● Range: 20-24″
● Graduations: 0.001″
● Mass(kg): 6.35
● Remarks: With 4 Anvils & 4 Standards
● With Ratchet Stop

Technical Data
● Accuracy: +/- [.00016″ +/- .00004 (L/3)”] L = Max Range (Inch)
● Graduation: 0.001″ or 0.0001″ (0-2″)
● Flatness:
  0.000024″ for models up to 12″
  0.00004″ for models over 12″
● Parallelism:
  0.00008″ for models up to 3″
  0.00012″ for models up to 6″
  [0.00008″ + 0.00004 (L/4)”] L= Max range (inch)
