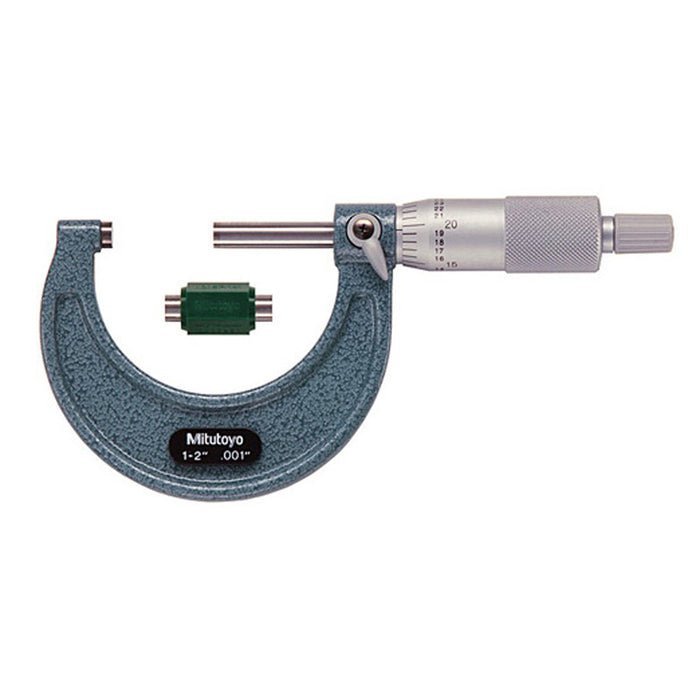

Mitutoyo 103-178 Outside Micrometer, Range 1-2 Inch

Description

The Mitutoyo 103-178 Outside Mechanical Micrometer features a hammertone, green, baked-enamel finished frame and Carbide tipped measuring faces. This model includes a Ratchet Stop and a Measuring Range of 1-2″ with an Accuracy of +/- 0.0001″.

The Mitutoyo 103-178 outside micrometer set has the following specifications:
●  Range: 1-2″
●  Graduations: 0.001″
●  Accuracy: +/- 0.0001″
●  Mass (g): 215

Features:
●  Hammertone, baked-enamel finished frame.
●  Ratchet Stop or Friction Thimble for better repeatability
●  All micrometers over 0-1″ includes a standard

Technical Data
●  Flatness:
     0.000024″ for models up to 12″
     0.00004″ for models over 12″
●  Parallelism: [0.00008 + 0.00004 (L/4)]” L= max range (inch)
●  Measuring faces: Carbide tipped
