Description

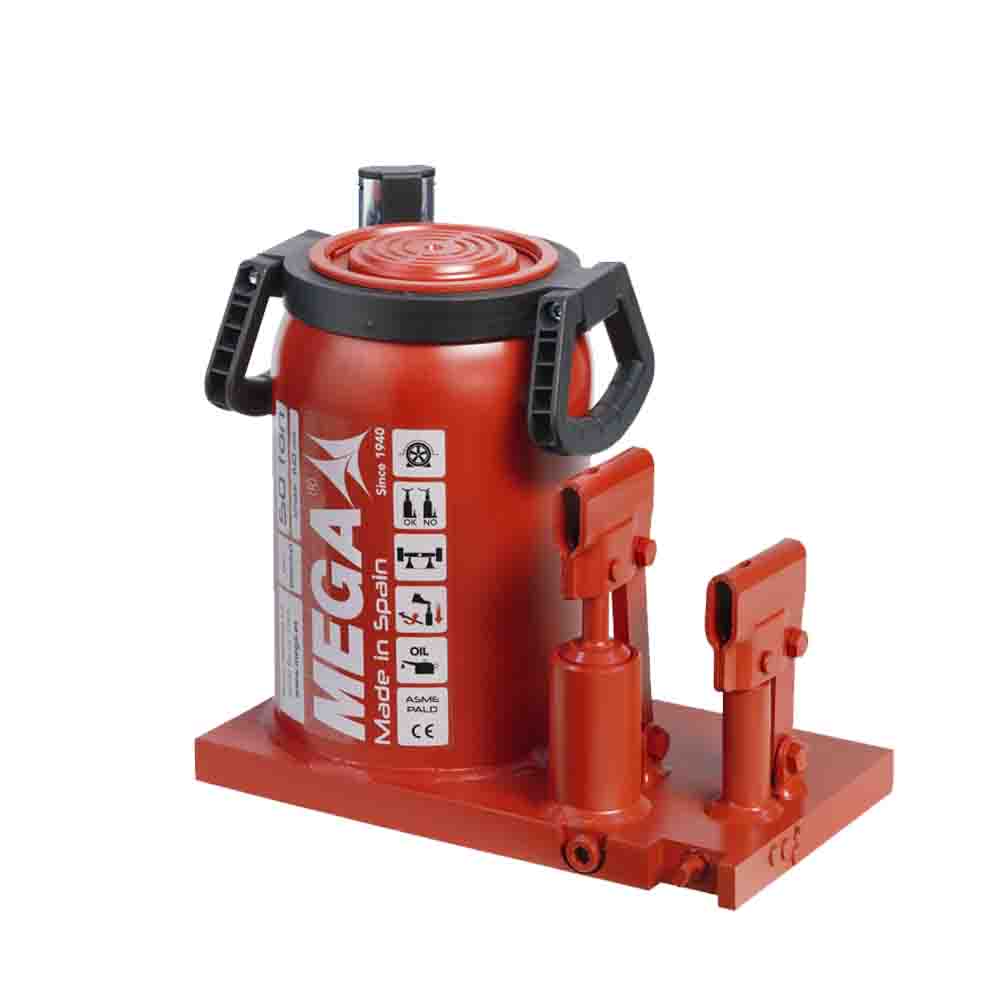

Mega MGD/BRD50 Hydraulic Bottle Jack 50TON
NOMINAL FORCE
50t Double
CHARACTERISTICS
Telescopic three piece zinc plated pump handle.
Rotatory pump socket. It can be operated from any position.
Quick and easy maintenance.
Safety oil by-pass system prevents the ram from being overextended and causing damage to the cylinder.
A pump handle can be locked.
Rotatory carrying handle keeps retracted telescopic lever.
We also supply jacks fitted with a pressure gauge always based on a minimum batch. The base, pressure cylinder, and oil deposit form one integral part and provide more strength and safety to the jacks.
Any pressure loads produced by the vehicle axle tilting are absorbed as the piston never comes into contact with the cylinder. Therefore the jack will not be damaged even if the vehicle tilts.
The BRD50 and BRD100 jacks are fitted with two pumps (approach and operation).
SECURITY
- Safety Overload Valve
- Hydraulic stroke limitation
TECHNICAL SHEET
Capacity (t) | A | B | C | D | Weight (kg) | References |
---|---|---|---|---|---|---|
50 | 260 | 140 | – | 400 | 30 | BRD50 |
