Kaba Storeroom Narrow Style Lock Pack

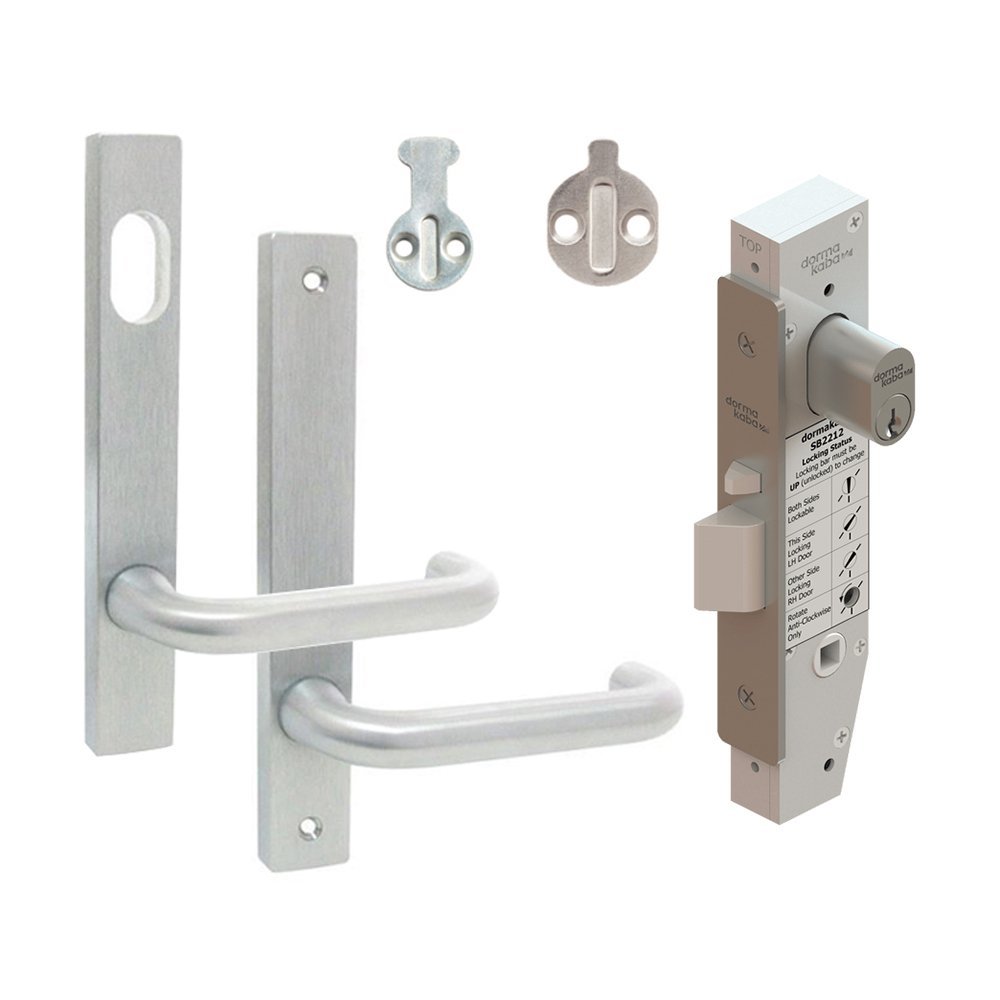

Includes:

• 1 x Dormakaba Narrow Style Mortice Lock 23mm Backset Satin Stainless Steel (SB2212SSS)
• 1x N600 Series Narrow Style Plate Furniture w/ Cylinder Hole & 25 Lever (N601C-25SCP)
• 1x N600 Series Narrow Style Plate Furniture w/ 25 Lever (N602V-25SCP)
• 1x 570 Cylinder X Cam (V570XSC)

The Kaba SBM Series Short Backset Mortice Locks have been designed, engineered and built to perform on many varied building projects. The Kaba Short Backset Mortice Lock provides the ideal solution for new fit outs or retrofits in place of existing short backset lock applications on aluminium frame doors including commercial high usage doors such as education facilities, hospitals, military installations, corrective service facilities, hotels, clubs, office buildings and residential applications. The Kaba N600 series narrow style square end solid forged brass door furniture is designed for use with contemporary Australian style short backset mortice locks and latches.

Kaba N600 Series Narrow Style Squared Edge Plate Furniture w/ Cylinder Hole & 25 Lever
N601C25SCP

The Kaba N600 series narrow style square end solid forged brass door furniture is designed for use with contemporary Australian style short backset mortice locks and latches.

Features:

• Stainless Steel drive plate, an integrated precision ground 12mm bush that provides enhanced handle support plus a lever torsion spring to eliminate handle sag.
• Fixing: Plates are 12mm thick and are designed to fit back to back with either concealed or visible fixing to outside plate. Tiebolt M5 fixing screws have a cross-recessed head.
• Handing: Plates and knobs are non-handed with levers reversible on site in most cases.
• Door Thickness: Supplied to suit door thickness 32mm to 50mm.

Specifications:

• Height: 185mm
• Wide: 26mm
• Thick: 12mm
• Finish: Satin Chrome Plate

Kaba N600 Series Narrow Style Squared Edge Plate Furniture w/ 25 Lever
N602V25SCP

The Kaba N600 series narrow style square end solid forged brass door furniture is designed for use with contemporary Australian style short backset mortice locks and latches.

Features:

• Stainless Steel drive plate, an integrated precision ground 12mm bush that provides enhanced handle support plus a lever torsion spring to eliminate handle sag.
• Fixing: Plates are 12mm thick and are designed to fit back to back with either concealed or visible fixing to outside plate. Tiebolt M5 fixing screws have a cross-recessed head.
• Handing: Plates and knobs are non-handed with levers reversible on site in most cases.
• Door Thickness: Supplied to suit door thickness 32mm to 50mm.

Specifications:

• Height: 185mm
• Wide: 26mm
• Thick: 12mm
• Finish: Satin Chrome Plate
