Kaba Single Cylinder Exit Lock Set Satin Chrome Plate SBM2KIT81

Kaba Single Cylinder Exit Lock Set

Exit Lock ability to lock or unlock the door from the inside of the house with a thumb-turn provides a level of ease to which the modern homeowner has grown used.

Exit Lock Function – On the outside, there is a keyed cylinder, while on the inside, the door is locked and unlocked with a thumb turn. In the event of an emergency, the inside thumb turn provides for a quick departure.

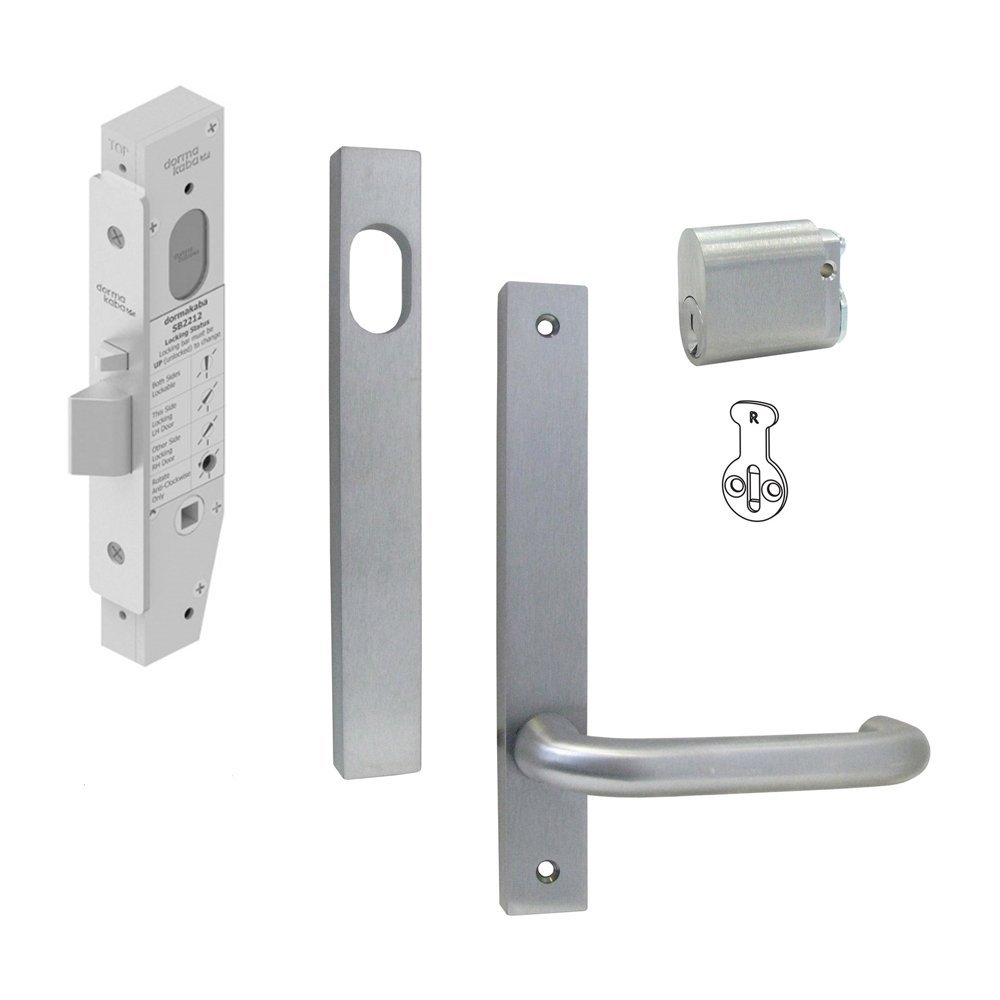

Includes:

• 1 x Dormakaba Mortice Door Lock 23mm Short Backset Satin Stainless Steel (SB2212SSS)
• 1 xDormakaba 6410 Narrow Style Exterior Square End Plate with Cylinder Hole (DF64100001)
• 1 x N600 Series Narrow Style Plate Furniture w/ 25 Lever (N602V-25SCP)
• 1 x Brava Oval Cylinder X W Z Rabbit Cams 6 Pin Keyed Differ Satin Chrome (5070USCKD)

Dormakaba Narrow Style Mortice Lock
SB2212SSS

Features:

• Operated by key or handle outside or by turnsnib, key or handle inside
• Cylinder or handle retracts the latch
• 15 mm stainless steel reversible latchbolt
• Stainless steel faceplate and strike
• Easily adapted to most function
• Supplied with turn snib adaptor
• Supplied with cylinder
• Compatible to most restricted keying systems
• Electric strike compatibility

Specifications:

• Door Thickness: 32mm – 50mm
• Backset: 23mm
• Finish: Satin Stainless Steel

Dormakaba 6410 Narrow Style Exterior Square End Plate with Cylinder Hole 316SSS
DF64100001

Features:

• A true rectangular narrow plate displaying clean modern lines with bevelled edges
• Manufactured using hygienic and corrosion resistant 316 Solid Stainless Steel
• A characteristic feature of Stainless Steel door furniture is the naturally gleaming finish
• Concealed fixed external plates with visible fixed internal plates connected with bolt through fixings
• Extensive range of optional plate functions
• Designed with bolt through fixing for use with Australian narrow stile mortice locks and latches
• Non handed plate with oscillating lever action for quick reversal of handing
• Heavy duty spring mechanism manufactured using the highest grade materials
• Nylon shim preventing metal to metal wear and providing a smoother friction free movement
• All turn snibs and privacy snibs on plate are supplied with a heavy duty star spindle for positive turn actuation and furthermore provides for true installation alignment
• Standard screws in 5/32 thread

Specifics:

• Fixing: Plates are 12mm thick and are designed to fit back to back with concealed fix.
• Handing: Plates and knobs are non-handed with levers reversible on site in most cases.
• Door Thickness: Supplied to suit door thickness 32mm to 45mm.
• Dimensions: 185mm high x 26mm wide x 12mm thick
• Finish: Satin Chrome Plate

Kaba N600 Series Narrow Style Squared Edge Plate Furniture w/ 25 Lever
N602V25SCP

The Kaba N600 series narrow style square end solid forged brass door furniture is designed for use with contemporary Australian style short backset mortice locks and latches.

Features:

• Stainless Steel drive plate, an integrated precision ground 12mm bush that provides enhanced handle support plus a lever torsion spring to eliminate handle sag.
• Fixing: Plates are 12mm thick and are designed to fit back to back with either concealed or visible fixing to outside plate. Tiebolt M5 fixing screws have a cross-recessed head.
• Handing: Plates and knobs are non-handed with levers reversible on site in most cases.
• Door Thickness: Supplied to suit door thickness 32mm to 50mm.

Specifications:

• Height: 185mm
• Wide: 26mm
• Thick: 12mm
• Finish: Satin Chrome Plate

Brava Oval Cylinder X W Z Rabbit Cams 6 Pin Keyed Differ
5070USCKD

Features:

• Brava type 570 cylinder
• Includes X, W, Z & Rabbit Cams
• 2 keys supplied

Specifications:

• Cylinder: 6 Pin
• Keying: Keyed to Differ
• Finish: Satin Chrome
