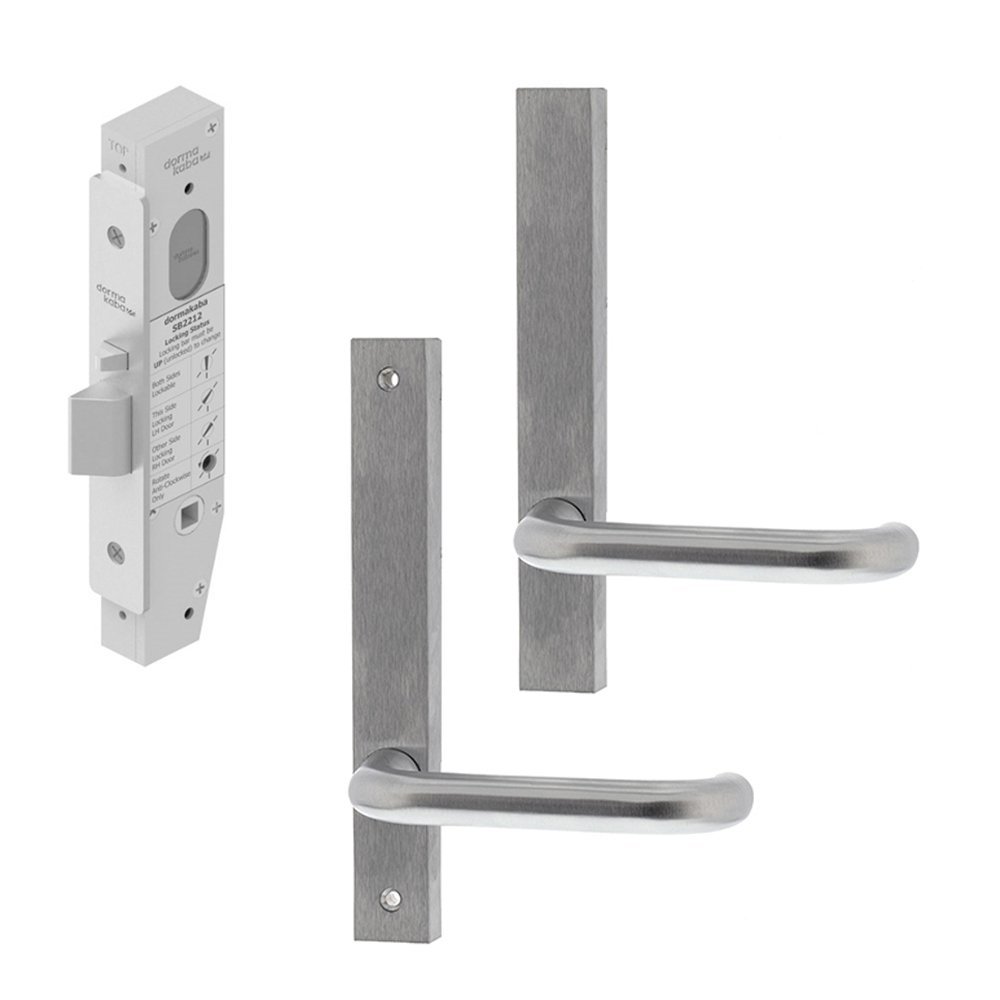

Kaba Mortice Passage Kit 23mm Backset Satin Chrome
SBM2KIT10

Passage ideal for interior hallways, closets and other rooms that don’t need privacy locks.

Passage Function – Both outside and inside levers are always free.

Includes:

• 1 x Dormakaba Mortice Door Lock 23mm Short Backset Includes Turn (SB2212SSS)
• 1 x Kaba Door Handle N600 Narrow Style Plate w/ 25 Lever (N602C25SCP)
• 1 x Kaba Door Handle N600 Narrow Style Plate w/ 25 Lever (N602V25SCP)

Dormakaba Narrow Style Mortice Lock
SB2212SSS

Features:

• Operated by key or handle outside or by turnsnib, key or handle inside
• Cylinder or handle retracts the latch
• 15 mm stainless steel reversible latchbolt
• Stainless steel faceplate and strike
• Easily adapted to most function
• Supplied with turn snib adaptor
• Supplied with cylinder
• Compatible to most restricted keying systems
• Electric strike compatibility

Specifications:

• Door Thickness: 32mm – 50mm
• Backset: 23mm
• Finish: Satin Stainless Steel

Kaba N600 Series Narrow Style Squared Edge Plate Furniture w/ 25 Lever

Features:

• Stainless Steel drive plate, an integrated precision ground 12mm bush that provides enhanced handle support plus a lever torsion spring to eliminate handle sag.
• Fixing: Plates are 12mm thick and are designed to fit back to back with either concealed or visible fixing to outside plate. Tiebolt M5 fixing screws have a cross-recessed head.
• Handing: Plates and knobs are non-handed with levers reversible on site in most cases.
• Door Thickness: Supplied to suit door thickness 32mm to 50mm.

Specifications:

• Height: 185mm
• Wide: 26mm
• Thick: 12mm
• Finish: Satin Chrome Plate
