Dormakaba Entrance Kit Lockpack
SB2212KIT04SS

Entrance commonly used on front / back door or any door that you want to lock with a key.

Entrance Function – Turn/push-button locking, pushing and turning button locks outside lever requiring use of key until button is manually unlocked Push-button locking: pushing button locks outside lever until unlocked by key or by turning inside lever.

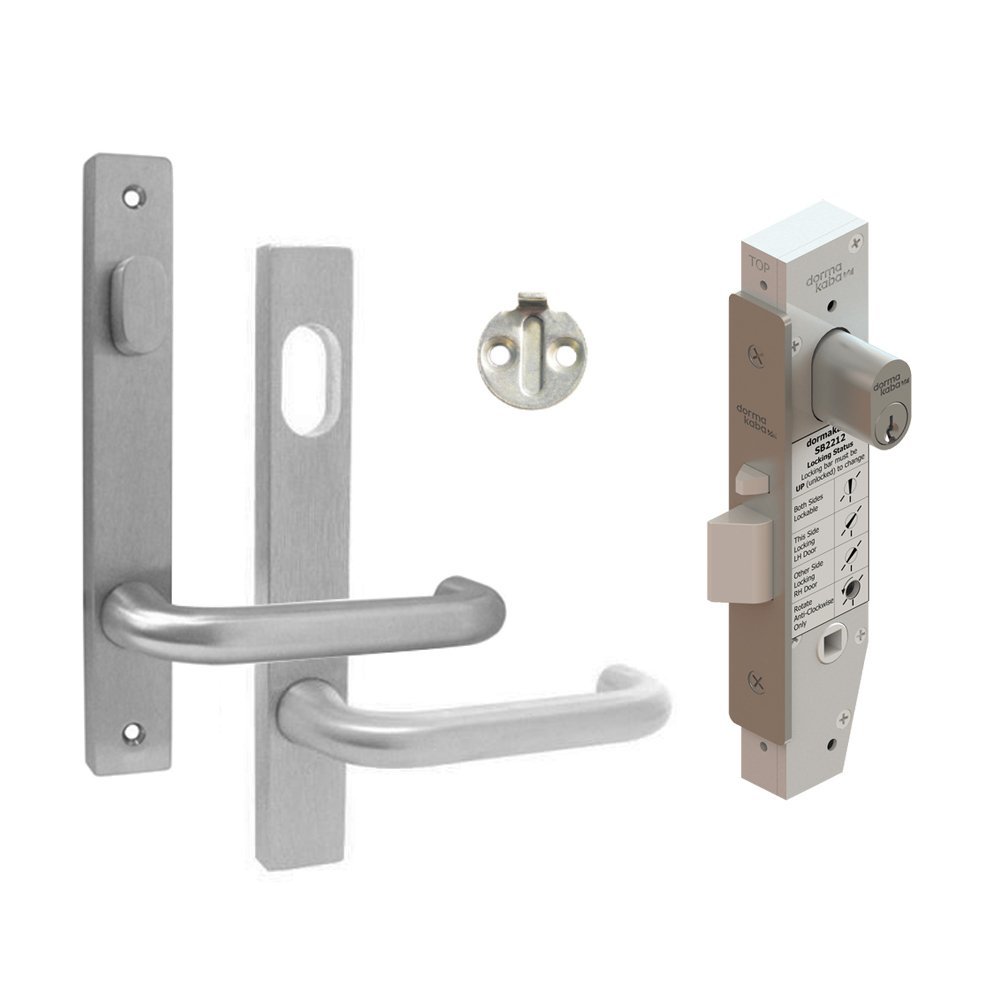

Includes:

• 1 x Dormakaba Narrow Style Mortice Lock 23mm Backset Satin Stainless Steel (SB2212SSS)
• 1 x Kaba Narrow Style Plate w/ Cylinder Hole Lever Satin Chrome Plate (N601C25SCP)
• 1 x Kaba Narrow Style Plate w/ Turn & Lever Satin Chrome Plate (N613V25SCP)
• 1 x Dorma 130 Series C4 Oval Cylinder 6 Pin – Keyed To Differ (130C4KDSCP)
• 1 x Dormakaba Cam KW Turn Adaptor Activation Suit 2600 & 2900 Series Locks (CAMKW)

Dormakaba Narrow Style Mortice Lock
SB2212SSS

Features:

• Operated by key or handle outside or by turnsnib, key or handle inside
• Cylinder or handle retracts the latch
• 15 mm stainless steel reversible latchbolt
• Stainless steel faceplate and strike
• Easily adapted to most function
• Supplied with turn snib adaptor
• Supplied with cylinder
• Compatible to most restricted keying systems
• Electric strike compatibility

Specifications:

• Door Thickness: 32mm – 50mm
• Backset: 23mm
• Finish: Satin Stainless Steel

Kaba N600 Series Narrow Style Squared Edge Plate Furniture w/ Cylinder Hole & 25 Lever
N601C25SCP

Features:

• Stainless Steel drive plate, an integrated precision ground 12mm bush that provides enhanced handle support plus a lever torsion spring to eliminate handle sag.
• Designed to fit back to back with either concealed or visible fixing to outside plate
• Tiebolt M5 fixing screws have a cross-recessed head
• Plates and knobs are non-handed with levers reversible on site in most cases

Specifications:

• Door Thickness: 32mm – 50mm
• Height: 185mm
• Wide: 26mm
• Thick: 12mm
• Finish: Satin Chrome Plate

Kaba N600 Series Narrow Style Squared Edge Plate Furniture w/ Turn & 25 Lever
N613V-25SCP

Features:

• Stainless Steel drive plate, an integrated precision ground 12mm bush that provides enhanced handle support plus a lever torsion spring to eliminate handle sag
• Designed to fit back to back with either concealed or visible fixing to outside plate. Tiebolt M5 fixing screws have a cross-recessed head
• Non-handed with levers reversible on site in most cases
• Disabled access AS1428.1 compliant lever
• Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets (only when used in conjunction with the M Series mortice lock).

Specifications:

• Door Thickness: 32mm to 50mm
• Height: 185mm
• Wide: 26mm
• Thick: 12mm
• Finish: Satin Chrome Plate

Dormakaba Cam KW Turn Adaptor Activation
CAMKW

Specifications:

• Dormakaba “KW” turn adaptor activation cam.
• Suits adaptor SA-KZ (DKADAPTORKZPK5) when used with MS2600, MS2900, SB2212 and SB2312 series locks.
