Kaba Classroom Door Pack MS2 Mortice Lock w/ Cylinder & Lever Furniture PACKKABA60

Kaba Classroom Lock Pack

Includes:

• 1x MS2 Mortice Lock (MS2SCP)
• 1x Dormakaba Oval Cylinder Escutcheon 54mm 316 Satin Stainless Steel 4306SSS
• 1x 570 Oval Cylinder Z Cam (5070USC)
• 1x Yale Simplicity S2 Door Lever Handle on Round Rose Stainless Steel YSH1/S2NLSS

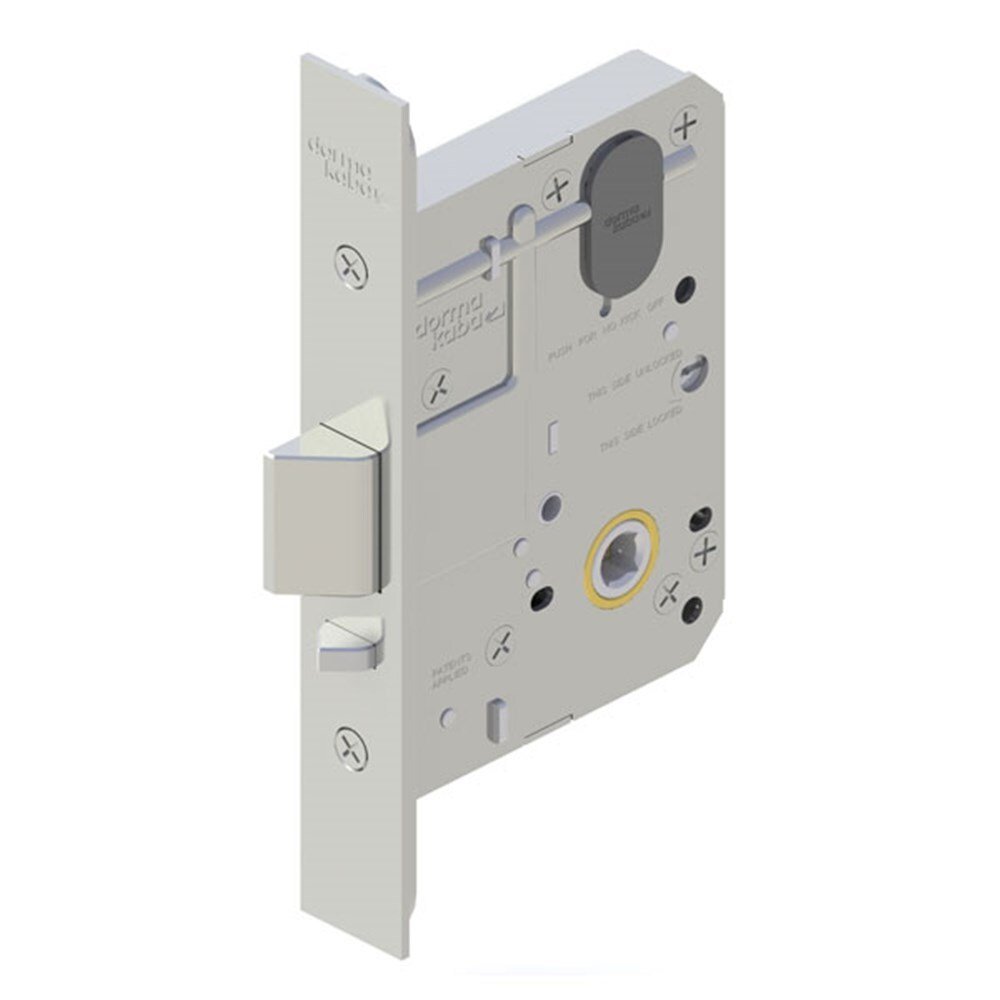

Kaba mortice locks are constructed from heavy duty materials including stainless steel case, face plate, strike and latchbolts. The MS2 primary mortice lock is available with a full range of functions including privacy, passage, vestibule, escape, anti-lockout, etc. Typical applications include commercial, health, institutional and defense projects.

MS2 Features:

• MS2602 primary mortice lock.
• Case, cover & faceplate constructed from 304 grade stainless steel.
• Operated by key or handle outside or by turnsnib, key or handle inside.
• 60 mm backset as standard.
• 14 mm stainless steel reversible latch bolt.
• Anti-lockout function built-in.
• Easily adapted to most functions.
• Suits door thickness 32-50 mm.
• Supplied with turn snib adaptor.
• Supplied less cylinder.
• Compatible to most restricted keying systems.
• Compatible with most electric strikes.
• SCEC approved (SL3).
• MS2600 Series lock conforms to level SL8 (Physical Security) in accordance with Australian lock standard AS4145.2-2008.
• MS2600 Series lock conforms to level D8 (Durability) in accordance with Australian lock standard AS4145.2-2008.
• Fire rated up to 4 hours.
• Finished in stainless steel.

Yale Simplicity S2 Door Lever Handle on Round Rose
YSH1/S2NLSS

Door Lever on Rose can be used on any internal door inside your home. Simply combine the lever on rose door handle with a combination of latches, locks and thumb-turns, depending on the room and requirements.

Door Lever on Rose Function – a door handle where the lever is fixed to a circular plate.

Features:

• Suitable for use in multi-residential developments.
• Designed for use with Simplicity mortice locks as Entrance Sets and Tubular Latches for passage door applications
• Disabled Accessible AS1428.1 Compliant
• A removable stop plate allows these symmetrically designed levers to be handed and set as either an operable or fixed lever on site

Specifications:

• Door Thickness: 32mm – 45mm
• Length: 140mm
• Projection: 60mm
• Diameter: 54mm
• Finish: Stainless Steel

Compliance:

• Fire Rated: Yale Simplicity Series Leversets have been successfully tested with Yale Simplicity Mortice Locks up to 2 hours with a fire rated Lockwood mortice lock on fire door assemblies (depending on type of doorset) in accordance with Australian Standard AS1905.1:2005, Fire Resistant Doorsets.
• AS1428.1 compliant levers.

• Dormakaba Oval Cylinder Escutcheon
  4306SSS

  Features:

• Manufactured using 316 grade stainless steel
• High Durability with Concealed Fixings

• Specifications:

• Diameter: 54mm
• Projection: 12mm
• Finish: Satin Stainless Steel
