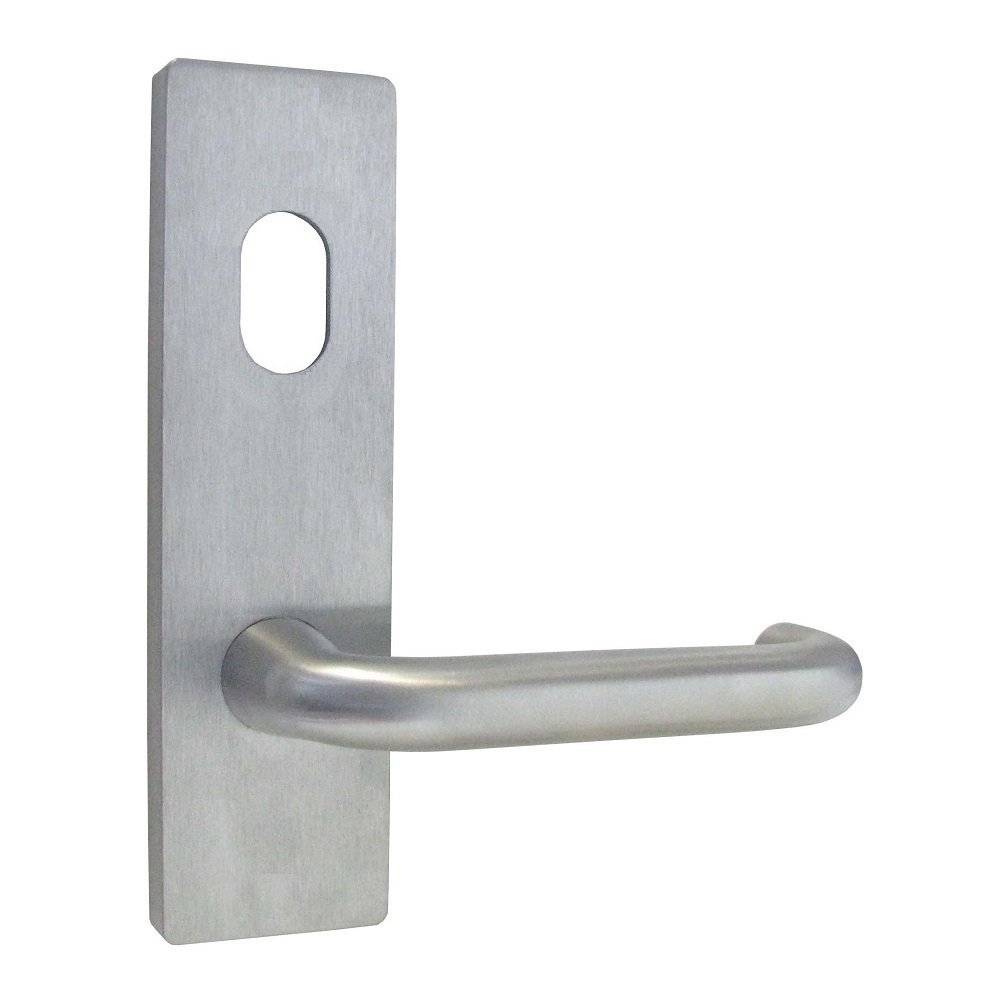

Kaba 600 Series Plate With Oval Cylinder Hole & 25 Lever Satin Chrome 601C25SCP

Kaba 600 Series Squared Edge Plate Furniture w/ Cylinder Hole & 25 Lever
601C25SCP

Square End Plate Furniture is used for most commercial standard backset mortice locks. Suits corporate, commercial and public spaces with high use requirements.

Square End Plate Furniture Function – external plates with lever designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.

Features:

• Rectangular exterior square end plate
• Cylinder hole and 25 series lever
• Plates are designed to fit back to back
• Internal plates supplied with 4 mm fixing screws
• Fire rated

Specifications:

• Door Thickness: 32mm – 50mm
• Internal / External: External
• Plate Size: 165mm x 44mm
• Plate Type: Square End
• Screw Fixing Centres: 149.25mm
• Material: Brass
• Plate Has A Lever: Yes
• Plate Has Oval Cylinder Hole: Yes
• AS1428.1 Compliant Lever (AS1428.1CO): Yes
• Finish: Satin Chrome

Compliance:

• BCA AS1428.1 -2009 compliant leverset.
• Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
