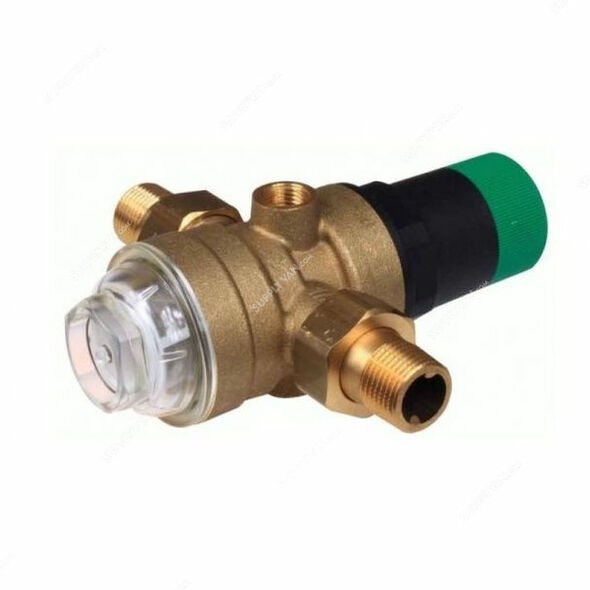

Honeywell Water Pressure Reducing Valve, D06F-1-2A, 1/2 Inch, Multicolor

Pressure reducing valves of this type protect household water installations against excessive pressure from the supply. They can also be used for industrial or commercial applications within the range of their specification. By installing a pressure reducing valve, pressurisation damage is avoided and water consumption is reduced. The set pressure is also maintained constant, even when there is wide inlet pressure fluctuation. Reduction of the operating pressure and maintaining it at a constant level minimizes flow noise in the installation.

• Up to size 11/4″ approved for low noise, Group 1 without limitations
• The outlet pressure is set by turning the adjustment knob
• The set pressure is directly indicated on the set point scale
• The adjustment spring is not in contact with the potable water
• The valve insert is of high quality synthetic material and can be fully exchanged
• Integral fine filter
• Easily retrofitted to convert valve to a reverse-rinsing filter combination
• Can be retrofitted with an inlet non-return valve
• Housing with pressure gauge connections on both sides
• Valve insert complete with fibre-reinforced NBR diaphragm and NBR valve seat
• Fine filter with 0.16 mm mesh
• Spring bonnet with adjustment knob and setting scale
• Clear Filter bowl
• Adjustment spring
