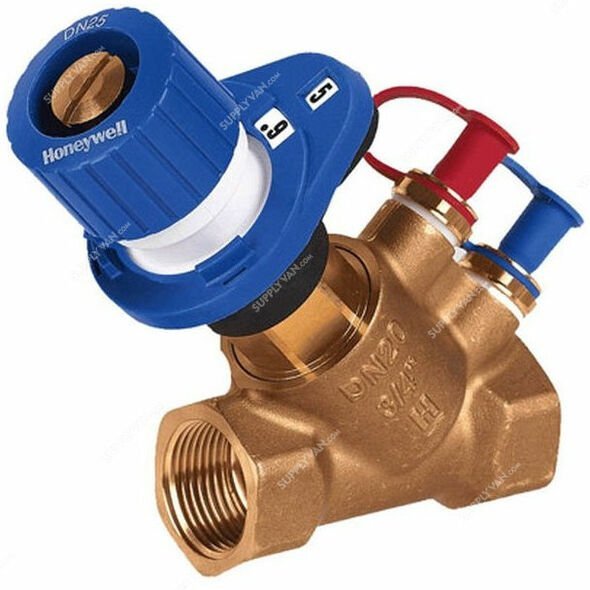

Honeywell Double Regulating Balancing Valve, V5032Y0040B, Threaded, 1-1/2 Inch

The V5032 Kombi-2-plus is a static, variable orifice double-regulating balancing valve for the return with additional shutoff function.

Manual balancing of flow rates

Precise pre-setting with numeric scale

Concealed pre-setting prevents unwanted operation

Wide range of application

Versions for standard and low flow rates available

Fast and safe measurement with SafeCon measuring Connections 6 times faster than standard Binder connections

DN size and settings readable on handwheel even with insulated valve

All functions located on one side for easier access and use

Optimal measuring in combination with Honeywell BasicMess (VM242) – all flow values are already included in the measuring device

Maintenance friendly

Insert fully interchangeable

Integrated shutoff function

Pre-setting is not changed during shutoff

• It is suitable for use in variable and constant flow systems to manually balance the flow and to set resistances to an equal level all over the system
• V5032 Kombi-2-plus is typically used for static balancing of fan coil units, air handling units, chilled ceilings and two-pipe heating systems. A usage in the return is to be preferred but it can be used also in the supply
• Manual balancing of florets
• Wide range of applications
• Easy to come
• Maintenance friendly
