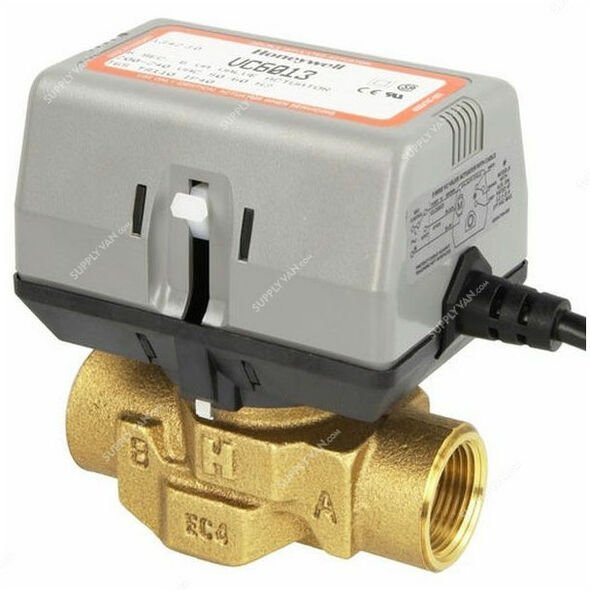

Honeywell 2 Way Electric Valve Actuators, VC6013AF1000T, 220VAC, 1/2 Inch

Honeywell VC Series balanced 2-position hydronic valves are used in domestic and small commercial heating and cooling applications to control the flow of hot and/or cold water. They consist of an actuator, valve and a cartridge assembly 2-way valves are designed for on-off zone control of domestic systems. 3-way valves can be piped for either diverting or mixing valve applications in domestic central heating and/or cooling systems, Both versions can be used to control individual fan coil, radiator, space heater or convector applications. Depending on the model selected they can be controlled by a low or line voltage SPST or SPDT controller such as a room thermostat, aquastat or flow switch. VC Series hydronic valves are designed to take advantage of sinusoidal valve actuator travel, and therefore operate silently and reduce water hammer

• 2-way: flow can be in either direction. When actuator is not mounted valve is in closed position
• Control by a low or line voltage SPST or SPDT controller
• Minimal actuator power consumption
• Pressure differential up to 4 bar
• Double insulated actuator
• Quick connect electrical connections
• Quick and easy replacement of moving parts
• Actuator head installation does not require draining of the system
