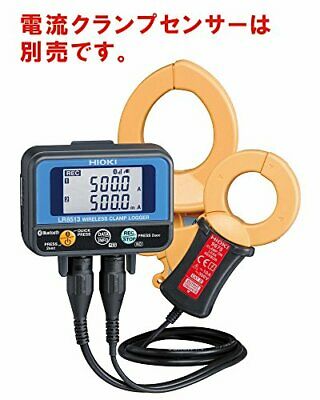

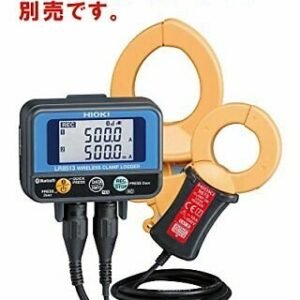

HIOKI Electric LR8513 wireless clamp logger made in Japan

Easily collect various data wirelessly and easily record load current / leakage current with clamp

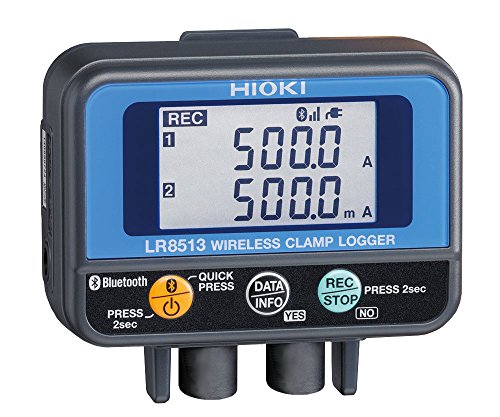

Wireless clamp logger LR8513
● For AC / DC load current / AC leakage current measurement (with clamp sensor)
● 8 types of current sensors to choose from
● You can monitor the measured value outside even if you put it in the switchboard and close the door.
● Easy power measurement by setting voltage and power factor
● Compact 2ch model without worrying about installation space
● Measurement data to LR8410 or LR8416 with BluetoothR wireless technology
● Retains measurement data while communication is interrupted
● 3WAY power supply (AC adapter, AA alkaline batteries, external power supply 5 ~ 13.5V)
● 500,000 data storage capacity per channel
* Clamp sensor is sold separately. Measurement is not possible with the LR8513 alone.

■ Basic specifications
[Operation] Measurement data to LR8410 or LR8416 via wireless communication, LR8410 or LR8416 required for data collection / control up to 7 units, up to 30m line of sight
[Measurement function] [Number of channels] 2ch (Common to GND)
______ [Measurement items] AC load current, DC load current, AC leakage current (by current sensor)
______ [Measurement range] AC500.0mA to 2000A, DC10.00A to 2000A (depending on current sensor)
______ * Current and leakage current that intermittently operate cannot be measured
[Measurement accuracy] ± 0.5% rdg. ± 5dgt. (DC, AC50 / 60Hz) * Add sensor accuracy when current sensor is connected
[Recording] [Interval] 0.5-30 seconds, 1-60 minutes, 14 switching, [Mode] Instantaneous value, average value recording
[Power supply] AC adapter Z2003 (AC100-240V, 50 / 60Hz), single 3 form alkali dry cell (LR6) * 2, external power supply DC5-13.5V
[Continuous use time] About 10 days instantaneous value with AA alkaline batteries (1 second interval, BluetoothR ON)
[Dimensions / Weight] 85W x 75H x 38Dmm, 130g (excluding battery)
[Accessories] CD-R (Instruction Manual, Logger Utility) x 1, Measurement Guide x 1, Cautions on Using Radio Waves x 1, AA Alkaline Batteries (LR6) x 2
