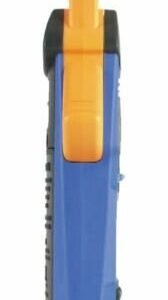

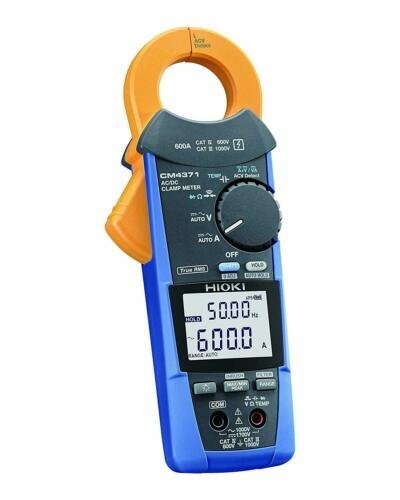

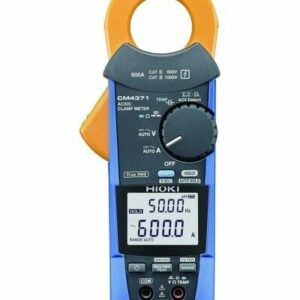

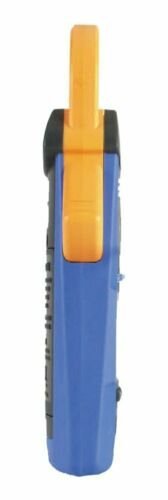

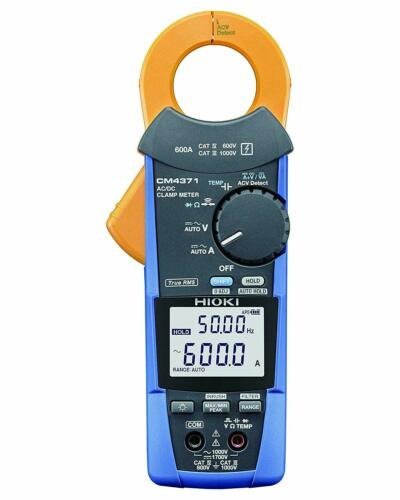

Hioki Electric HIOKI AC/DC Clamp Meter AC/DC600A CM4371

0 Review(s)

344.84د.إ (Tax included)

SKU: 324633899717

Product Highlights

Buy Now
Add to Wishlist
Compare
SKU 324633899717 Category

Description

Description

  • About repair and calibration : Please contact your local authorized distributor before contacting us.
    measurement items: AC/DC current, AC/DC voltage, frequency, conduction, resistance, diode test, capacitance, electrometer, DC power, temperature (K thermocouple option)
    current measurement range: 20.00A/600.0A (.3%rdg.8dgt.)Style: Thick Joe (600A) Pattern (type): The main body
    professional work is quickly adjusted by adjusting the tough clamp meter
    1.AC/DC automatic
    discriminant rotary switch to “current measurement” and “voltage measurement”, and the AC/DC current is automatically determined and measured. Even in mixed AC/DC locations, the rotary switch does not need to be switched, thereby preventing measurement errors.
    2.INRUSH (inrush current) measurement
    It automatically detects and measures the inrush current generation period, so it can be measured more accurately than a clamp meter with a typical 100ms fixed measurement.
    3.The strength of the hard-to-break jaw (current sensor part)
    CM4371 and CM4373 have been revised to improve the strength by reviewing the design of the jaw (current sensor section). The number of openings and closings has been guaranteed from 10,000 to 30,000 times. This makes it possible to use it for longer.
    The operating temperature range was expanded (-25 to 65 degrees Celsius) and the operating temperature range of CM4371 and CM4373 expanded to -25 degrees Celsius to 65 degrees Celsius, compared to the operating temperature range (0 to 40 degrees Celsius) of conventional products (3285-20)
    improved durability. This allows it to be used even under freezing and high temperature conditions.
    5. Product design based on operability and convenience,
    design The CM4371 and CM4373 are product designs and designs that enhance operability and convenience based on customer needs, in order to require customers around the world to use made-in-Japan products developed and produced in the land of Shinshu Ueda. The rotary switch of the
    body is designed so that it can be operated with one hand while wearing work gloves. In addition, the white backlight is equipped with a white backlight so that the measured value can be seen firmly even in the dark, and a wide viewing angle display so that the measured value can be read from any angle.
    6.We have acquired the international protection grade of dust-proof and waterproof (IP54
    ) IP54, which is an international protection grade of dust-proof and waterproof. It can maintain measurement function even with dust and water droplets such as sand and dust (without acquiring the conventional product 3285-20).
    (Current Sensor Division) has ip50
    7.Measurement category of CAT IV 600V, and the safety use of measuring instruments
    the measurement target is expanded, and the safety level standards are classified as measurement categories by CAT II to CAT IV according to the location used. The larger the number, the more you can measure.
    the measurement category of the conventional product 3285-20 was CAT III 600V, whereas CM4371 and CM4373 were CAT IV 600V. As a result, it is now possible to safely measure retractable wires and distribution boards up to 600V of ground voltage.
    8.High voltage measurement of DIRECT current is possible
    , while the conventional product 3285-20 has a measurable DC voltage of up to 600V, the CM4371 and CM4373 can measure up to 1700V. This enables us to check the open voltage of solar power generation facilities where the needs are increasing.





Additional information

Brand

Hioki Electric
MPN

CM4371
