HIOKI Digital Multimeter

Overview

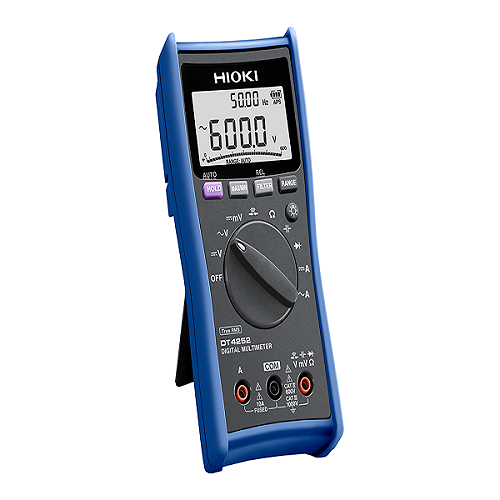

The Hioki DT4200 Digital Multimeter Series consist of a complete lineup of 9 models ranging from professional to industrial to pocket meters, delivering a super fast response rate and safety features that take electrical testing to a higher level. The DT4252 is a digital multimeter designed specifically for general purpose testing, with ?0.3% DC V accuracy, direct current input and wide 40 Hz to 1kHz bandwidth.

Specifications

DC Voltage range	600.0 mV to 1000 V, 5 ranges Basic accuracy: ?0.3 % rdg. ?5 dgt.
AC Voltage range	6.000 V to 1000 V, 4 ranges, Frequency characteristics: 40 Hz – 1 kHz Basic accuracy 40 – 500 Hz : ?0.9 % rdg. ?3 dgt. (True RMS, crest factor 3)
AUTO AC/DCV	N/A
Resistance range	600.0 ? to 60.00 M?, 6 ranges, Basic accuracy: ?0.7 % rdg. ?5 dgt.
DC Current range	6.000 A / 10.00 A, 2 ranges, Basic accuracy: ?0.9 % rdg. ?5 dgt.
AC Current range	6.000 A / 10.00 A, 2 ranges, Basic accuracy 40 – 500 Hz : ?1.4 % rdg. ?3 dgt. (True RMS, crest factor 3, 40 Hz to 1 kHz)
AC Current range (use with Clamp on probes)	N/A
Voltage detection (50/60 Hz)	N/A
Capacitance range	1.000 ?F to 10.00 mF, 5 ranges, Basic accuracy: ?1.9 % rdg. ?5 dgt.
Frequency range	AC V, AC A measurement: 99.99 Hz (5 Hz or more) to 9.999 kHz, 3 ranges, 99.99 kHz (only for AC V) Basic accuracy: ?0.1 % rdg. ?1 dgt.
Continuity check	Continuity threshold [ON]: 25 ? or less (Indicate buzzer sound, red LED), [OFF]: 245 ? or more Response time: 0.5 ms or more
Diode test	Open terminal voltage: 5.0 V or less, Testing current 0.5 mA or less, Threshold of forward voltage: 0.15 V to 1.5 V
Other functions	Filter function, display value hold, auto hold, MAX/MIN/Average value display, relative value display, auto-power save, USB communication (option)

Shipping Info

Order by 2PM to get delivered next working day! We use 24 hours service with carriers in most cases so that you can get your order delivered on time.

There is £4.99 charge for delivery under £50 Orders. Additional charges will be imposed by our couriers for delivery to remote area, a surcharge may be levied to cover carriage to these areas.

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “HIOKI Digital Multimeter”

د.إ950.00

42 people are viewing this product right now

Features

The DT4252, which is part of Hioki?s DT4250 series of standard digital multimeters, packs a broad range of measurement capability into a single package.

– DC current?6.000A / 10.00A
– AC current?6.000A / 10.00A

Description

Overview

Specifications

DC Voltage range	600.0 mV to 1000 V, 5 ranges Basic accuracy: ?0.3 % rdg. ?5 dgt.
AC Voltage range	6.000 V to 1000 V, 4 ranges, Frequency characteristics: 40 Hz – 1 kHz Basic accuracy 40 – 500 Hz : ?0.9 % rdg. ?3 dgt. (True RMS, crest factor 3)
AUTO AC/DCV	N/A
Resistance range	600.0 ? to 60.00 M?, 6 ranges, Basic accuracy: ?0.7 % rdg. ?5 dgt.
DC Current range	6.000 A / 10.00 A, 2 ranges, Basic accuracy: ?0.9 % rdg. ?5 dgt.
AC Current range	6.000 A / 10.00 A, 2 ranges, Basic accuracy 40 – 500 Hz : ?1.4 % rdg. ?3 dgt. (True RMS, crest factor 3, 40 Hz to 1 kHz)
AC Current range (use with Clamp on probes)	N/A
Voltage detection (50/60 Hz)	N/A
Capacitance range	1.000 ?F to 10.00 mF, 5 ranges, Basic accuracy: ?1.9 % rdg. ?5 dgt.
Frequency range	AC V, AC A measurement: 99.99 Hz (5 Hz or more) to 9.999 kHz, 3 ranges, 99.99 kHz (only for AC V) Basic accuracy: ?0.1 % rdg. ?1 dgt.
Continuity check	Continuity threshold [ON]: 25 ? or less (Indicate buzzer sound, red LED), [OFF]: 245 ? or more Response time: 0.5 ms or more
Diode test	Open terminal voltage: 5.0 V or less, Testing current 0.5 mA or less, Threshold of forward voltage: 0.15 V to 1.5 V
Other functions	Filter function, display value hold, auto hold, MAX/MIN/Average value display, relative value display, auto-power save, USB communication (option)
