GREENLEE NETcat Pro (POP) NC-500 Structured Wiring Troubleshooter

Specifications:

Dimensions: 3.3″ x 1.4″ x 6.7″.
Weight: 0.45 lb. (200 g).
Power Requirements: 9V Alkaline battery (PP3)
User Interface Display LCD: Dot Pixels: 128 x 128 dots.
Backlight: White LED.
Buttons: LCD touch-screen, Single momentary contact push button.

Features:

Touch screen display with contrast adjustment and backlight.
Tests shielded twisted pair (STP) unshielded twisted pair (UTP) and coaxial cables.
0-2000 foot cable length via TDR.
Generate four distinct, precision tones for tracing low-loss cables like Cat 5.
Identifies active network devices (PC or Hub) on 10/100 Base-T networks.
Displays network device capabilities.
Patch cable and remote jack wire-map.
Detects shorts, opens, reversed, crossed and split pairs.
Office identification using remote ID units.
Troubleshoots and verifies a wide range of networks.
Graphical touch-screen display.
Remote jack ID and verification.
Operates on a single 9V battery, with low battery indicator.
Pulsed time domain reflectometer (TDR) shows length of all pairs.
Compatible with Greenlee precision digital probes.

Order by 2PM to get delivered next working day! We use 24 hours service with carriers in most cases so that you can get your order delivered on time.

There is £4.99 charge for delivery under £50 Orders. Additional charges will be imposed by our couriers for delivery to remote area, a surcharge may be levied to cover carriage to these areas.

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “GREENLEE NETcat Pro (POP) NC-500 Structured Wiring Troubleshooter”

GREENLEE NETcat Pro (POP) NC-500 Structured Wiring Troubleshooter

د.إ1,290.00

29 people are viewing this product right now

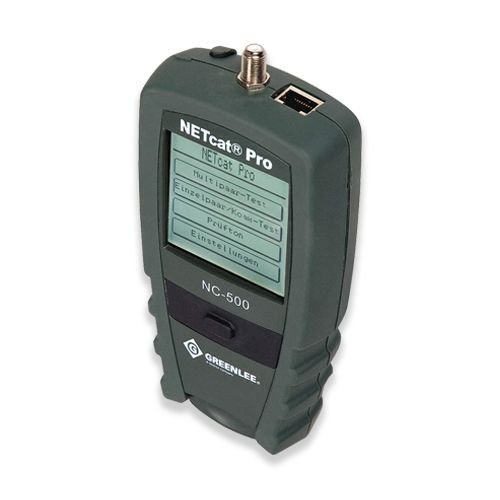

The NETcat? Pro is a digital tool for fast, accurate checking of cables, wiring and network service. Operated using a back-lit touch screen display, the Pro not only tests wiring continuity and proper pair allocation, but measures the length of cables and determines if network service is available. When used with the NC-510 Accessory Kit containing seven (7) expansion remote test modules, the NETcat Pro can uniquely test coax or twisted pair jacks from a central location eight (8) at a time. A wide range of tracing tone options makes it easy to track and identify high performance Category 5/6/7 wiring, and the tracing tones are compatible with Greenlee’s 200XP noise-immune tone probe. Using either a fingertip or the built-in stylus, the screen can be used to control and display a range of tests from fault finding to TDR length measurement. The display can be set to English, Spanish, German or French language.

Description

Specifications:

Dimensions: 3.3″ x 1.4″ x 6.7″.
Weight: 0.45 lb. (200 g).
Power Requirements: 9V Alkaline battery (PP3)
User Interface Display LCD: Dot Pixels: 128 x 128 dots.
Backlight: White LED.
Buttons: LCD touch-screen, Single momentary contact push button.

Features:

Touch screen display with contrast adjustment and backlight.
Tests shielded twisted pair (STP) unshielded twisted pair (UTP) and coaxial cables.
0-2000 foot cable length via TDR.
Generate four distinct, precision tones for tracing low-loss cables like Cat 5.
Identifies active network devices (PC or Hub) on 10/100 Base-T networks.
Displays network device capabilities.
Patch cable and remote jack wire-map.
Detects shorts, opens, reversed, crossed and split pairs.
Office identification using remote ID units.
Troubleshoots and verifies a wide range of networks.
Graphical touch-screen display.
Remote jack ID and verification.
Operates on a single 9V battery, with low battery indicator.
Pulsed time domain reflectometer (TDR) shows length of all pairs.
Compatible with Greenlee precision digital probes.
