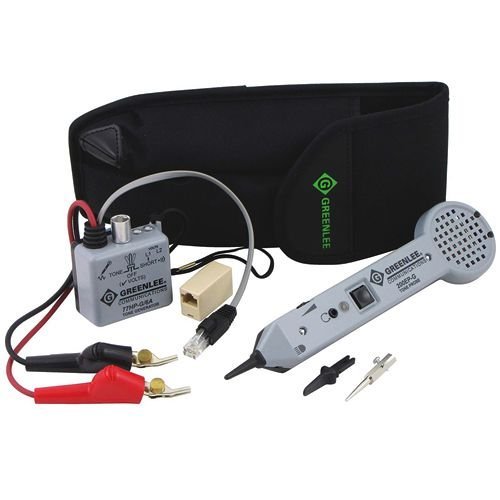

GREENLEE 701K Probe and Tone

Features:

Consisting of the 77HP-G/6A Tone Generator and the 200EP-G Tone Probe, this kit features adjustable volume control, continuity & polarity LED, external warble select, test telephone port, headset jack, LED flashlight, RJ11 & RJ45 sockets, LED signal indicator, short circuit LED/Beeper, replaceable tip and ABN connector clips.

Specifications for 77MHP-G

Talk Battery	4.6 VDC
Resistive Short Visual Indication	<10 k ohms
Resistive Short Audio Indication	<200 ohms
Output Power into 600 ohms	+10 dBm
Voltage Protection at 600 ohms	150 VDC
Output Frequency (Nominal)	Alternating-890/960 Hz, Warbling-Slow: 1.3Hz/Fast: 6Hz

Specifications for 77MHP-G

Battery	9VDC
Plastic Tip Resistance	300 Ohms
Metal Tip Resistance	0 Ohms
Input impedance l	100M Ohms
Gain (nominal)	30 dB
Operating/Storage Temperature	0? C to 50? C (30? F to 122? F)
