Description
Forane® 407C is a blend of three HFC refrigerants that works just like R-22 in your air conditioning systems, but without damaging the ozone layer. You can use it for new or existing R-22 systems, such as residential and commercial air conditioners and non-flooded evaporator chillers. Just remember to change to POE oil when you switch to Forane® 407C, because it does not get along with mineral oil. Also, be aware that Forane® 407C has a high glide, which could affect its performance in flooded evaporators.
SPECIFICATIONS
(Meets AHRI 700-2017 Specifications)
| Maximum (unless otherwise noted) | Tolerance | |
|---|---|---|
| Difluoromethane (HFC-32), wt % | 23.0 (nominal) | ± 2.0 % |
| Pentafluoroethane (HFC-125), wt % | 25.0 (nominal) | ± 2.0 % |
| 1,1,1,2-Tetrafluoroethane (HFC-134a), wt % | 52.0 (nominal) | ± 2.0 % |
| Air and Other Non-condensable Gases, vol % | 1.5 | |
| Volatile Impurities, wt % | 0.5 | |
| High Boiling Residue, vol % | 0.01 | |
| Moisture (H2O), ppm by wt | 10 | |
| Acidity, ppm by wt (as HCl) | 1.0 | |
| Chloride, no visible turbidity (indicates about 3 ppm) |
Pass | |
| Particulates / solids (visually clean to pass) | Pass |
Properties
| Appearance | Colorless liquefied gas |
| Odor | Faint, ether-like odor |
| Molecular Mass (g/mole of blend) | 86.20 |
| Bubble Point at 1 atm | -46.5°F / -43.6°C |
| Dew Point at 1 atm | -33.9°F / -36.6°C |
| Flammable Limits (LFL, UFL), vol % (1 atm, 25°C) | NA / NA |
| ANSI/ASHRAE Standard 34 Safety Group Classification |
A1 |
| Ozone Depletion Potential (ODP) (CFC-11 = 1.0) | 0 |
| Global Warming Potential (GWP1) (CO2 = 1.0) | 1,625 |
Order by 2PM to get delivered next working day! We use 24 hours service with carriers in most cases so that you can get your order delivered on time.
There is £4.99 charge for delivery under £50 Orders. Additional charges will be imposed by our couriers for delivery to remote area, a surcharge may be levied to cover carriage to these areas.
There is £4.99 charge for delivery under £50 Orders. Additional charges will be imposed by our couriers for delivery to remote area, a surcharge may be levied to cover carriage to these areas.

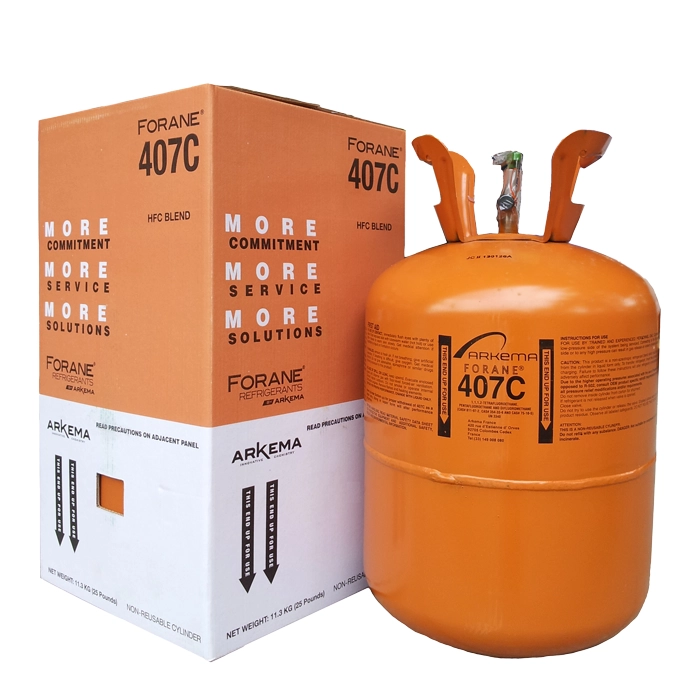

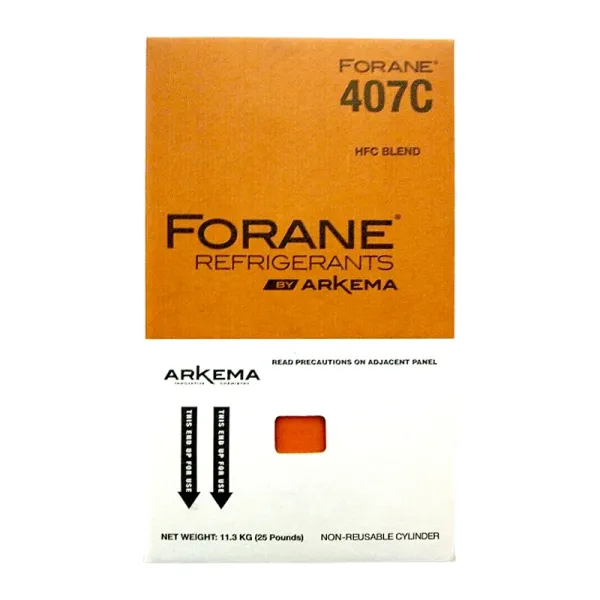

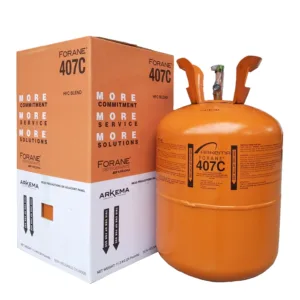

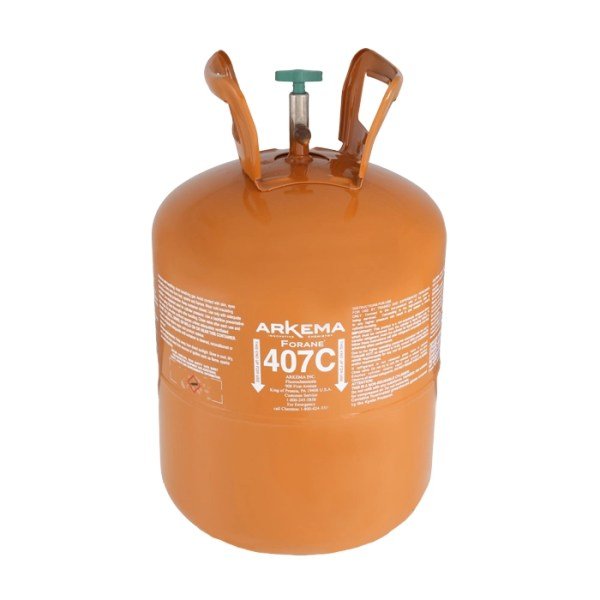

Forane® R-407C Refrigerant
د.إ490.00
48 people are viewing this product right now
A zero ODP zeotropic HFC blend which closely matches the properties of R-22. It can be used in many A/C and refrigeration applications in new or retrofitted R-22 installations. Polyolester lubricants should be used with R-407C due to immiscibility with mineral oil or alkylbenzene.
Description
Forane® 407C is a blend of three HFC refrigerants that works just like R-22 in your air conditioning systems, but without damaging the ozone layer. You can use it for new or existing R-22 systems, such as residential and commercial air conditioners and non-flooded evaporator chillers. Just remember to change to POE oil when you switch to Forane® 407C, because it does not get along with mineral oil. Also, be aware that Forane® 407C has a high glide, which could affect its performance in flooded evaporators.
SPECIFICATIONS
(Meets AHRI 700-2017 Specifications)
| Maximum (unless otherwise noted) | Tolerance | |
|---|---|---|
| Difluoromethane (HFC-32), wt % | 23.0 (nominal) | ± 2.0 % |
| Pentafluoroethane (HFC-125), wt % | 25.0 (nominal) | ± 2.0 % |
| 1,1,1,2-Tetrafluoroethane (HFC-134a), wt % | 52.0 (nominal) | ± 2.0 % |
| Air and Other Non-condensable Gases, vol % | 1.5 | |
| Volatile Impurities, wt % | 0.5 | |
| High Boiling Residue, vol % | 0.01 | |
| Moisture (H2O), ppm by wt | 10 | |
| Acidity, ppm by wt (as HCl) | 1.0 | |
| Chloride, no visible turbidity (indicates about 3 ppm) |
Pass | |
| Particulates / solids (visually clean to pass) | Pass |
Properties
| Appearance | Colorless liquefied gas |
| Odor | Faint, ether-like odor |
| Molecular Mass (g/mole of blend) | 86.20 |
| Bubble Point at 1 atm | -46.5°F / -43.6°C |
| Dew Point at 1 atm | -33.9°F / -36.6°C |
| Flammable Limits (LFL, UFL), vol % (1 atm, 25°C) | NA / NA |
| ANSI/ASHRAE Standard 34 Safety Group Classification |
A1 |
| Ozone Depletion Potential (ODP) (CFC-11 = 1.0) | 0 |
| Global Warming Potential (GWP1) (CO2 = 1.0) | 1,625 |
Order by 2PM to get delivered next working day! We use 24 hours service with carriers in most cases so that you can get your order delivered on time.
There is £4.99 charge for delivery under £50 Orders. Additional charges will be imposed by our couriers for delivery to remote area, a surcharge may be levied to cover carriage to these areas.
There is £4.99 charge for delivery under £50 Orders. Additional charges will be imposed by our couriers for delivery to remote area, a surcharge may be levied to cover carriage to these areas.
Reviews
There are no reviews yet.
In stock
