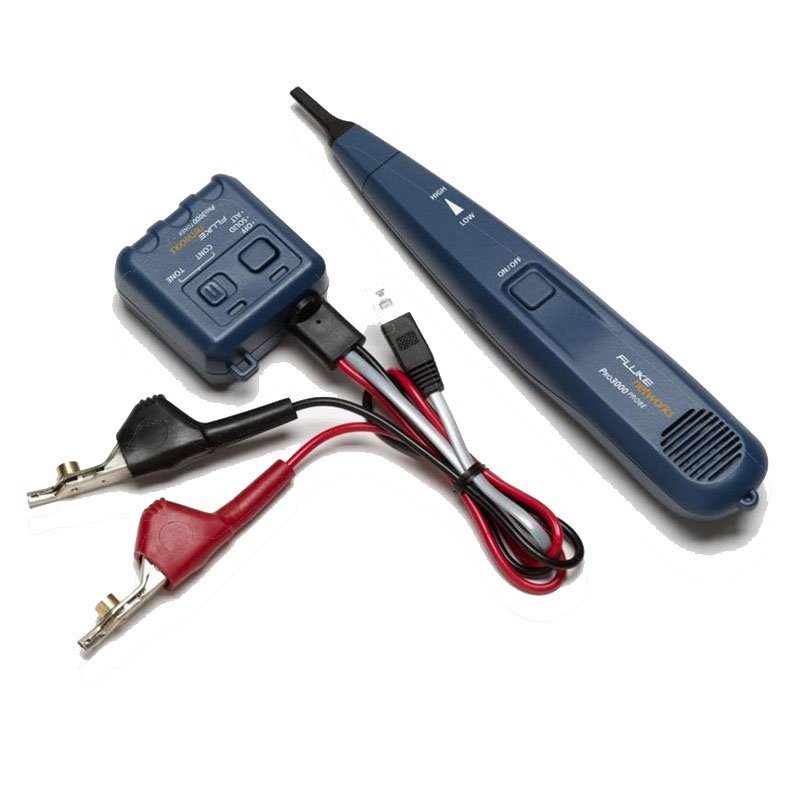

Fluke Networks 26000900 Pro3000 Tone Generator and Probe Kit

Brand

Fluke Networks

Model

26000900

Spec

Specifications

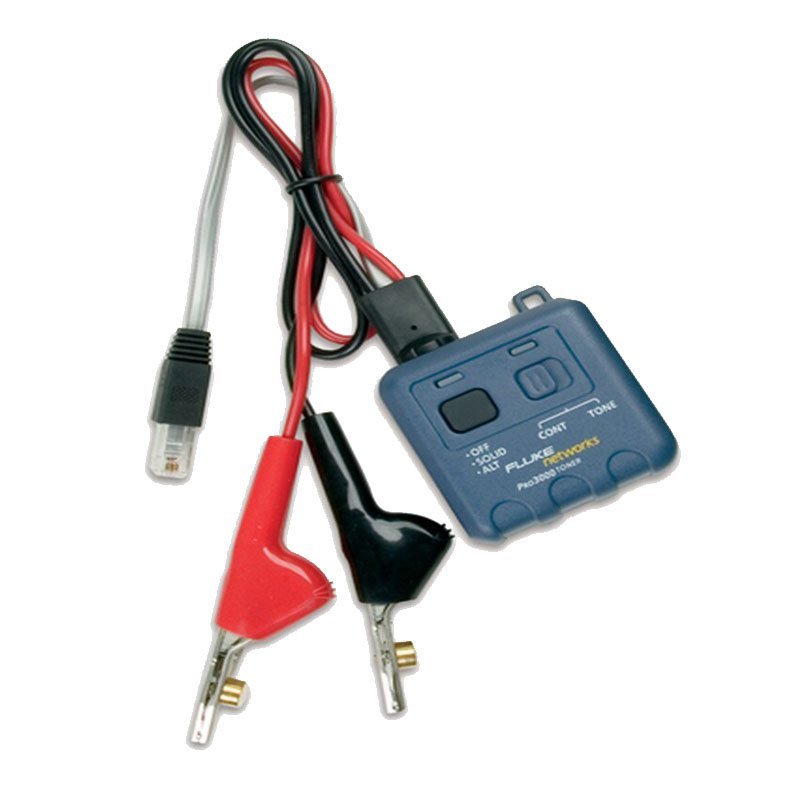

Pro3000 Analog Toner Specifications
User interface:
A slide switch selects Continuity or Tone Mode
Push-button switch selects SOLID, ALT or OFF
Tone mode LED
Continuity/Polarity LED
Solid Frequency: 1000 Hz nominal
Alternating Frequency: 1000/1500 Hz nominal
Over Voltage Protection: 60 Vdc in Toner/Polarity Mode
Output Power in Tone Mode: 8 dBm into 600 ohms
Output Voltage Level in Continuity Mode: 8 Vdc with a fresh battery
Battery: 9V alkaline
Temperature: Operating: -20? C to 60? C, Storage: -40? C to 70? CPro3000 Analog Probe specifications
User interface:
ON/OFF pushbutton
Volume dial
Replaceable tip
3.5 mm earphone jack
Battery: 9V alkaline
Temperature: Operating: -20? C to 60? C, Storage: -40? C to 70? C

Features

Features

Use the SmartZone capability of the Pro3000 Tone Generator to identify the right pair.

When touching the wires together and momentarily shorting the far end of a cable pair, the SmartZone technology will change the cadence of the tone generated.

This tone change you hear through the probe positively verifies the correct wire pair. SmartZone provides five distinct tones for exact pair identification.

Loud large speaker amplifies tone through walls, enclosure, wood or plaster

Easy-to-use adjustable volume control dial

“Quick-twist” tip for easy replacement

Free spare tip inside Pro3000 Tone and Probe Kit
