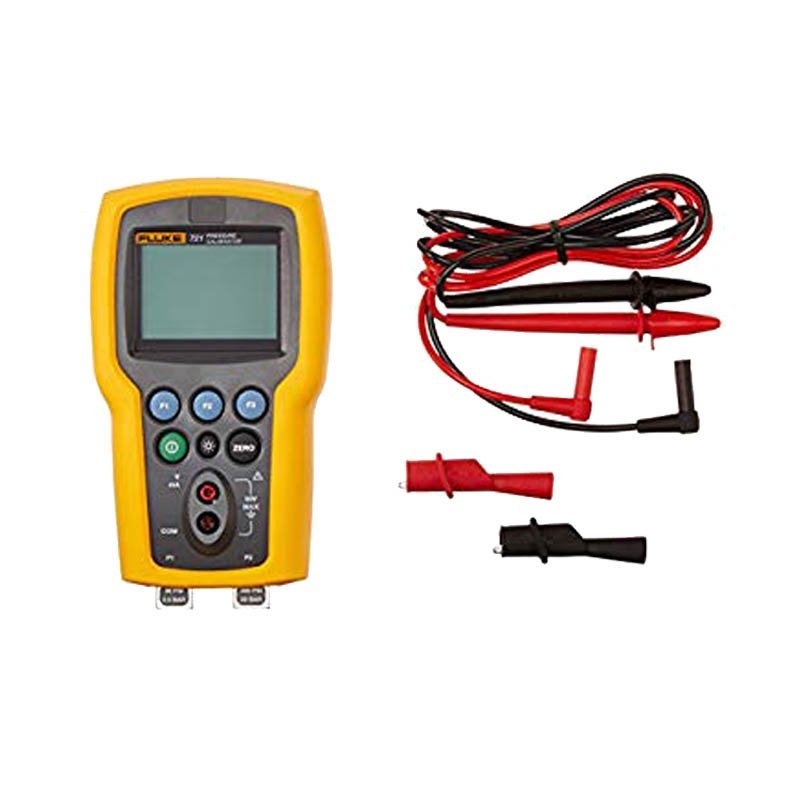

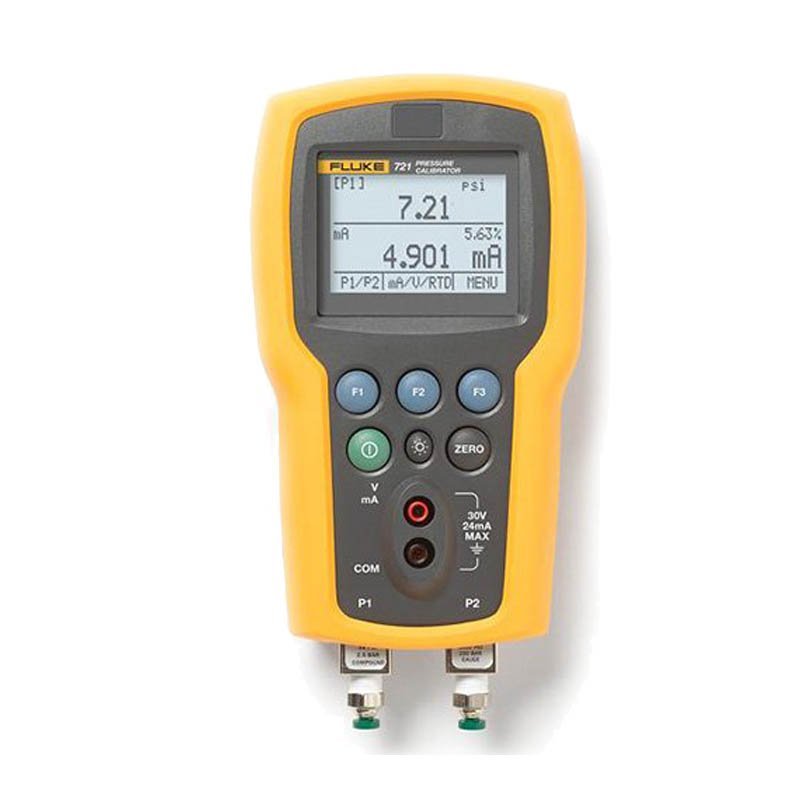

Fluke 721-1650 Dual Sensor Pressure Calibrator, 16 PSIG, 5000 PSIG, 2.3″ x 7.9″ x 4.3″

The Fluke 721 Precision Pressure Calibrator with dual isolated pressure sensors is designed for gas flow calibration (custody transfer) applications, enabling users to take simultaneous static and differential pressure measurements with a single tool. The 721 can be configured by selecting either a 16 PSI (1.1 bar) or 36 PSI (2.48 bar) low-pressure sensor and adding any of 7 high-pressure ranges: 100, 300, 500, 1000, 1500, 3000, 5000 psi (6, 9, 20, 24.5, 69, 103.4, 200, 345 bar). Users can add temperature measurement with the separately available Pt-100 RTD probe Fluke-720RTD ( 796-1646?).

The ideal tool for gas custody transfer applications is the Fluke 721 Precision Pressure Calibrator. With dual isolated pressure sensors, it allows you to take simultaneous static and differential pressure measurements with a single tool.

Fluke 721-1650 Dual Sensor Pressure Calibrator, 16 PSIG, 5000 PSIG, 2.3″ x 7.9″ x 4.3″

Features

• Two isolated, stainless steel, pressure sensors with 0.025% f.s. accuracy
• Can be configured by selecting either a 16 psi (1.1 bar) or 36 psi (2.48 bar) low-pressure sensor and then adding your choice of 7 high-pressure ranges
• External pressure module connection supports all pressure modules (29 ranges) for even more measurement capability
• Temperature-compensation ensures accuracy in field applications
• Pt100 RTD input for temperature measurement, accurate to 0.1?C (0.2?F) (Requires optional RTD probe sold separately)
• Measure 4-20 mA signals
• Internal 24 V Loop Power Supply can power a transmitter under test
• Measure up to 30 V DC
• Large graphic style LCD with backlight can be configured to display up to 3 inputs simultaneously (i.e. pressure 1, pressure 2, and RTD or any combination of inputs)
• Pressure displayed in the user’s choice of 19 engineering units
• Switch test on both pressure inputs, or external pressure module
• Operating mode layers support simple measurements to complex applications
• Up to five frequently used setups can be stored; the last setup automatically recalled on power-up
• % error and damping functions
