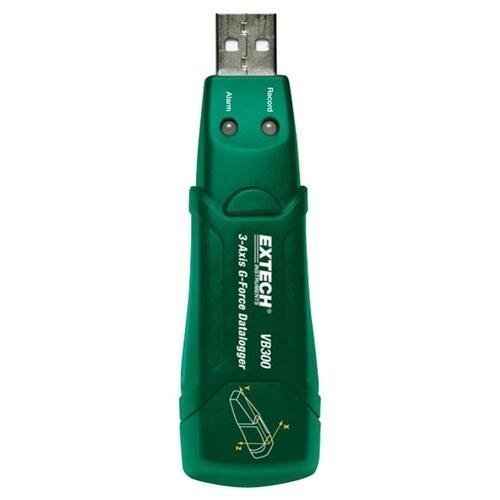

Extech VB300: 3-Axis Vibration Datalogger

Description

The VB300 is a G-Force datalogger which records and times 3-axis shock and vibration (acceleration) readings over its ±18g measurement range. This device will record 3-axis g-force and related peaks to provide a history of shock and vibration conditions. Complete with Magnetized/Bolt-on Mounting Base, 3.6V Lithium battery and Windows compatible analysis software.

• Built-in 3-axis accelerometers record the time when shock occurs
• Real time FFT Frequency and Time-Domain Vibration Analysis
• Record storage, transport or operational data over time
• USB interface for easy set-up and data download
• Datalogs 112028 Motion Detection samples per axis, or 168042 Normal samples
• Selectable X-, Y-, Z-axis or any combination (via software)
• Selectable data sampling rate: 50ms to 24 hours
• Manual and Programmable start modes
• User-programmable alarm threshold
• Long battery life
• Complete with Magnetized/Bolt-on Mounting Base, 3.6V Lithium battery and Windows® compatible analysis software
