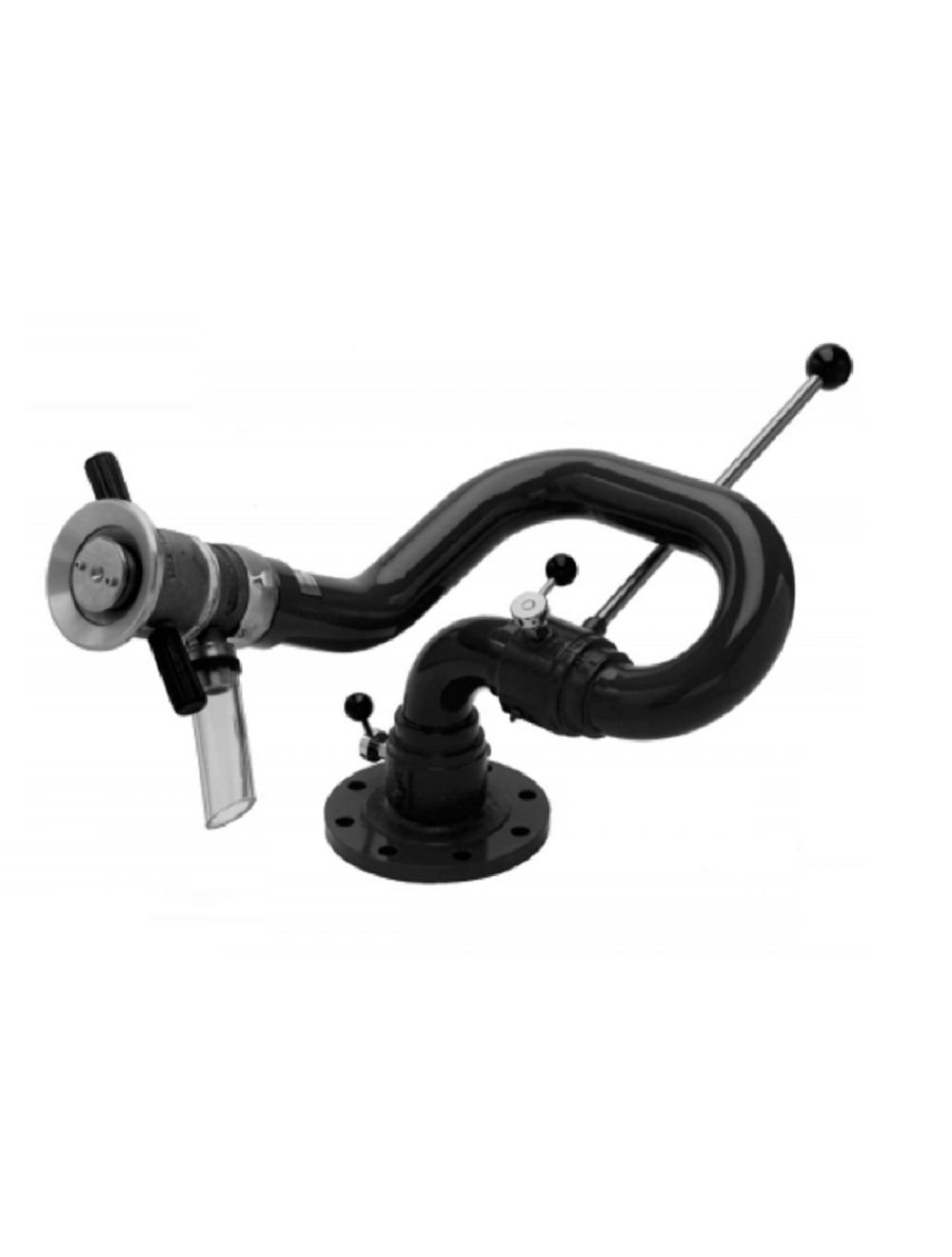

AKRON Apollo Single Inlet Portable Monitor and 5″ Storz Ground Base only – 3414

AKRON Apollo Monitors offer a variety of models with features to fit the ever-increasing demands of the fire service with a durable, dependable and stable monitor.

Features

• 360? rotation when mounted in the deck mode, 180? in the portable mode
• Vertical travel from 90? above to 15? below horizontal, with built-in 35? safety stop
• 3″ waterway with cast-in turning vanes for efficient flow
• Direct mount – a combination 3″ NPT female and 3″ flange
• Carbide spikes for extended wear (Spike covers optional)
• Available as portable only or deck mount only – must specify

Specifications

• Portable ground base monitor with a single 4″, 4 1/2″, or 5″ thread or 4″ or 5″ storz swivel inlet.
• The base will have folding legs with no locking mechanism required to keep legs in place.
• The monitor shall have handwheel elevation control from 90? above to 15? below horizontal with an elevation safety stop at 35? above horizontal; 360? continuous rotation when in the deck mode flowing 1250 gpm and 180? in the portable mode flowing 1000 gpm; horizontal locking mechanism and stops to prevent accidental over-rotation; a full 3″ waterway with cast-in turning vanes in each elbow.
• A 3″ NPT & 3″ flange combination deck mount shall be supplied (3416 only).
• The monitor shall also include a pressure gauge, carry handle, grease fittings, safety chain, hardened steel ground spikes and Pyrolite? construction.
• Deck height not to exceed 12″, base weight: 38 1/2 lbs., liftoff weight: 23 lbs
