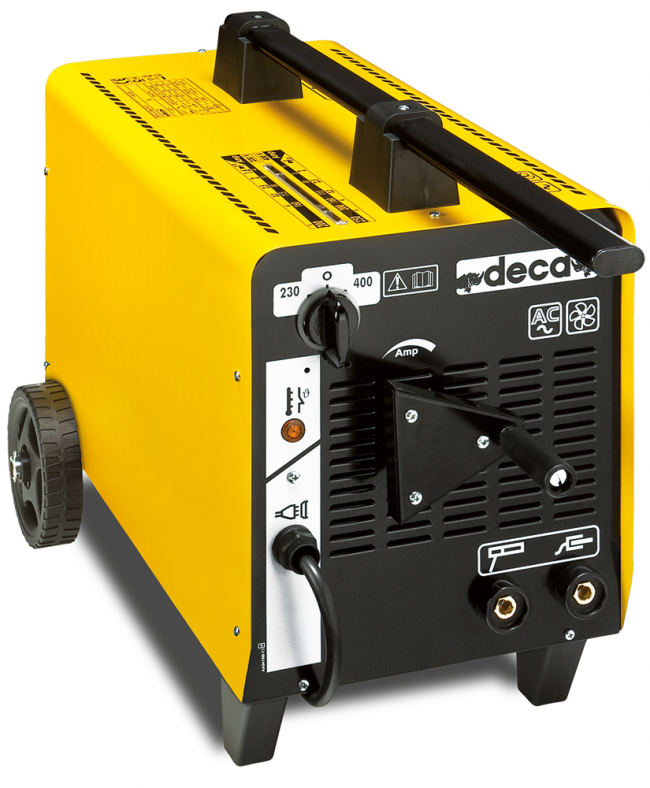

Electrode welder in alternating current 1Ph – 230/400V 50/60 Hz Continuous setting of welding current; overload protection

The electro mechanical generators for welding of the T-ARC line are the classic offer of robust and durable systems. They are the ideal choice for craftsmen, blacksmiths and maintenance workers. They meet professional and specialist welding needs and are guaranteed by the LAB mark of excellence. Carefully designed and manufactured at our San Marino factories.

rutile coated electrodes on various metals:?steel, stainless steel, cast iron, etc. The power supply voltage is single-phase at 230/400 Volt.The T-ARC 525 LAB is easy to use:

Continuous regulation of the welding current.
Thermostatic protection.
Forced ventilation.

Code: 205300
Equipment:?power source only, DX 25 mm²

Features

Output selection:	no
Welding current range (Amp):	40 – 240A
Duty Cycle (Amp) (EN 60974-1 40?C):	220A – 8% 80A – 60%
Open circuit voltage (Volt):	44 – 54V
Input voltage (50/60 Hz):	1 Ph – 230/400V
Absorbed power 60% / Max:	2,5 / 7,5 kW
Fuse (Amp):	25/20A
ELETCTRODES?:	:
Rutile:	? 1,6 – 5,0 mm
Basic:	no
Output connection:	DX 25 mm²
Thermostatic Protection:	yes
Weight kg ?:	25
Dimensions (mm):	710 x 350 x 425
FEATURES:	:
Fan cooled:	yes
Stepless regulation:	yes
LOGISTIC INFO CODE:	205300
Barcode:	8011399031164
Package dimension, Wid.-Dep.-Height (mm):	595 x 275 x 350
Package weight kg:	26
Pieces for pallet:	16
