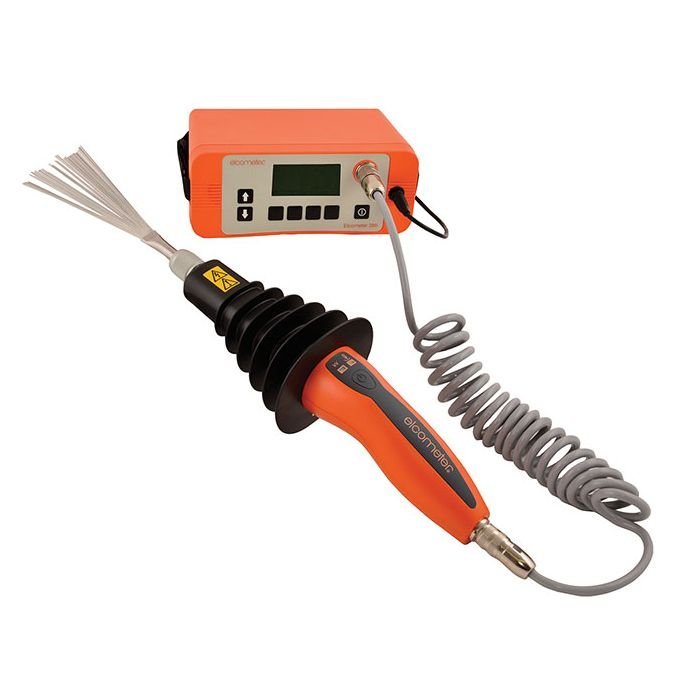

Elcometer 266 Holiday Detector

Description

• Dual safety switch on the handle to avoid accidental switch on (Grey/orange probe handles only)
• Internal Voltmeter/ Jeep tester ensures that the test voltage equals the selected voltage
• Visual and audible alarms, Bright LEDs on the handle, as well as a loud buzzer, clearly indicate when a holiday is detected

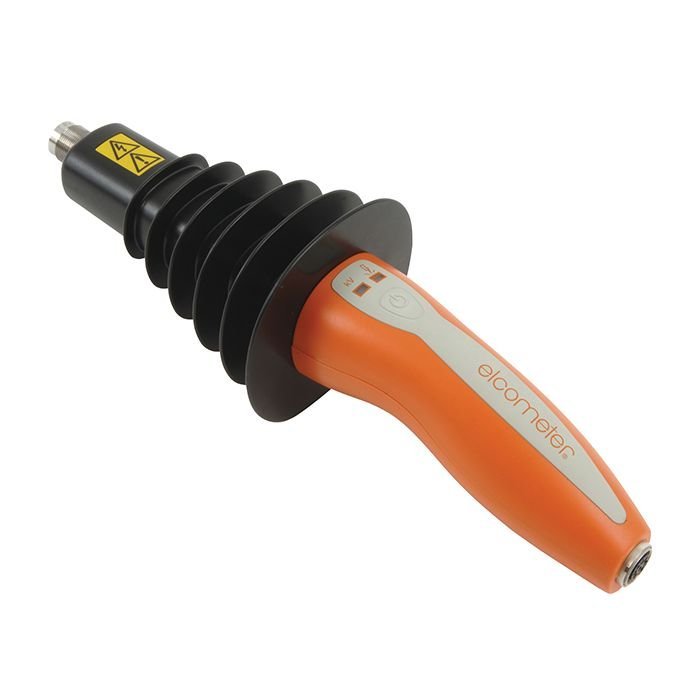

• To change the maximum voltage range, select a different handle; 5kV, 15kV or 30kV DC or 30kV DC continuous
• A wide range of probe brushes and rolling springs available

Voltage Calculator

Automatically sets the correct voltage from your coating thickness value. No need to use lookup tables. Enter the test standard and the coating thickness and the gauge will automatically programme the correct voltage.

Adjustable Voltage

No need for screwdriver: 0.5kV – 1kV in 50V steps, 1kV to 30kV in 100V steps. Sensitivity to current can be manually preset or automatically adjusted by the gauge for partially conductive coatings.

Internal Voltmeter/ Jeep tester

Ensures that the test voltage equals the selected voltage. The closed loop system ensures that the generated test voltage is accurately measured and continuously controlled, regardless of climatic conditions.
