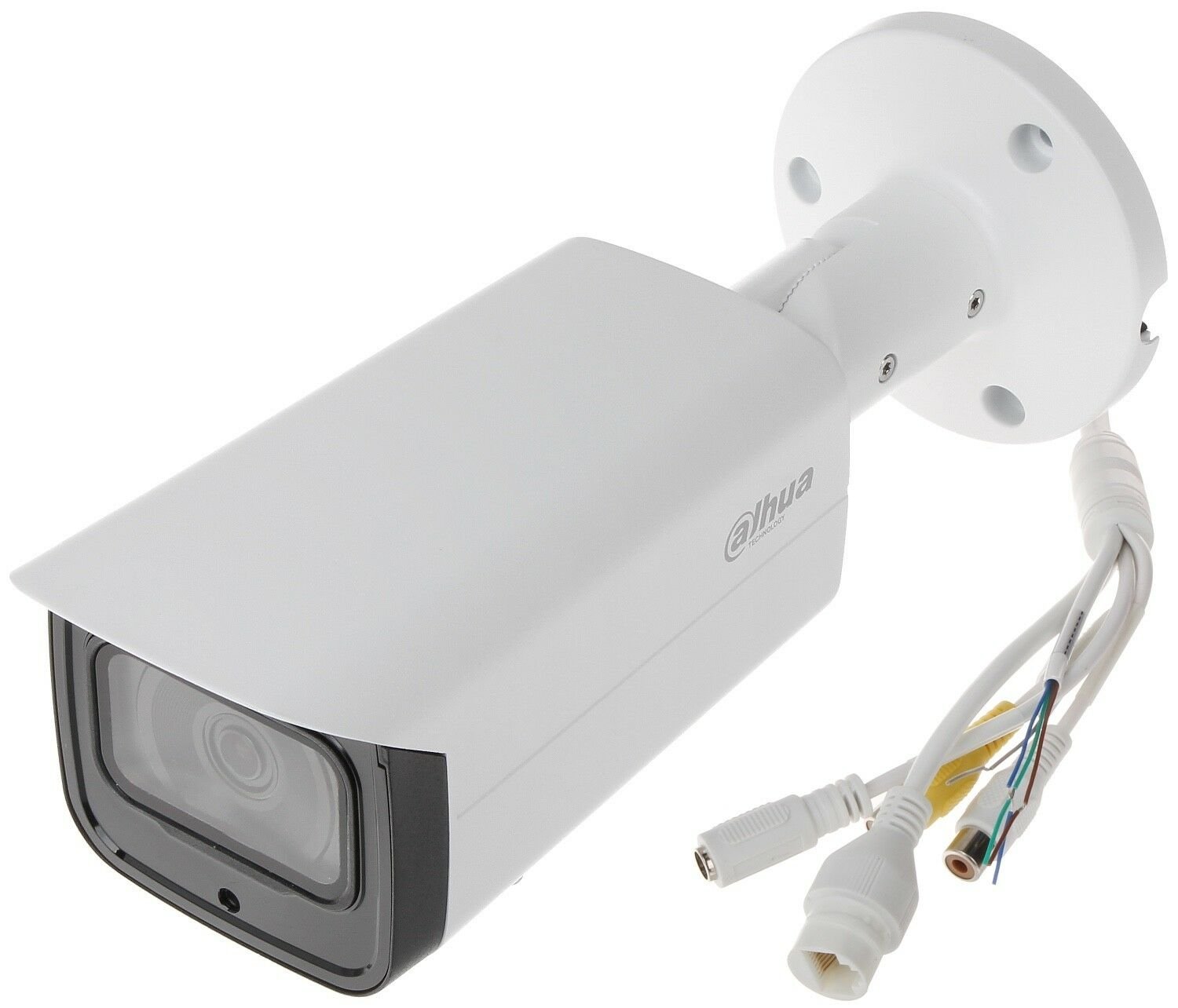

DAHUA Video Surveillance – IPC-HFW4431TP-ASE 4MP WDR IR Network Bullet Camera

Description

• 1/3″ 4MP progressive scan CMOS
• H.265&H.264 triple-stream encoding
• 25/30fps-4M(2688×1520)
• Smart Detection supported
• WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
• 3.6mm fixed lens
• Max. IR Distance 60m
• Micro SD memory slot (card not included)
• IP67, IK10, PoE                                                                            Specifications

Standard: TCP/IP

Sensor: 1/3″ Progressive Scan CMOS

Matrix size: 4.0 Mpx

Resolution:

2688 x 1520 – 4.0 Mpx

2560 x 1440 – 3.7 Mpx

2304 x 1296 – 3 Mpx

1920 x 1080 – 1080p

1280 x 1024 – 1.4 Mpx

1280 x 960 – 1.3 Mpx

1280 x 720 – 720p

Operation modes: Main and sub streams may be in any configuration

Main stream:

2688 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720

Sub stream 1:

704 x 576, 352 x 288

Sub stream 2:

1920 x 1080, 1280 x 720, 704 x 576, 352 x 288

Scanning system: Progressive

Lens: 3.6 mm

View angle: 83 °

Range of IR illumination: 60 m

S/N ratio: > 50 dB

Memory card slot: Micro SD memory cards up to 128GB support

Image compression method: H.265 / H.265+ / H.264 / H.264+ / MJPEG

Alarm inputs / outputs: 1 / 1

Audio: External microphone input

Audio output

Bi-directional audio streaming support

Audio detection

Bitrate:

24 kb/s~10240 kb/s – H.264

14 kb/s~9984 kb/s – H.265

Main stream frame rate: 20 fps – 6.3 Mpx, 25 fps – 5.3 Mpx

Network interface: 10/100 Base-T (RJ-45)

Network protocols: HTTP, HTTPS, TCP, IPv4/IPv6, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, QoS, UPnP, NTP, Bonjour, IEEE 802.1x, Multicast, ICMP, IGMP, SNMP

WEB Server:Built-in

Max. number of on-line users:20

WDR – 120 dB – Wide Dynamic Range

3D-DNR – Digital Noise Reduction

ROI – improve the quality of selected parts of image

ICR – Movable InfraRed filter

BLC/HLC – Back Light / High Light Compensation

Possibility to change the resolution, quality and bit rate

Motion Detection

Configurable Privacy Zones

Mirror – Mirror image

IVS analysis : crossing the line (tripwire), scene changing, intrusion, abandoned/missing object, face detection

Power supply: PoE (802.3af), ePoE, 12 V DC / 920 mA

Power consumption: ≤ 11 W

Mobile phones support

Housing: Compact – Metal / Plastic

Color: White / Black

Index of Protection: IP67

Vandal-proof: IK10

Operation temp: -30 °C ~ 60 °C

Weight: 0.87 kg

Dimensions: 244  x 79  x 76 mm
