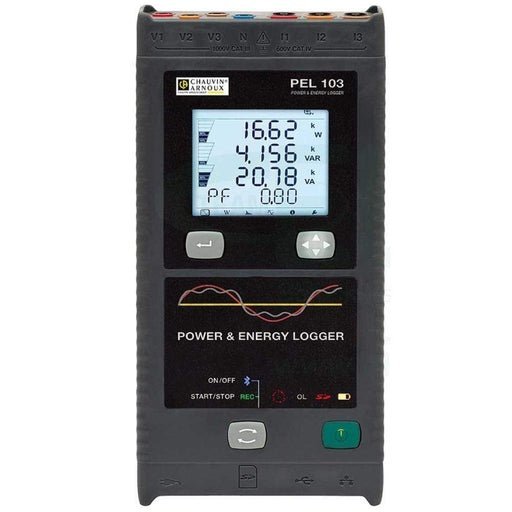

The PEL 103 is a low cost, simple to use, one, two (split phase) and three phase power/energy data logger. This product is ideal for electricians, engineers and contractors doing work in the area of building and system monitoring and upgrades, as well as residential and overall energy audits. All vital energy data is easily measured, recorded, and analyzed. Reports can be generated with confidence with minimal configuration time and effort (Standard and Customizable Reports supplied).
The instrument?s design enables it to be installed inside a load center panel (including the current sensors) allowing the door to close on most panels. The PEL 100 series offers all the essential functions for logging power/energy data from most electrical power networks in use today across the world (17 network set-ups provided). The PEL 100 series energy loggers measure and record three True RMS voltage inputs and current inputs, Watts, VARS, VA and Energy (kWh and kVA). Power Factor (PF), Displacement Power Factor (DPF), Crest Factor, Frequency and THD are calculated and recorded as well. Individual harmonic % information from 1 to the 50th harmonic are recorded at the operator?s choice. All variables are recorded and stored at a one second interval and on user selectable demand intervals from 1 to 60 minutes.

? Single-phase, split-phase and three-phase installations with or without a neutral, as well as other complex configurations.
? Implementation without cutting off the mains power supply
? BlueTooth, Ethernet and USB communication
? Automatic recognition of the sensors connected
? Recording on SD and SD-HC cards
? Real-time communication with a PC and analysis using PEL Transfer software

Standard Accessories Include
? 4 measurement leads (straight banana / straight banana ? 3 m long ?black)
? 4 crocodile clips (black)
? 1 SD card (2 GB)
? 1 set of rings andinserts (for ends of leads and current sensors)
? 1 mains cable
? 1 USB cable (Type A / Type B)
? 1 MultiFIX mounting systems
? 1 operating manual (on CD)
? 1 bag, 1 safety datasheet
? PEL Transfer PC software
? 1 quick start-up guide
? 1 SD-USB adapte

Important Note : Current clamps not included, please refer to product datasheet for more details
